Additional Attributes:
- GTIN: 00036584183815
- Intake Duration at .050 Inch Lift: 229
- Exhaust Duration at .050 inch Lift: 240
- Advertised Intake Duration: 264
- Advertised Exhaust Duration: 279
- Lobe Separation: 113
- Intake Valve Lift: 0.535
- Exhaust Valve Lift: 0.555
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Lifter Type: Hydraulic Roller Swinging Follower
- Engine Family: Ford 4.6L and 5.4L SOHC Modular 3 Valve 8 Cylinder (2004+)
- Amazon ASIN: B001O066YO
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- Camshaft Series: XFI SPR (Spring and Phaser Modes Required) Blower
- Usage: Street/Strip
- Cam Type: Hydraulic Roller Swinging Follower
- Grind Number: XE264PH-13
- Basic Operating RPM Range: 900-6,700
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 25 x 6 x 3 inches
PDF:

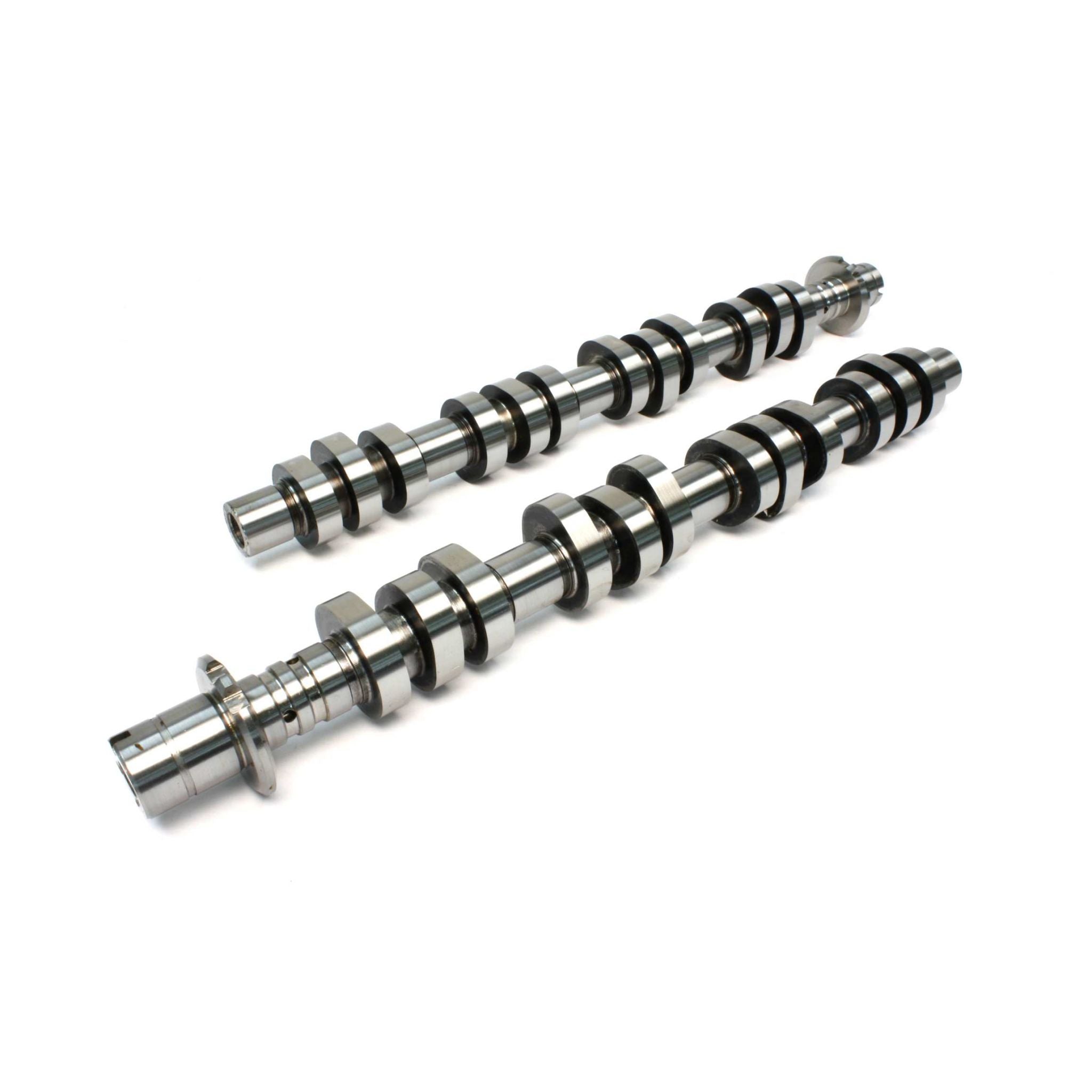

dddbebdc29809COMP Cams Camshaft Set F4.6 3V XE264Ph - 127450
