Additional Attributes:
- GTIN: 00036584082729
- Camshaft Series: Computer Controlled
- Usage: OEM
- Cam Type: Hydraulic Roller
- Grind Number: 254HR-12
- Basic Operating RPM Range: 700-4,800
- Intake Duration at .050 Inch Lift: 199
- Exhaust Duration at .050 inch Lift: 206
- Advertised Intake Duration: 254
- Advertised Exhaust Duration: 262
- Lobe Separation: 112
- Intake Valve Lift: 0.45
- Exhaust Valve Lift: 0.45
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Lifter Type: Hydraulic Roller
- Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
- Amazon ASIN: B000P5G7MU
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.93 x 2.83 x 2.59 inches
PDF:

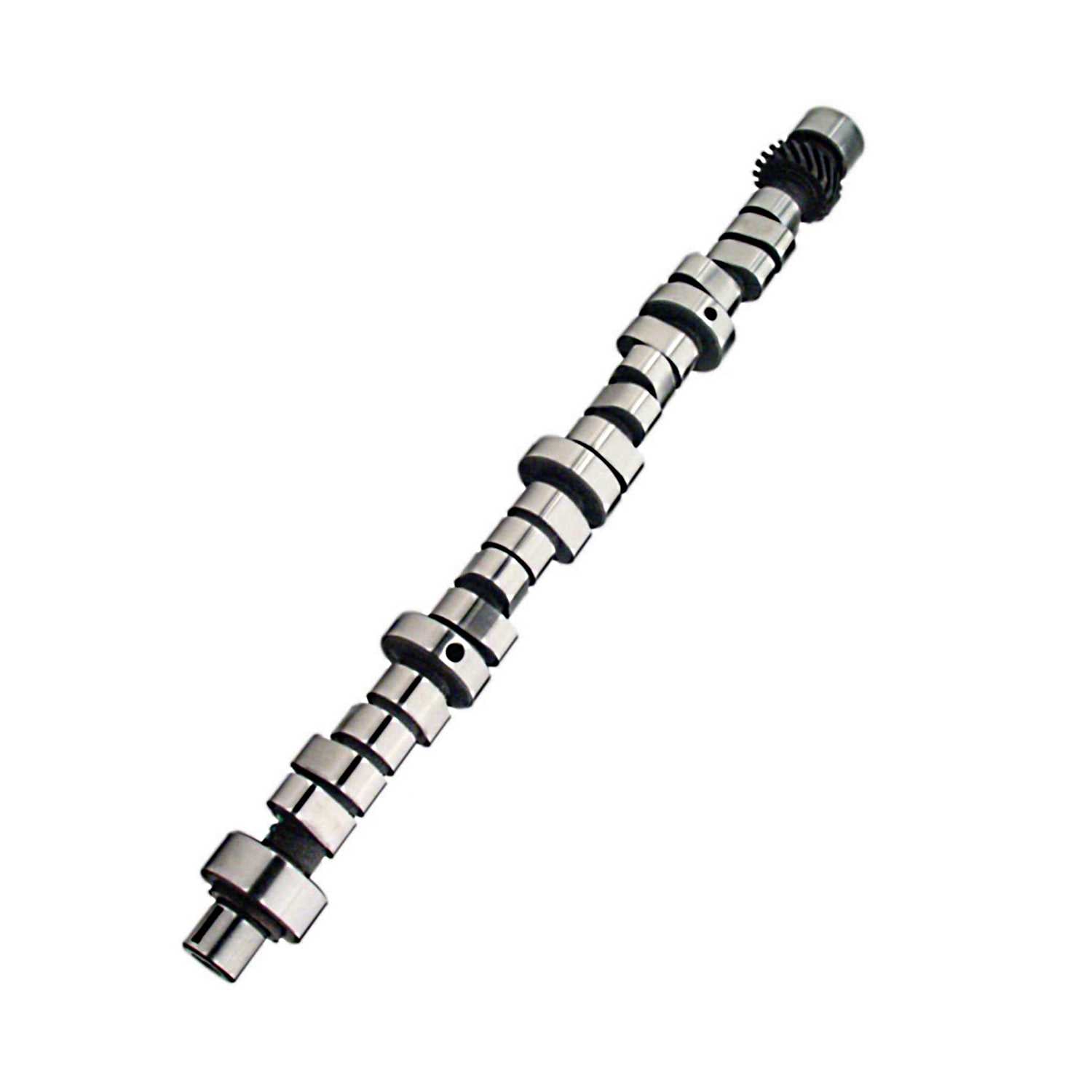

dddbebdc29809COMP Cams Camshaft CRS 254HR-12 - 20-618-9
