Additional Attributes:
- GTIN: 00036584500025
- Camshaft Series: High Energy
- Usage: Street/Performance
- Cam Type: Hydraulic Flat Tappet
- Grind Number: 252H
- Basic Operating RPM Range: 800-4,800
- Intake Duration at .050 Inch Lift: 206
- Exhaust Duration at .050 inch Lift: 206
- Advertised Intake Duration: 252
- Advertised Exhaust Duration: 252
- Lobe Separation: 110
- Intake Valve Lift: 0.46
- Exhaust Valve Lift: 0.46
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: Yes
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Cast Iron
- Engine Family: Chevrolet 396-454 c.i. 8 Cylinder (1967-1996)
- Cam and Lifter Kit Upgrade: CL11-202-3
- K-Kit Upgrade: K11-202-3
- Lifter Type: Hydraulic Flat Tappet
- SK-Kit Upgrade: SK11-202-3
- Amazon ASIN: B000P5G86U
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23.3 x 2.9 x 2.6 inches
PDF:

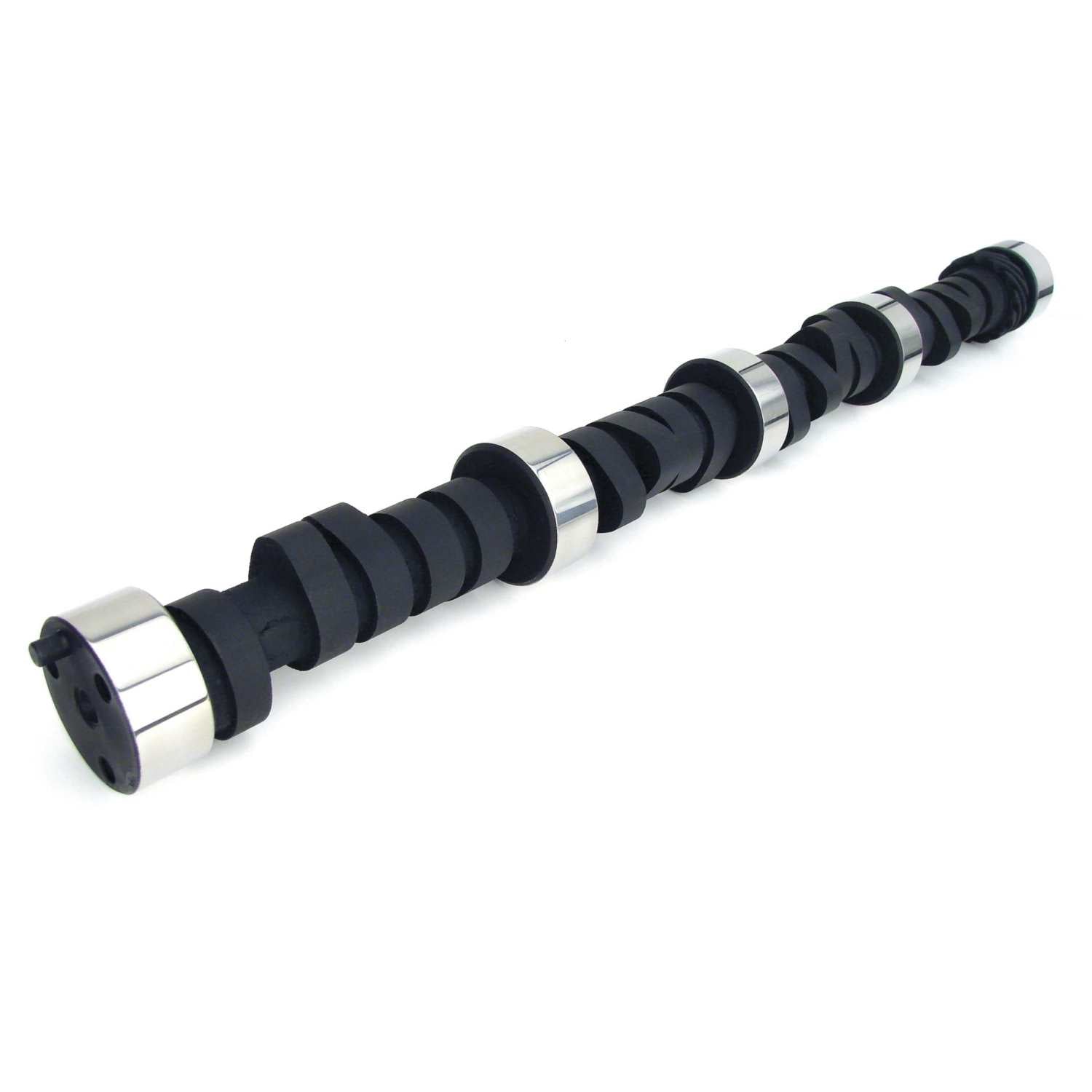

dddbebdc29809COMP Cams Camshaft CB 252H-10 - 11-202-3
