Additional Attributes:
- GTIN: 00036584610830
- Camshaft Series: Magnum Muscle
- Usage: Street/Performance
- Cam Type: Hydraulic Flat Tappet
- Grind Number: 268AH-10
- Basic Operating RPM Range: 1,800-5,800
- Intake Duration at .050 Inch Lift: 222
- Exhaust Duration at .050 inch Lift: 226
- Advertised Intake Duration: 268
- Advertised Exhaust Duration: 276
- Lobe Separation: 110
- Intake Valve Lift: 0.464
- Exhaust Valve Lift: 0.464
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: Yes
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Cast Iron
- Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
- Cam and Lifter Kit Upgrade: CL20-309-4
- Lifter Type: Hydraulic Flat Tappet
- Amazon ASIN: B000P5G824
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
Extened Information:
- Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.2 x 2.9 x 2.6 inches
PDF:

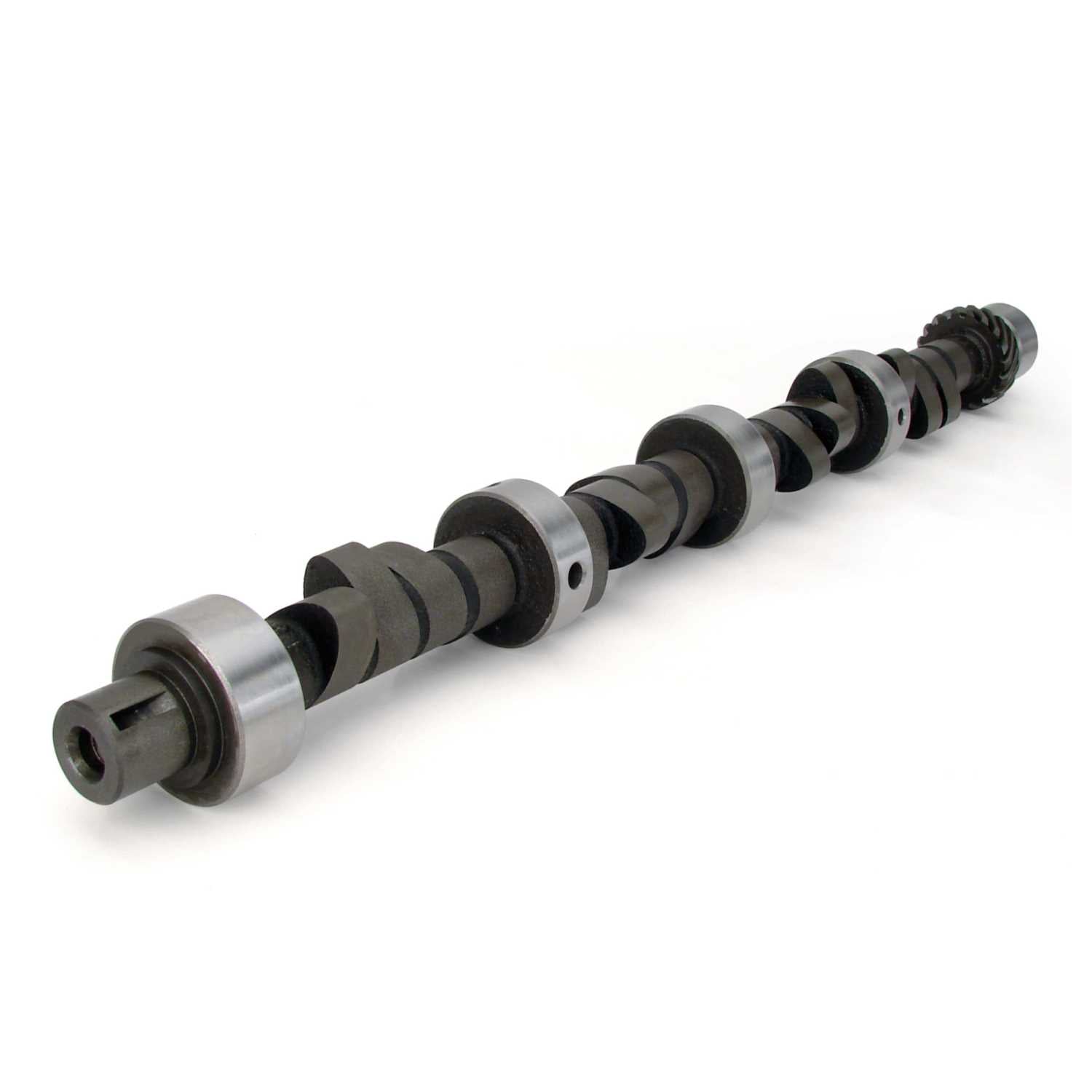

dddbebdc29809COMP Cams Camshaft CRS 268Ah-10 - 20-309-4
