Additional Attributes:
- GTIN: 00036584177043
- Intake Duration at .050 Inch Lift: 222
- Exhaust Duration at .050 inch Lift: 235
- Advertised Intake Duration: 261
- Advertised Exhaust Duration: 278
- Lobe Separation: 115.5
- Intake Valve Lift: 0.45
- Exhaust Valve Lift: 0.45
- Lifters Included: No
- Valve Springs Required: No
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Billet Steel
- Engine Family: Ford 4.6L and 5.4L SOHC Modular 3 Valve 8 Cylinder (2004+)
- Lifter Type: Hydraulic Roller Finger Follower
- Amazon ASIN: B002EDWQWQ
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- Camshaft Series: XFI NSR (No Springs Required)
- Usage: Street/Performance
- Cam Type: Hydraulic Roller Finger Follower
- Grind Number: XE261LH-15.5
- Basic Operating RPM Range: 750-6,400
Extened Information:
- Emissions : Not in CA
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.62 x 5.62 x 2.87 inches
PDF:

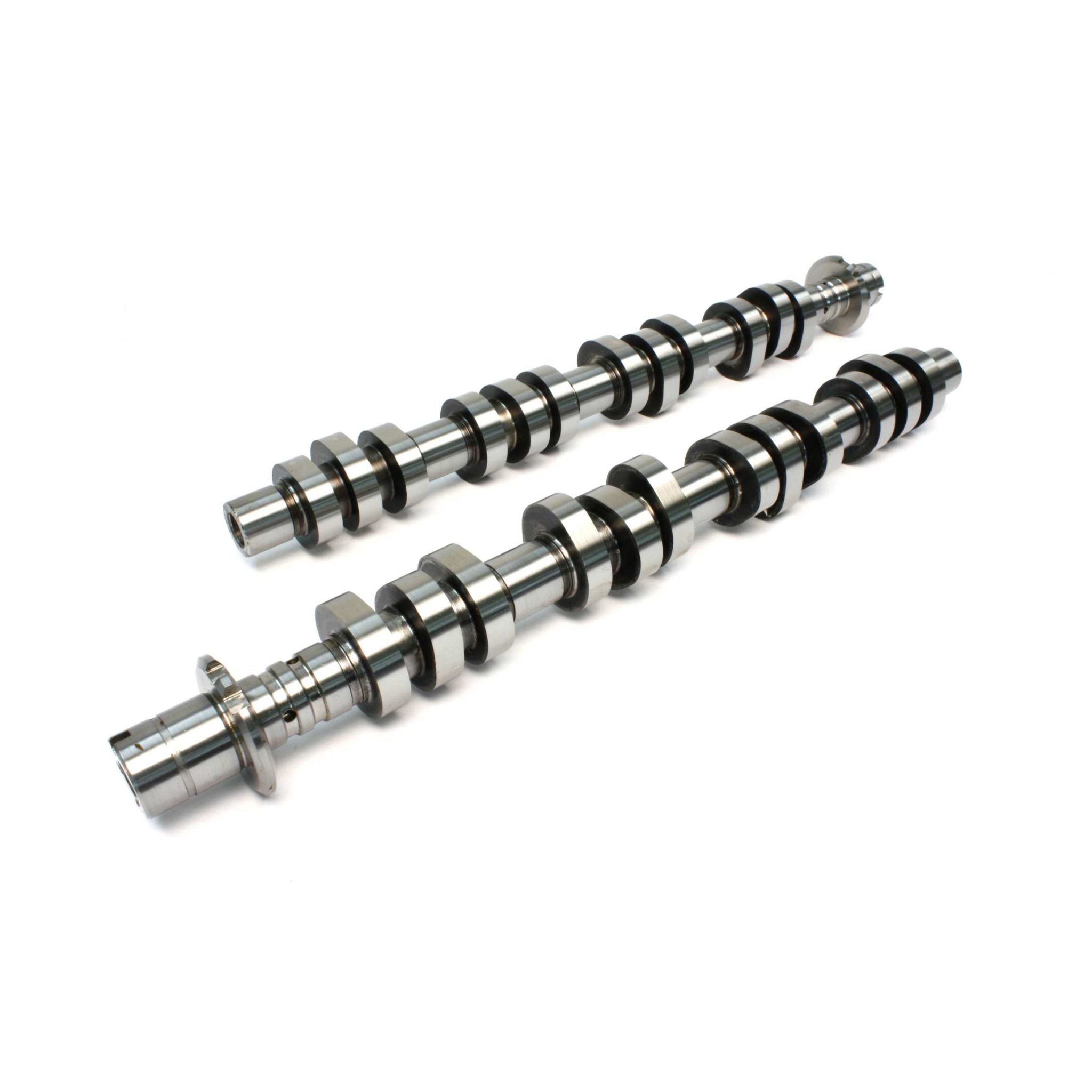

dddbebdc29809COMP Cams Camshaft Set F4.6 3V XE261L H - 127200
