Additional Attributes:
- GTIN: 00036584312673
- Camshaft Series: Xtreme Energy
- Usage: Street/Performance
- Cam Type: Hydraulic Roller
- Grind Number: XR292HR-10
- Basic Operating RPM Range: 2,800-6,400
- Intake Duration at .050 Inch Lift: 242
- Exhaust Duration at .050 inch Lift: 248
- Advertised Intake Duration: 292
- Advertised Exhaust Duration: 300
- Lobe Separation: 110
- Intake Valve Lift: 0.574
- Exhaust Valve Lift: 0.551
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Billet Steel
- Engine Family: Chrysler 426 HEMI 8 Cylinder (1966-1971)
- Lifter Type: Hydraulic Roller
- Amazon ASIN: N/A
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
Extened Information:
- Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 3 x 2.75 inches
PDF:

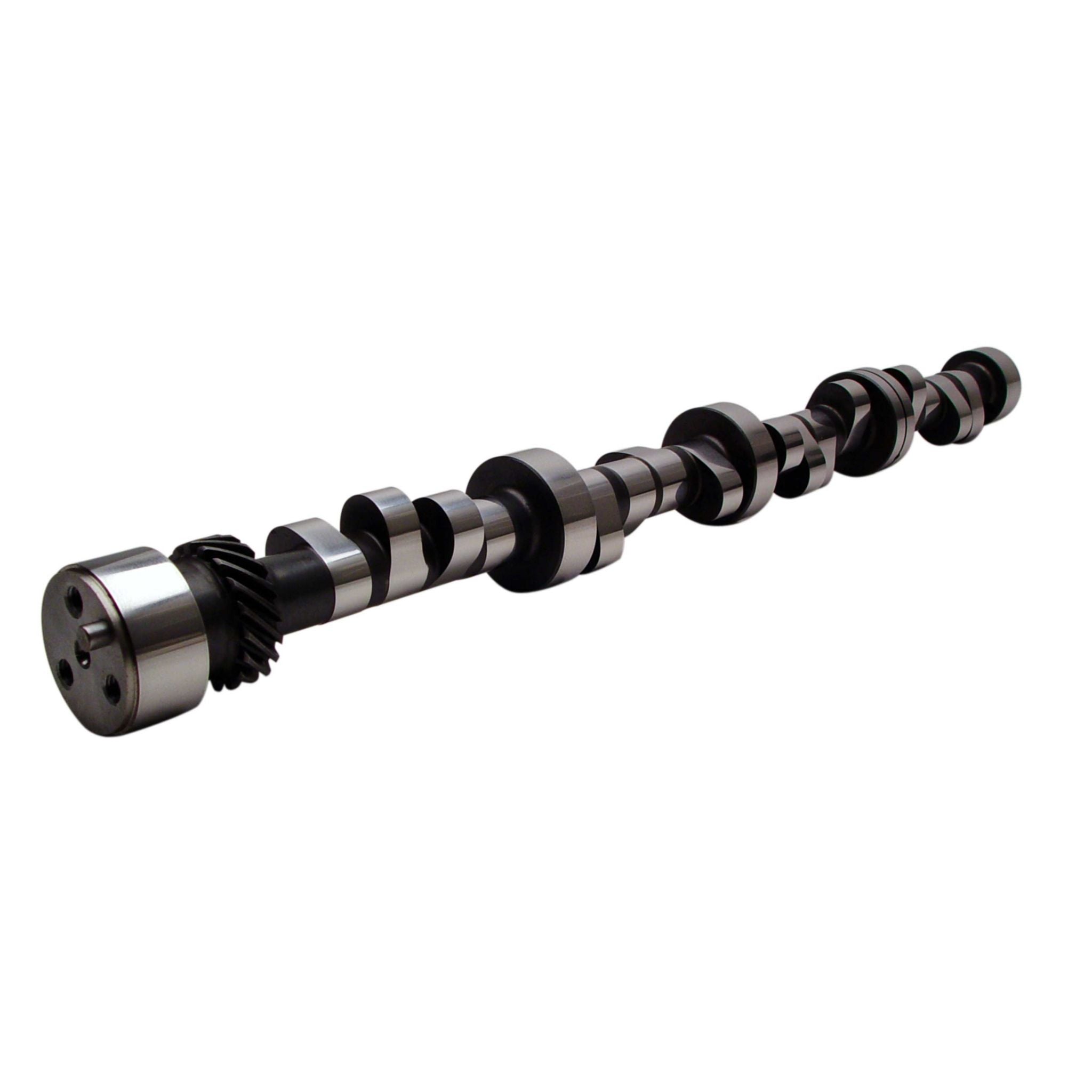

dddbebdc29809COMP Cams Camshaft Crh XR292HR-10 - 24-712-11
