B&M 10280 Transmission Cast Deep Pan Brushed Finish TF727 518&61848RE Cummins

$276.95 USD $308.00
By B&M
SKU: BBFT-10280
Minus Plus
More details Right
Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 4 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter, filter extension, gasket and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: Does not increase fluid capacity for the 48RE transmission.
  • Additional Oil Capacity
  • More Cooling Ability
  • No Dipstick Modification
  • Some Include Fluid Pickup Extension
  • Built-In Drain Plugs
  • Cast Aluminum

Attributes:

  • GTIN: 00019695102807
  • Brand Name: B&M
  • Temperature Sensor Bung: Yes
  • Trans Model: Chrysler- Torqueflite A727 (Auto) 3 Speed
  • WARNING CA Proposition 65: No
  • Additional Fluid Capacity: 4 qt. to all trans except 48RE
  • Bolt Quantity: 14
  • Drain Plug Included: Yes
  • Drain Plug Kit: Yes
  • Drain Plug Type: Magnetic
  • Filter Extension Included: Yes
  • Filter Included: Yes
  • Gasket Material: Cork
  • Gasket Or Seal Included: Yes
  • Instructions Included: Yes
  • Material: A356.0-T6 Aluminum
  • Mounting Hardware Included: Yes

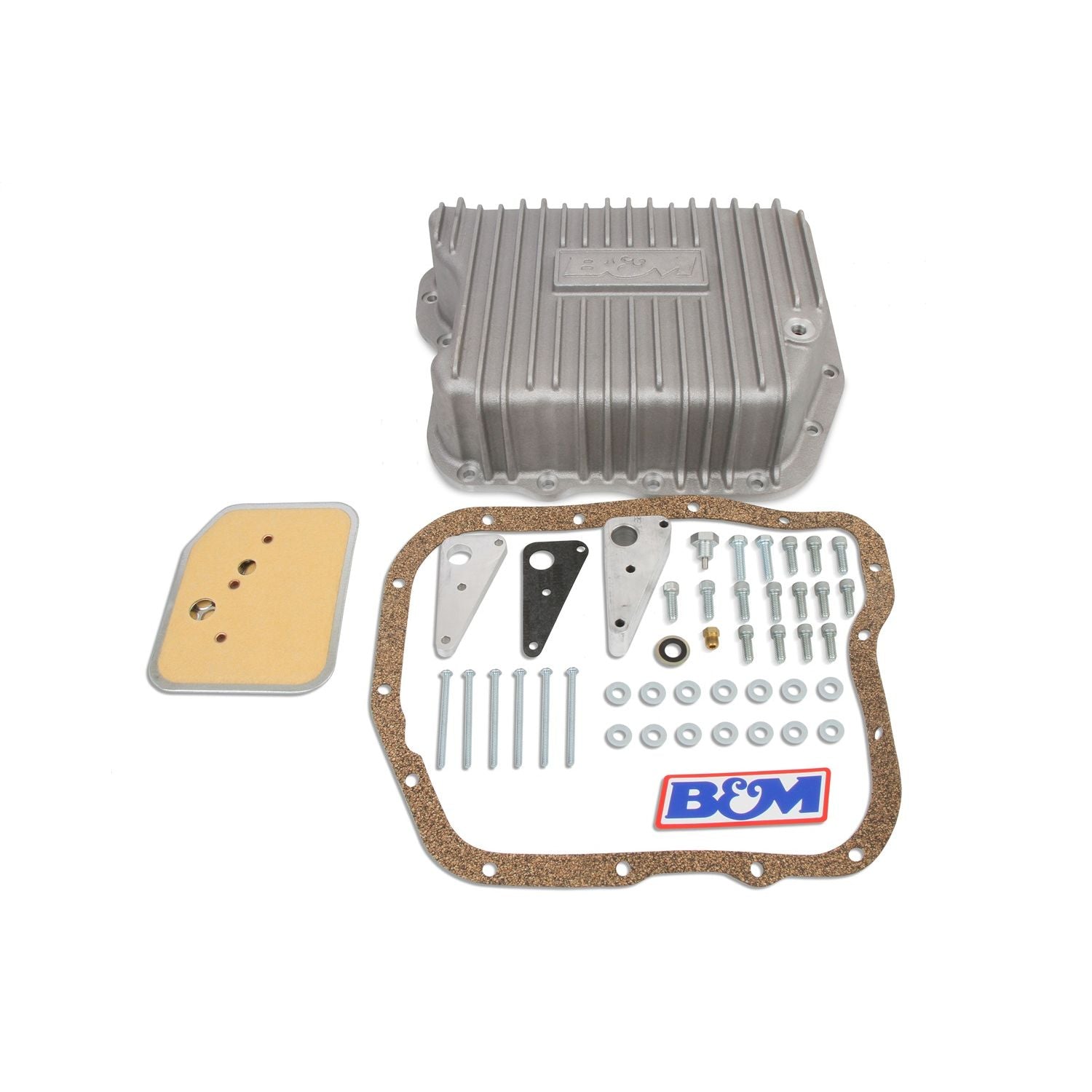

  • Package Contents: Transmission Pan, gasket, filter, filter extension, magnetic drain plug, 1/8 brass npt fitting and installation hardware
  • Pan Hang Over Stock: 3-3/8 in
  • Style: Deep

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 20.0000 x 12.7000 x 7.9000 inches
  • Weight: 12.6900 lb
