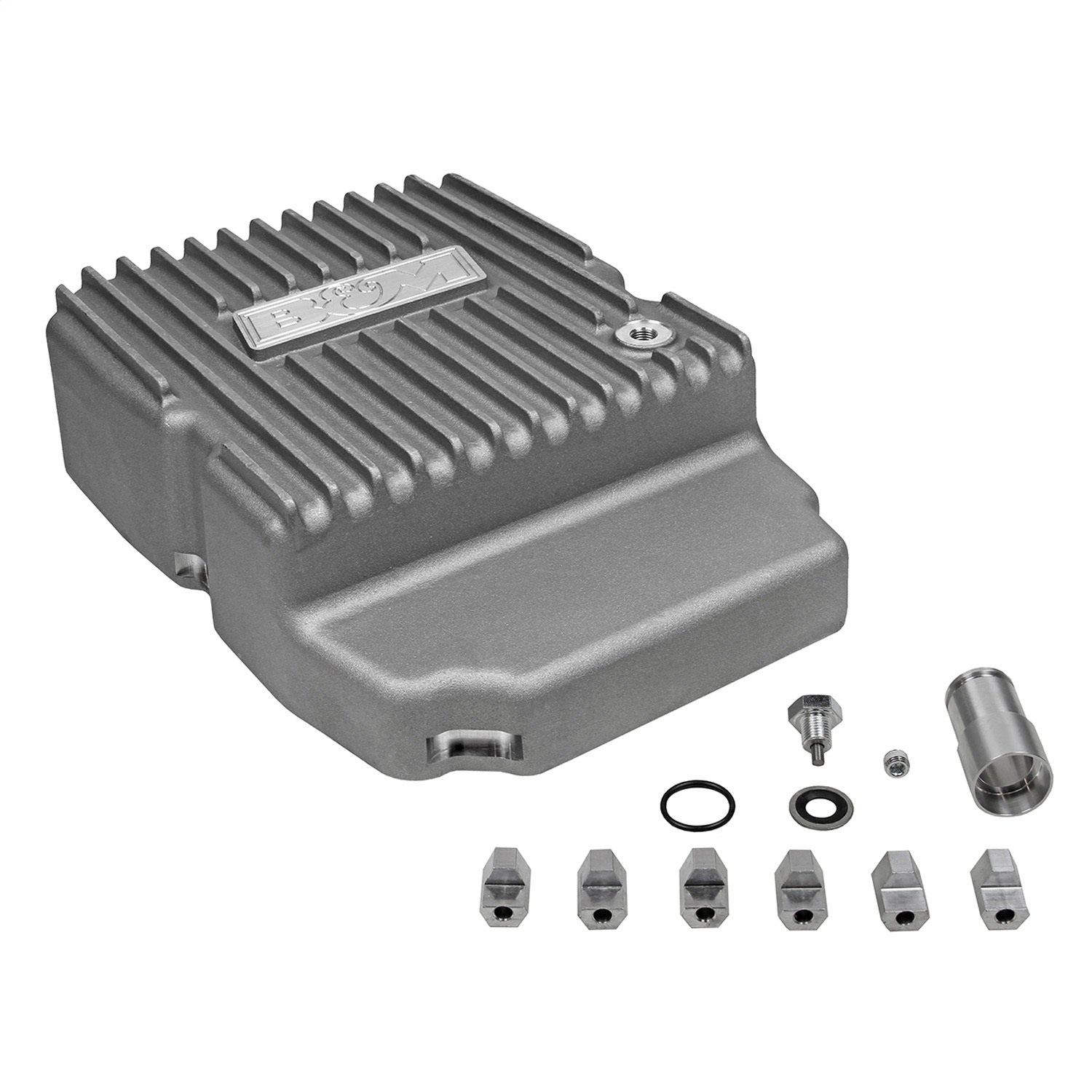

Our Hi-Tek deep transmission pans are constructed from A356-T6 aluminum and are cast with thick internal and external fins, adding additional strength and increased cooling properties. The deep pan design increases fluid capacity by 3 quarts over the stock O.E. steel pan. All these features combined help dissipate heat quicker netting lower transmission and fluid temperatures prolonging the life of your transmission, transmission fluid and corresponding components. Other features for this popular pan include a filter, filter extension and drain port with magnetic drain plug for clean and easy servicing. Also includes a 1/8 inch NPT temperature sensor port for easily adding a temp gauge for monitoring transmission temperatures while daily driving, towing or racing. Includes detailed instructions with all necessary hardware for an easy at home installation. Note: NAG-1 transmissions do not come with a dip stick from the factory to check fluid level. As a solution, B&M offers optional NAG-1 locking dipsticks part #22300, 22301 or 22302 (check vehicle applications) to measure proper transmission fluid level.
- Additional Oil Capacity
- More Cooling Ability
- No Dipstick Modification
- Some Include Fluid Pickup Extension
- Built-In Drain Plugs
- Cast Aluminum
Attributes:
- GTIN: 00019695103002
- Brand Name: B&M
- Additional Fluid Capacity: 3 qt.
- Drain Plug Included: Yes
- Drain Plug Kit: Yes
- Filter Extension Included: Yes
- Finish: Natural
- Gasket Or Seal Included: No
- Instructions Included: Yes
- Material: Cast Aluminum
- Mounting Hardware Included: Yes
- Package Contents: Pan, mounting clamps, filter extension, instructions
- Style: Deep
- Temperature Sensor Bung: Yes
- Trans Model: Mopar- NAG1 Trans (Automatic 5 Speed)
- WARNING CA Proposition 65: No
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 17.0000 x 14.9000 x 5.0000 inches
- Weight: 7.6000 lb
PDF:
10300
