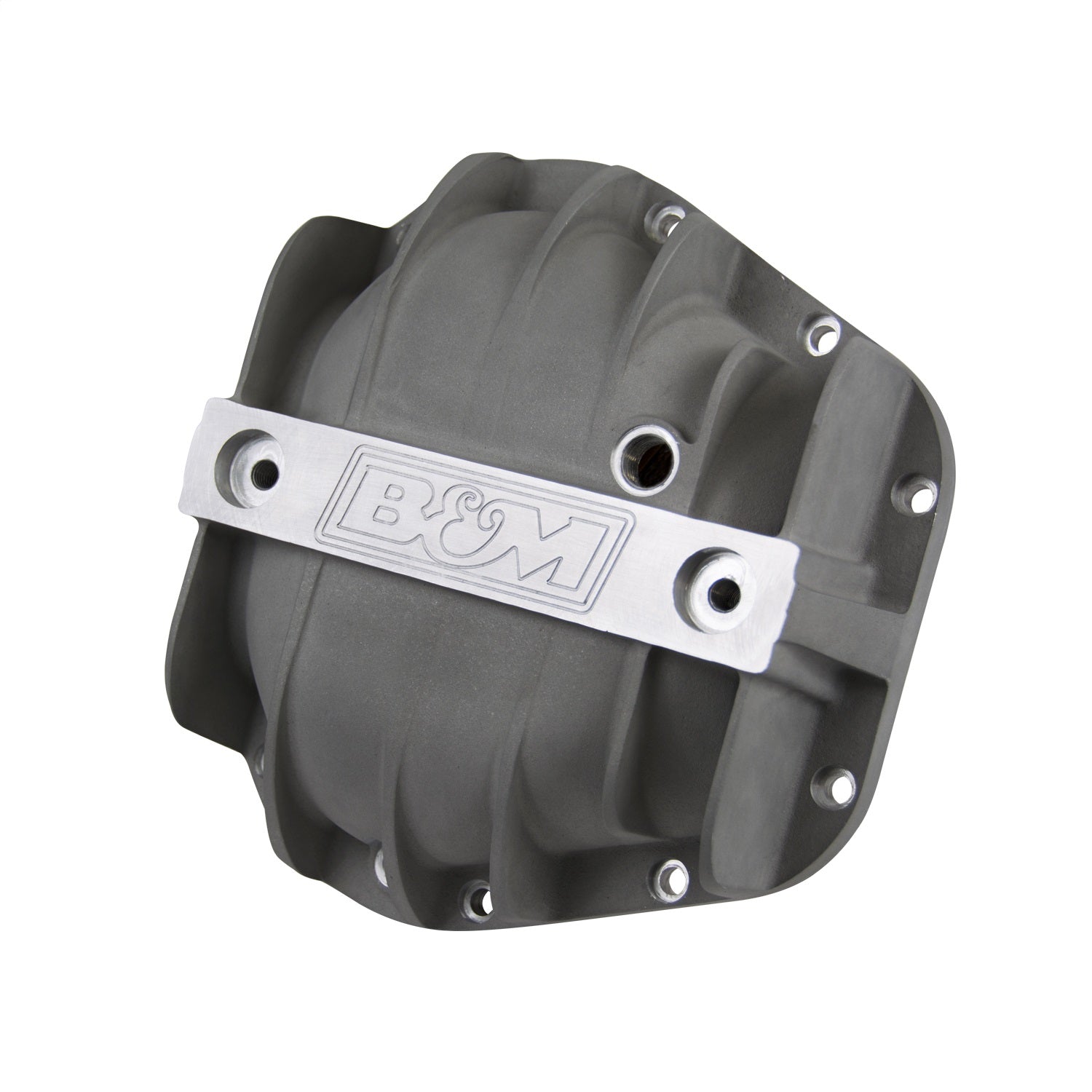

B&M 10314 Cast Aluminum Differential Cover for Dana 60/70

B&M Cast Aluminum Differential Covers are designed to strengthen the differential by preventing case distortion and ring gear & bearing cap deflection. Constructed of A356.0-T6 aluminum, these rugged covers significantly increase the fluid capacity and dissipate heat much faster than the stock factory unit to prolong the life of your ring and pinion gears. Additional features include an engraved B&M logo, drain and fill port locations, a magnetic drain plug for catching ferrous metal particles, and complete hardware and installation instructions.

• Additional Oil Capacity
• More Cooling Ability
• No Dipstick Modification
• Some Include Fluid Pickup Extension
• Built-In Drain Plugs
• Cast Aluminum

Attributes:

• GTIN: 00019695103149
• Brand Name: B&M
• Bolt Pattern: DANA 60/70
• Bolt Quantity: 10
• Call Out Size (in): 3.75
• Carrier Main Cap Support: Yes
• Drain Plug Included: Yes
• Filler Plug Included: Yes
• Finish: Raw Aluminum
• Gasket Or Seal Included: No
• Material: A356.0-T6 Aluminum
• Package Contents: Aluminum cover, fill & drain plugs, bolts & washers, load bolts & nuts, warranty
• Position: N/A
• Thickness: 3.750 in.
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 14.3000 x 14.3000 x 5.7000 inches
• Weight: 9.8000 lb
