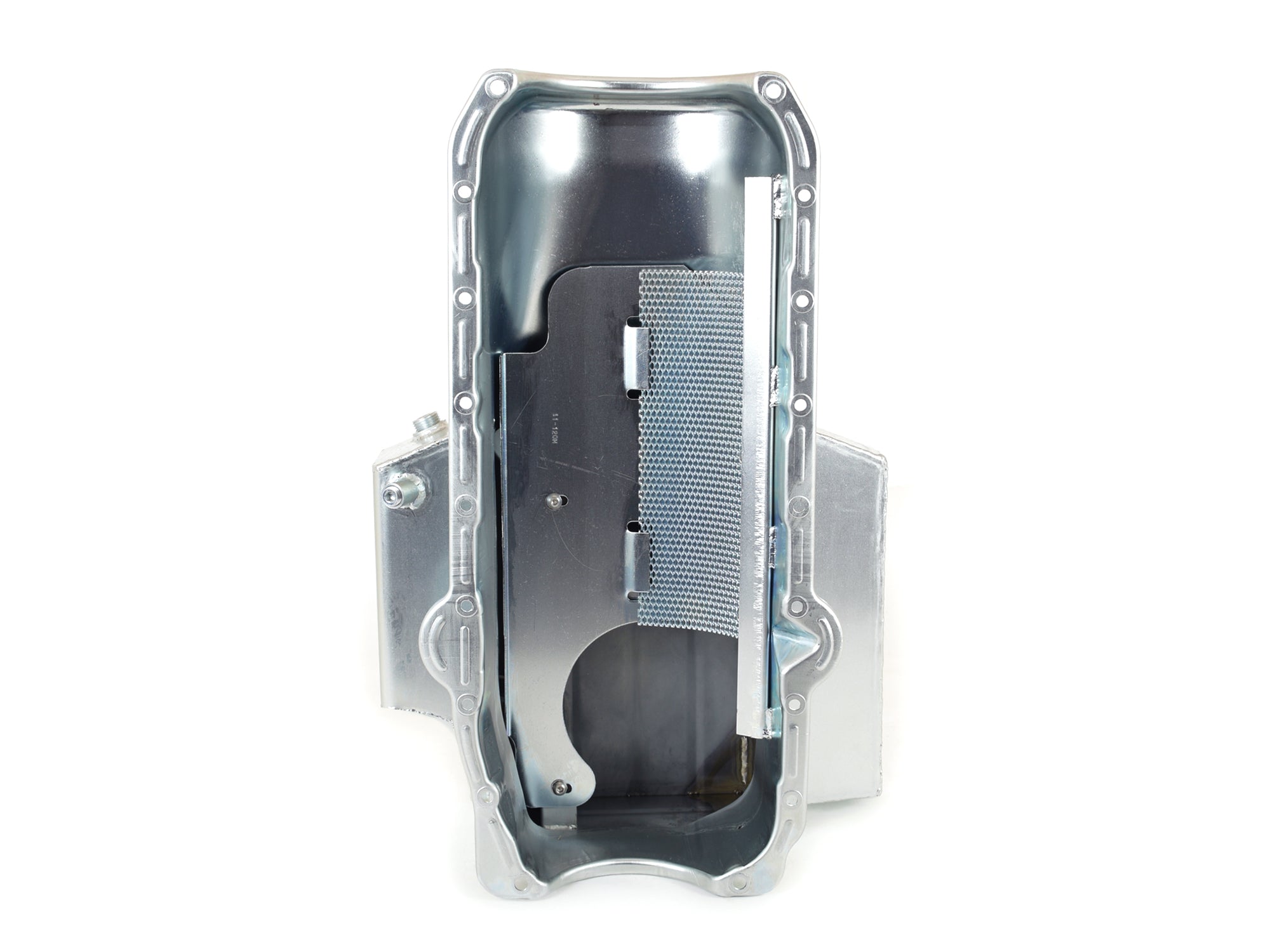

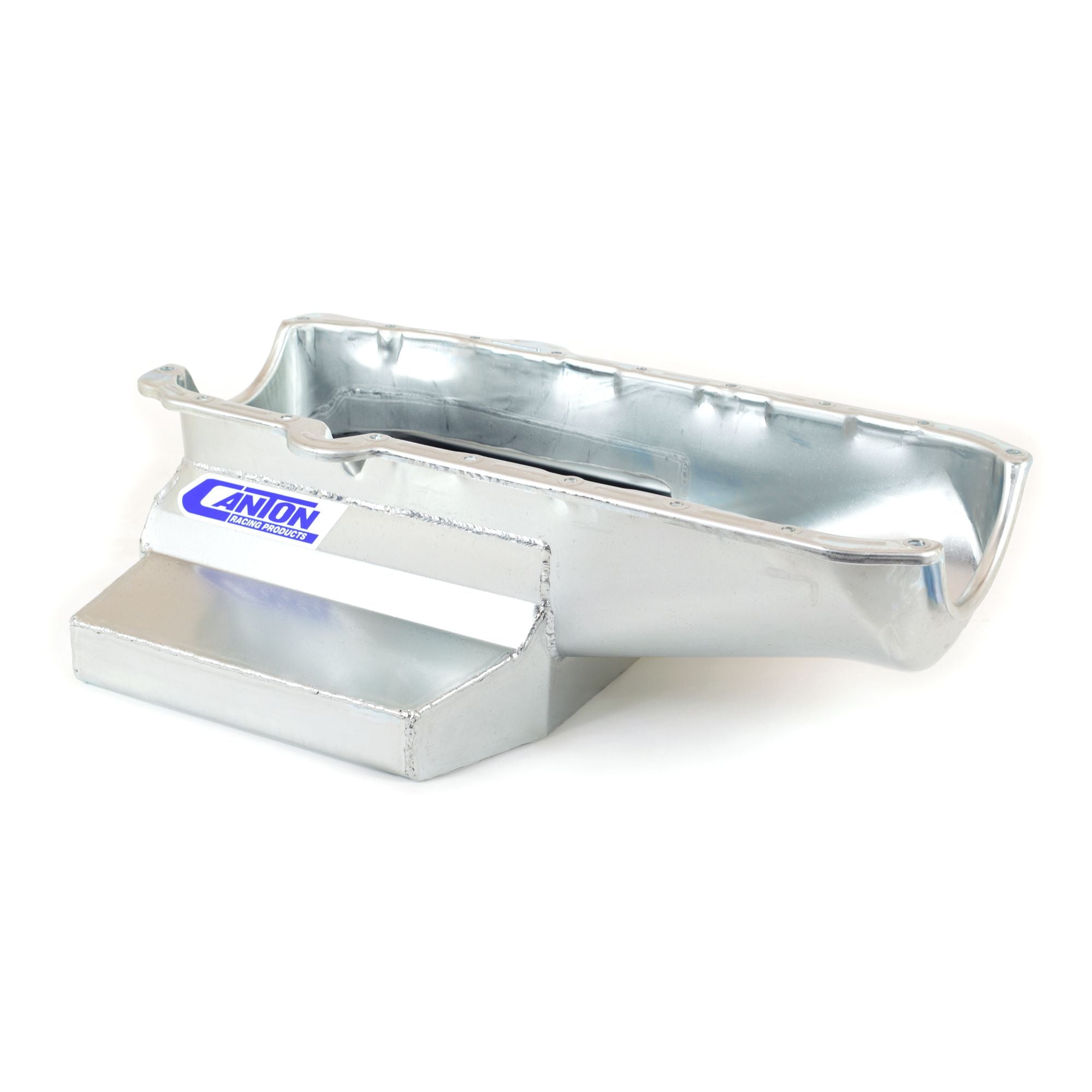

Canton 11-120M Oil Pan Small Block Chevy 12" Circle Track Long Sump 7" Deep

$433.00 USD $519.60
By Canton
SKU: BGTF-11-120M

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.
  • 8 qt System Capacity
  • 3.75" Stroke Clearance
  • Six Trap Door Baffles & Three Runners
  • Crank Scraper
  • Bolt in Slosh Baffle
  • Built in Windage Tray
  • 1/2” NPT Temperature Bung
  • Provison for our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711175
  • Brand Name: Canton
  • Feature 5: Provision for Canton Pan Mounted Dipstick
  • Feature 4: Reduces Crank Windage And Saves Horsepower
  • Feature 3: Removable Screen Windage Tray and Built in Crank Scraper
  • Feature 2: Bolt On Slosh Baffle For Oil Control
  • Feature 1: Baffled with 6 Trap Doors/3 Directional Runners
  • Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: Yes
  • Windage Tray Included: Yes
  • Baffled: Yes
  • Kicked Out: Yes
  • Stoke: 3.75 inches
  • Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
  • Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
  • Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
  • Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
  • Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
  • Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
  • Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 8 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 7: Magnetic Drain Plug
  • Feature 6: 1/2 NPT Temp Sensor Bung

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 16.25 x 9.5 inches
  • Weight: 20 lb
