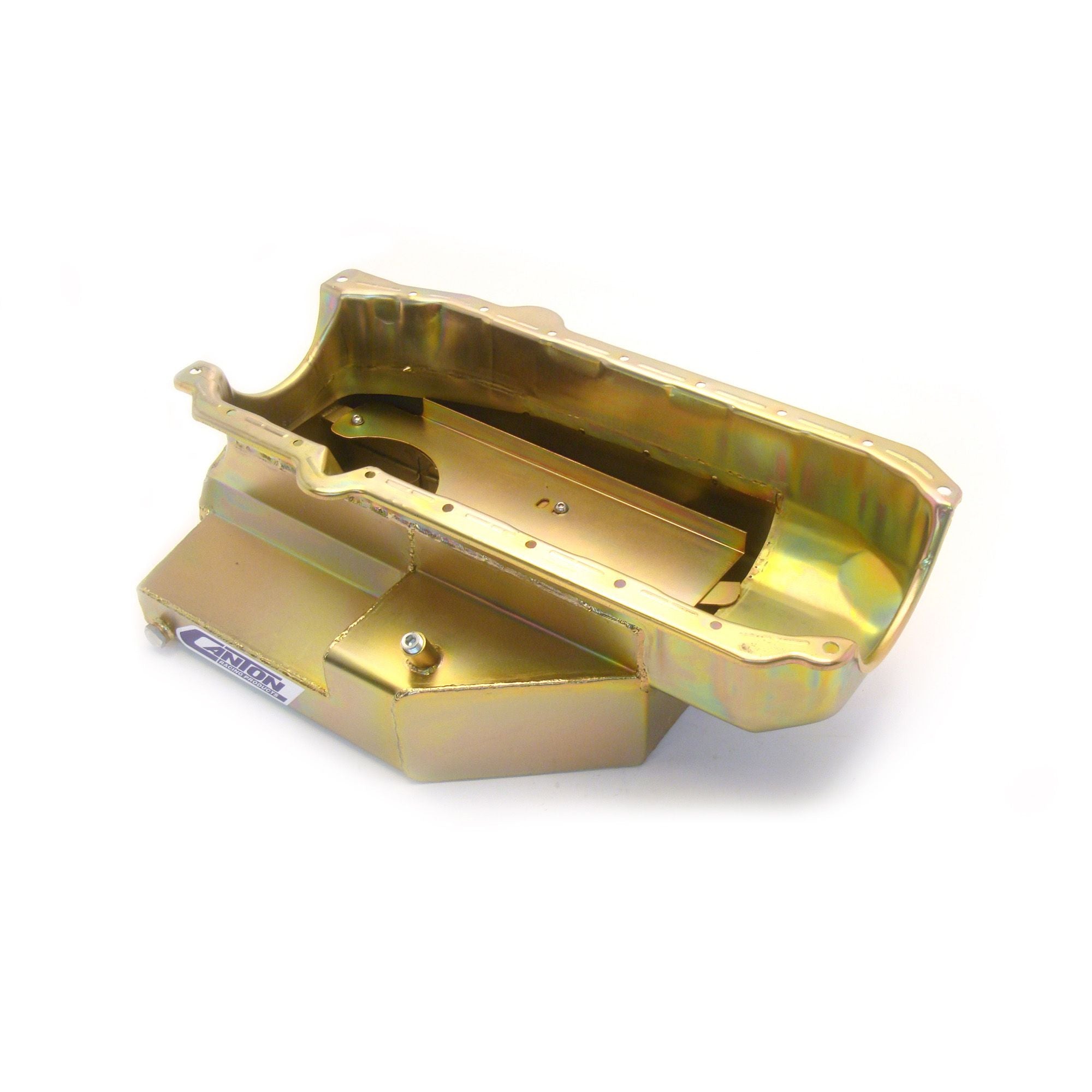

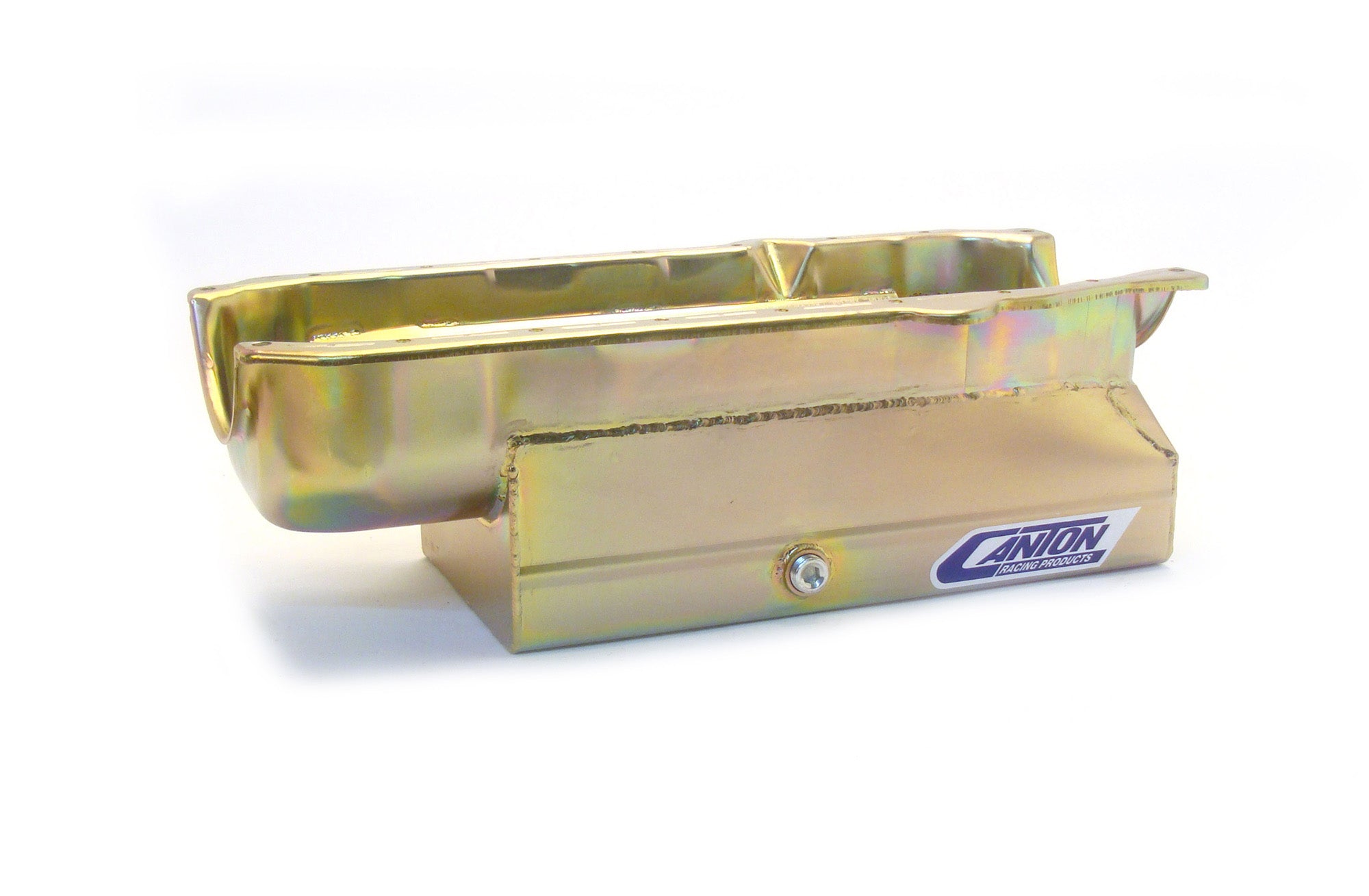

Canton 11-180T Oil Pan Small Block Chevy Circle Track Open Chassis 86 And Newer

$479.00 USD $574.80
By Canton
SKU: BGTF-11-180T
Minus Plus
More details Right
This SBC competition open chassis wet sump is for ?86 and newer Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 11-1/2" wide, 16" long 7" deep ?L? sump, and a 9 quart system capacity. Requires one of our pickups.
  • Clears 3.875" Stroke
  • 7" Deep 16" long 11.5" wide sump
  • 9 qt System Capacity
  • Six Trap Door Baffle System
  • Crank Scraper
  • Bolt In Screen Windage Tray
  • 1/2" NPT Temperature Bung
  • Provision for pan mounted dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711236
  • Brand Name: Canton
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 9 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 8: Magnetic Drain Plug
  • Feature 7: 1/2 NPT Temp Sensor Bung
  • Feature 6: Provision for Canton Pan Mounted Dipstick
  • Feature 5: Removable Screen Windage Tray and Built in Crank Scraper
  • Feature 4: Bolt On Slosh Baffle For Oil Control
  • Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
  • Feature 2: 7in Deep 16in long 11.5in wide sump
  • Feature 1: Clears 3.875in Stroke
  • Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: Yes
  • Windage Tray Included: Yes
  • Baffled: Yes
  • Kicked Out: Yes
  • Stoke: 3.875"
  • Recommended Accessory 9: 22-300 - SBC Oil Pan Stud Kit
  • Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 6: 20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
  • Recommended Accessory 5: 20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
  • Recommended Accessory 4: 20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
  • Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
  • Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
  • Recommended Accessory 10: 88-100T - 1 Piece SBC Pre-85' Oil Pan Gasket
  • Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 16.25 x 9.5 inches
  • Weight: 20 lb
