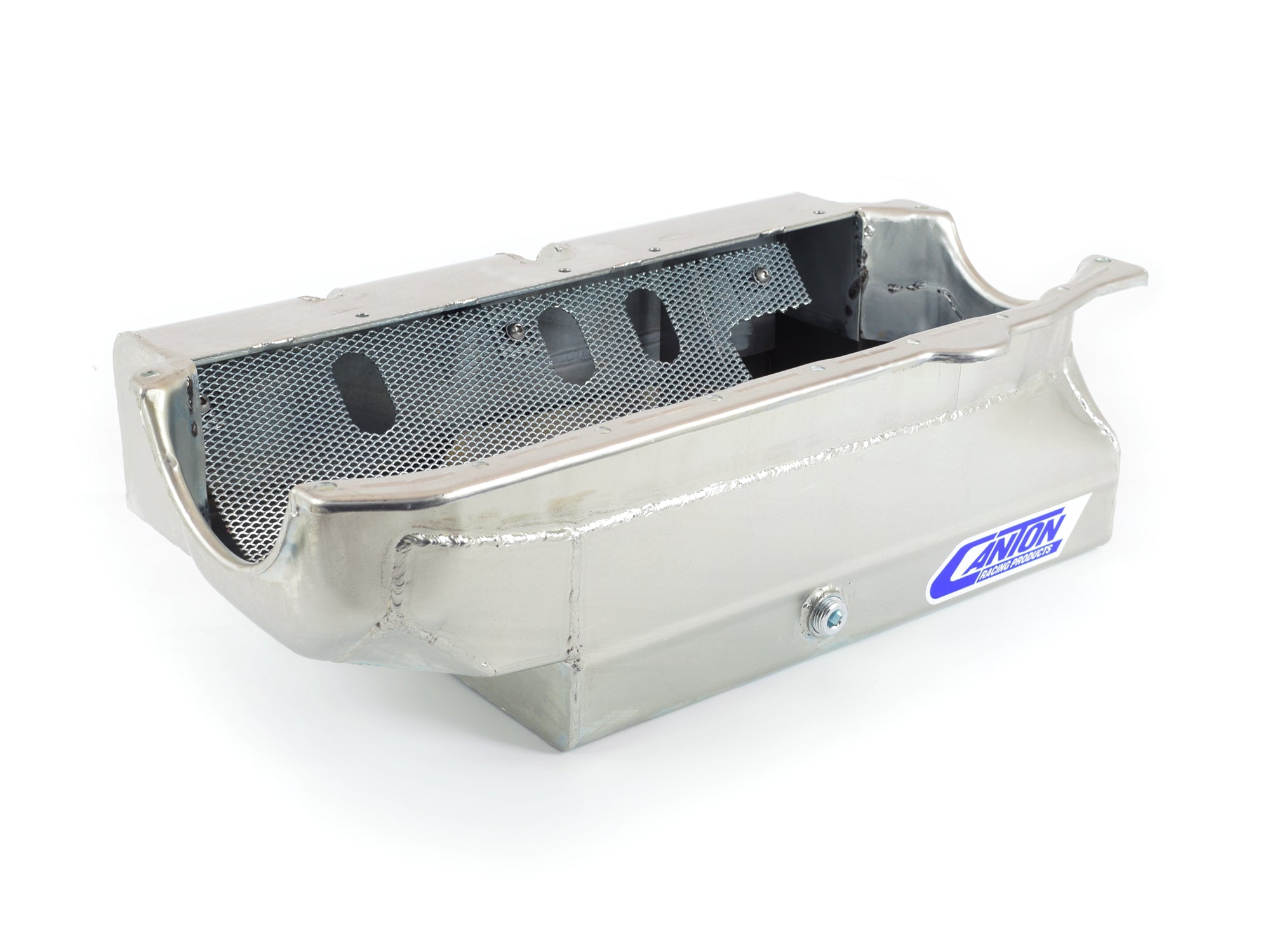

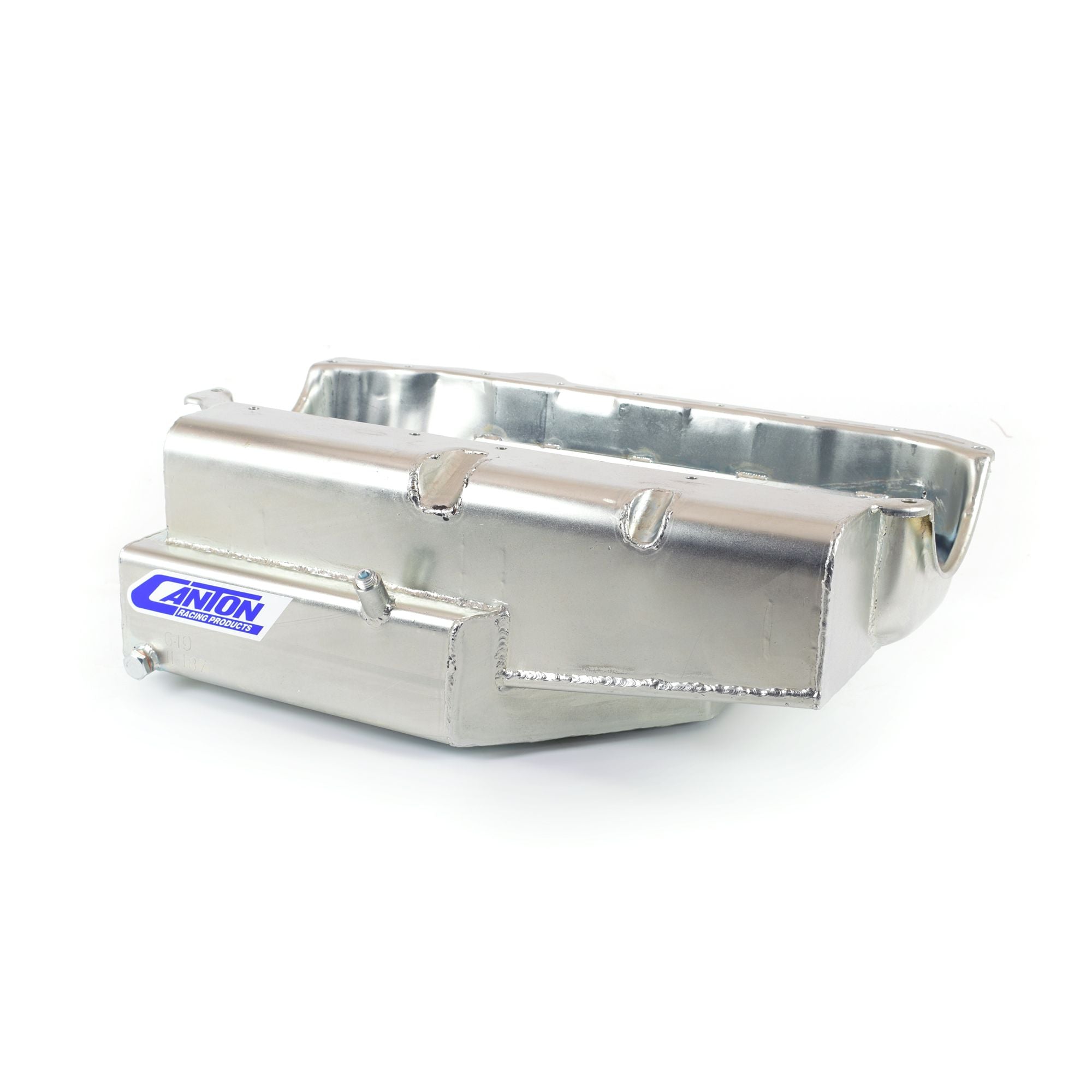

Canton 11-187 Oil Pan SBC Open Chassis Pro Style Pan W/ Left Or Rear Starters

$599.00 USD $718.80
By Canton
SKU: BGTF-11-187
Minus Plus
More details Right
This open chassis "L" style steel wet sump is for ?85 and earlier Small Block Chevys with left or rear mounted starters. This oil pan is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep ?L? sump with a 9 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.
  • 9 qt System Capacity
  • Six Trap Door Baffles & Directional Oil Runners
  • Pro Style Oil Recovery Pouch
  • Bolt in Slosh Baffle
  • Built in Screen Windage Tray
  • 1/2” NPT Temperature Bung
  • Provison for our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711250
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: Yes
  • Stoke: 3.875"
  • Recommended Accessory 9: 22-300 - SBC Oil Pan Stud Kit
  • Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 6: 20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
  • Recommended Accessory 5: 20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
  • Recommended Accessory 4: 20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
  • Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
  • Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
  • Recommended Accessory 11: 88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket
  • Recommended Accessory 10: 88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
  • Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 9 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 8: Magnetic Drain Plug
  • Feature 7: 1/2 NPT Temp Sensor Bung
  • Feature 6: Provision for Canton Pan Mounted Dipstick
  • Feature 5: Removable Screen Windage Tray
  • Feature 4: Bolt On Slosh Baffle For Oil Control
  • Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For S.B. Chevy 1985 and earlier blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 16.25 x 9.5 inches
  • Weight: 23 lb
