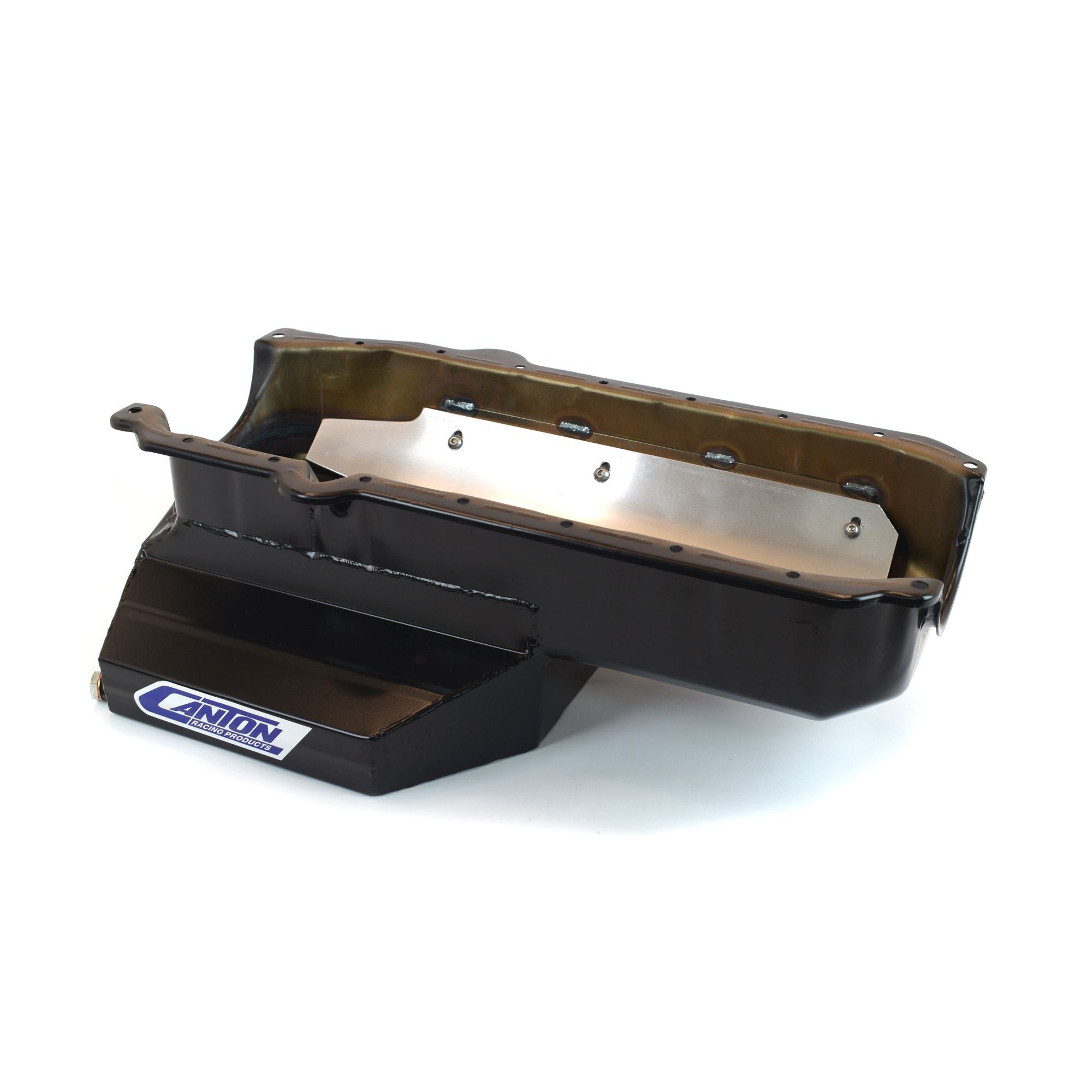

Canton 11-224T Oil Pan For GM Late Model Circle Track Pan T Sump Black

$466.00 USD $559.20
By Canton
SKU: BGTF-11-224T
Minus Plus
More details Right
This Competition wet sump is for '86 and newer Small Block Chevys with a one piece seal. The oil pan is designed to be replacement/upgrade for the GM performance circle track crate engine "late model" pan. The deep "T" sump gives increased oil capacity in a shallow sump design. It has a 7" deep, 12" long, 14" wide sump and a 8 quart system capacity. Requires one of our pickups.
  • 8 qt System Capacity
  • 3.75" Stroke Clearance
  • Six Trap Door Baffles & Three Runners
  • Crank Scraper

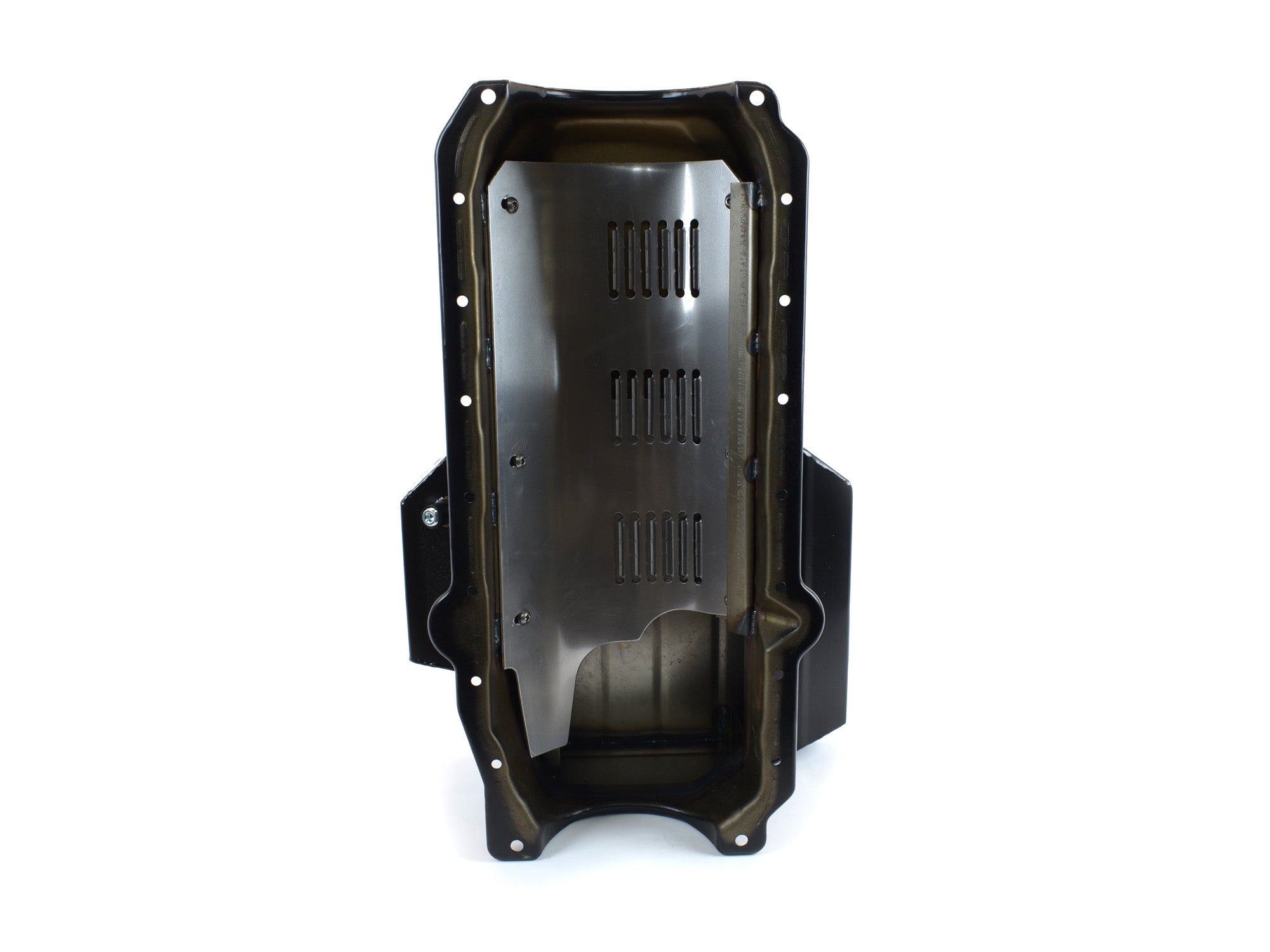

  • Bolt in Louvered Windage Tray
  • 1/2” NPT Temperature Bung
  • Provision for our Pan Mounted Dipstick
  • Black Powder coat Finish
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711311
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: Yes
  • Stoke: 3.875 inches
  • Recommended Accessory 9: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 7: 20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
  • Recommended Accessory 6: 20-071 - Flange Mount Pickup for M10552 & M10555 Pump
  • Recommended Accessory 5: 20-077 - Press In Pickup for M10552 & M10555 Pump
  • Recommended Accessory 4: 20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
  • Recommended Accessory 3: 20-070 - Pickup for Small Block High Volume Pumps M55HV
  • Recommended Accessory 2: 20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
  • Recommended Accessory 1: 20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 8 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 6: Replaces the GM performance Late Model Circle Track Oil Pan
  • Feature 5: Oil Check Plug
  • Feature 4: Removable Louvered Windage Tray
  • Feature 3: Built in Crank Scraper
  • Feature 2: Baffled with 6 Trap Doors To Direct Oil to Pickup
  • Feature 1: Shallow T Sump Gives Increased Oil Capacity
  • Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: Yes
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24 x 9.75 x 19.15 inches
  • Weight: 16.75 lb
