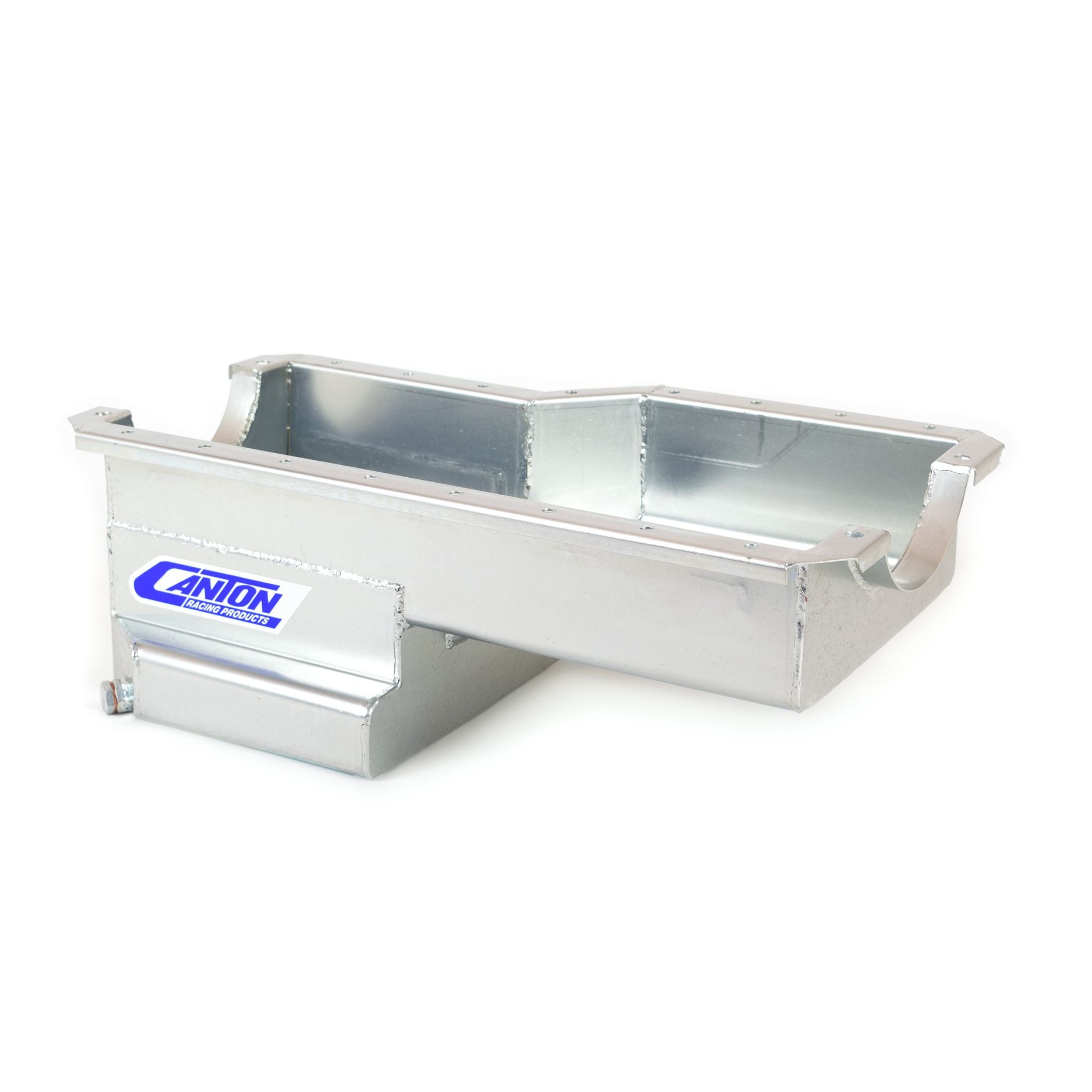

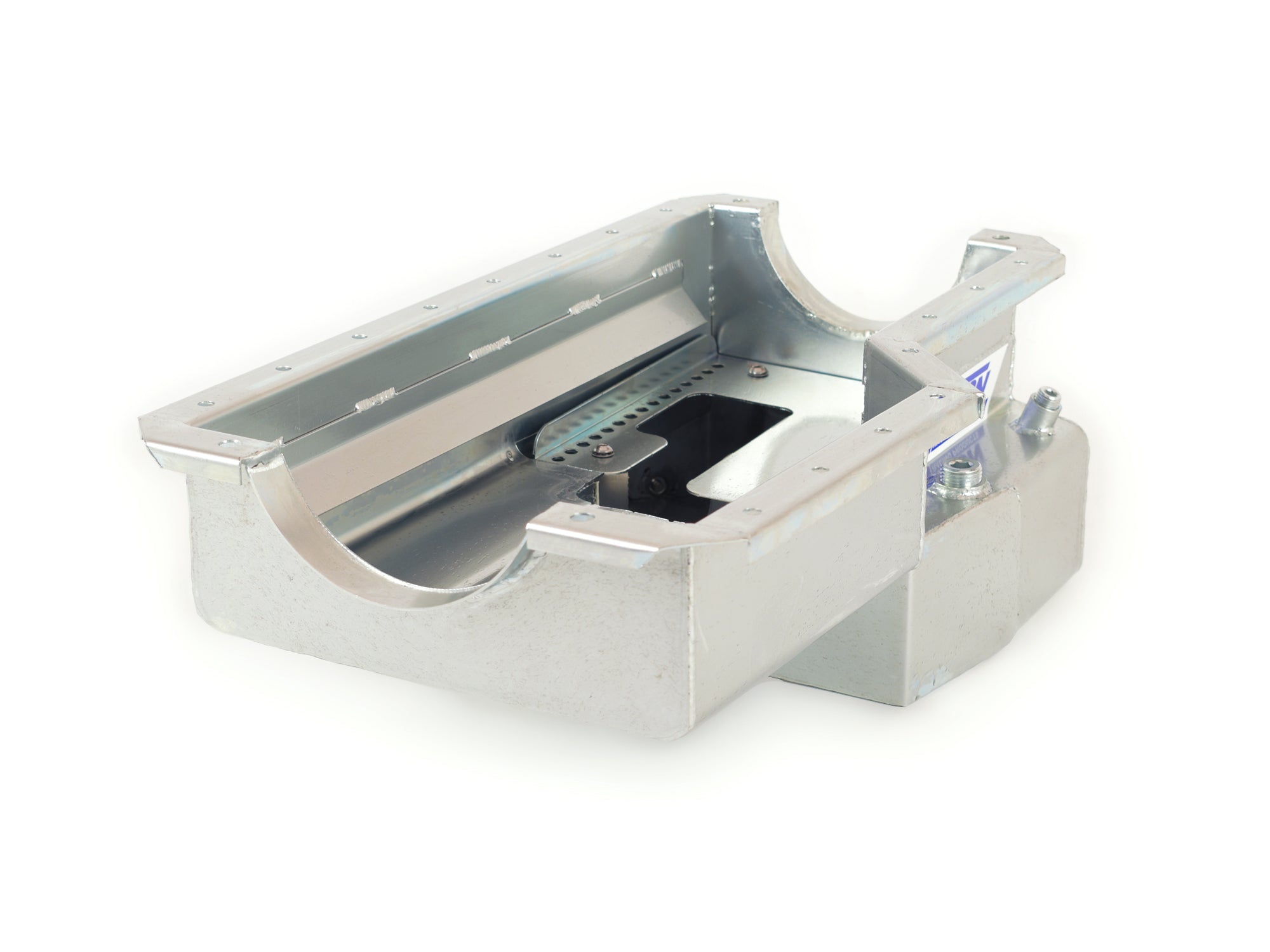

Canton 11-910 Oil Pan Ford 2300CC Rear Sump Circle Track Pan

This Ford left turn rear sump is for ?74-97 2300cc ohc engines in Fox bodies, rear sump Pinto chassis, and mini-modifieds. It has a 7" deep, 11" wide, 8-1/2" long sump that holds 5 quarts and has a 5-1/2 quart system capacity. Pans will work with a stock starter. This pan works with our 2300 main support when using a 86C pump and pan's crank scraper is modified for clearance. This pan requires our 11-911 pickup.

• 5.5 qt System Capacity
• Works with stock starter
• Three Trap Door Baffles & Directional Oil Runners
• Crank Scraper
• Removable Windage/Anti-Slosh Baffle
• 1/2" NPT Temperature Bung
• Provision For Our Pan Mounted Dipstick
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753711366
• Brand Name: Canton
• Baffled: Yes
• Gasket or Seal Included: No
• Stoke: 3.126"
• Recommended Accessory 4: 20-950 - Oil Pump P/U Stud for 2300 Engines
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
• Recommended Accessory 1: 11-911 - 3/4" Dia. Tube Pickup for 86 C & 86 CHV Pumps
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Hardware Included: No
• Finish: Silver Plating
• Capacity: 5.5 Quart System Capacity
• Feature 6: Magnetic Drain Plug
• Feature 5: 1/2 NPT Temp Sensor Bung
• Feature 4: Provision for Canton Pan Mounted Dipstick
• Feature 3: Built in Crank Scraper
• Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
• Feature 1: Baffled with 3 Trap Doors and Directional Runners
• Engine: For Ford '74-'97 2300cc ohc engines
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: Yes
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 14 x 10 inches
• Weight: 20 lb
