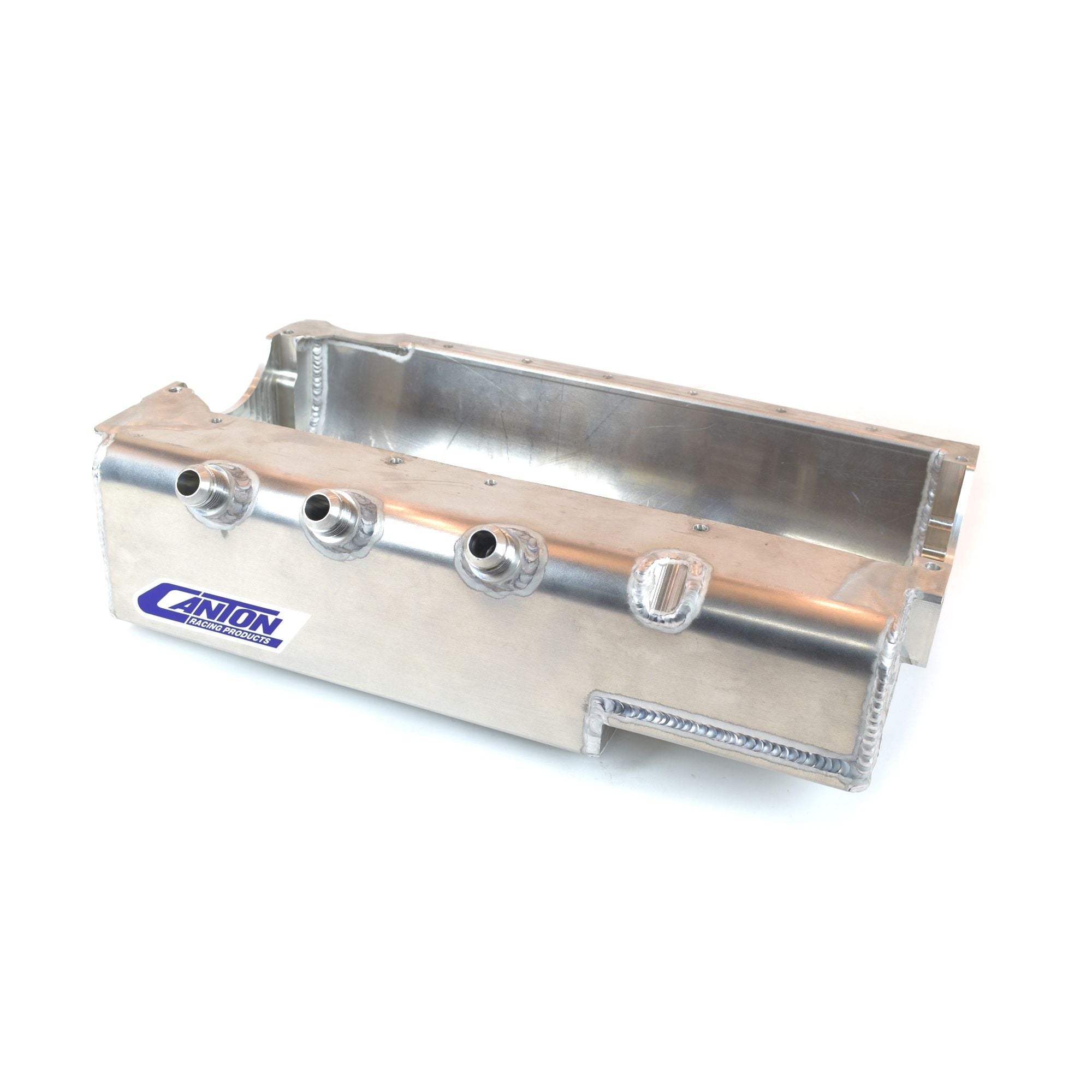

Canton 12-146A Oil Pan Small Block Chevy Pre-85 5" Deep Alum Dry Sump Power Pan

$1,179.00 USD $1,414.80
By Canton
SKU: BGTF-12-146A
Minus Plus
More details Right
This aluminum 5" deep dry sump pan is for all pre-?85 blocks with a two piece seal. Pan mounting bolts are accessed through plugs in the bottom of the pan. Can be used with our #20-820 crank scraper. Requires the use of a rear mounted starter.
  • Three -12AN Pickups Exiting on the Right Side
  • Pickup Tube Clean Out Ports
  • Pro Style Oil Recovery Pouch
  • Billet Seal For A Proper Fit
  • Built In Louver Windage Tray

Attributes:

  • GTIN: 00887753711434
  • Brand Name: Canton
  • Baffled: No
  • Recommended Accessory 1: 22-300 - SBC Oil Pan Stud Kit
  • Sump Width: 11 inches
  • Sump Depth: 5 inches
  • Stoke: 3.875 inches
  • Recommended Accessory 9: 88-100 - SBC Pre ?85 Oil Pan Gasket
  • Recommended Accessory 8: 23-120 - 10qt Sprint Style Dry Sump Tank w/ Right Side Fittings
  • Recommended Accessory 7: 23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
  • Recommended Accessory 6: 22-750 - -12 AN Screen Pump Protector
  • Recommended Accessory 5: 22-660 - In-Line Screen Protector -12 AN Fittings
  • Recommended Accessory 4: 22-650 - In-Line Screen Protector -10 AN Fittings
  • Recommended Accessory 3: 22-640 - In-Line Screen Protector -8 AN Fittings
  • Recommended Accessory 2: 22-540 - SBC Oil Input Adapter
  • Pickup Included: No
  • Crank Scraper Included: No
  • Material: .100 Aluminum
  • Kicked Out: No
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Finish: Raw Aluminum
  • Feature 5: Built In Louver Windage Tray
  • Feature 4: Billet Seal For A Proper Fit
  • Feature 3: Pro Style Oil Recovery Pouch
  • Feature 2: Pickup Tube Clean Out Ports
  • Feature 1: Three -12AN Pickups Exiting on the Right Side
  • Drain Plug Included: Yes
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 11 lb
