$43.80 off

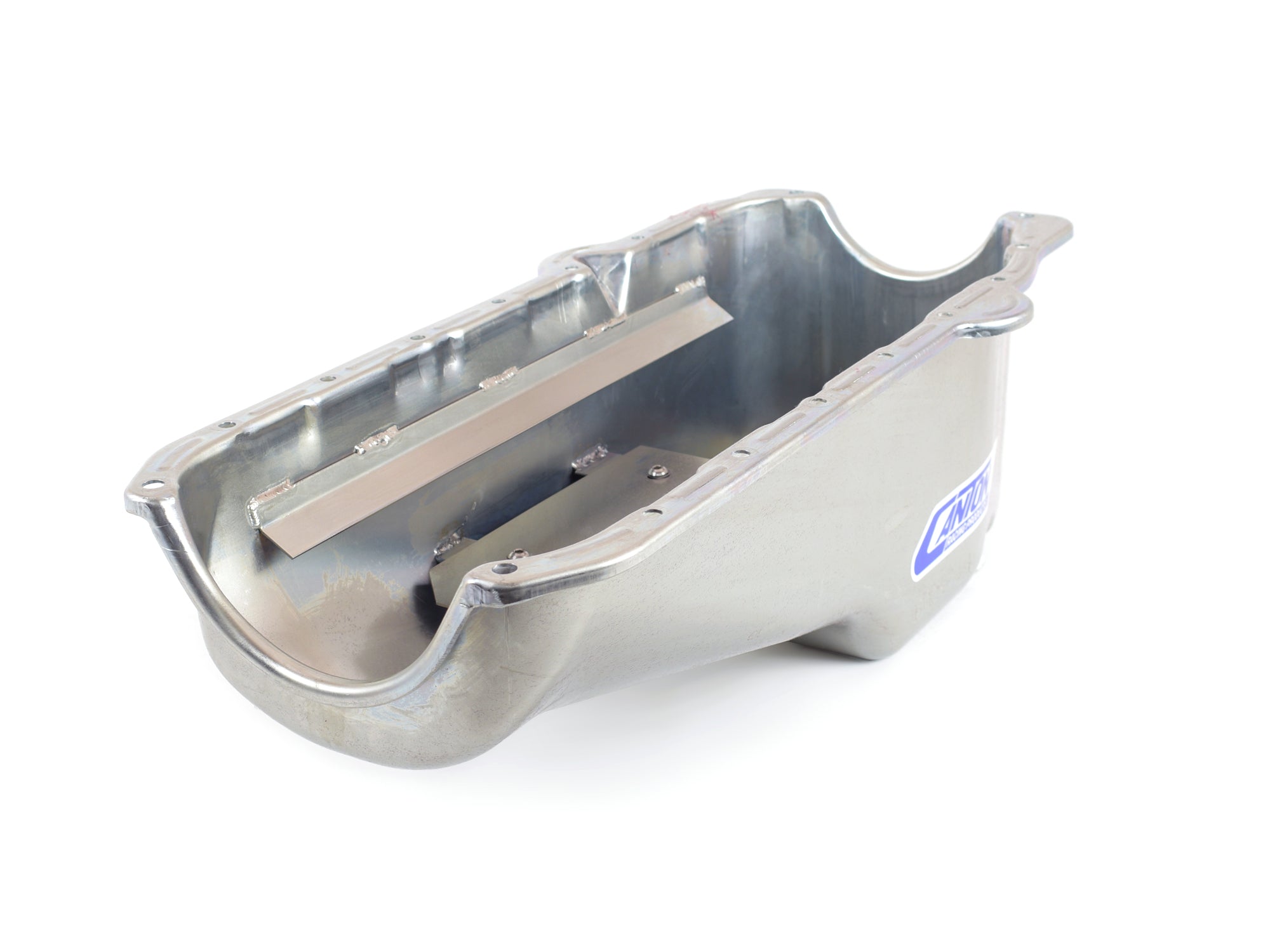

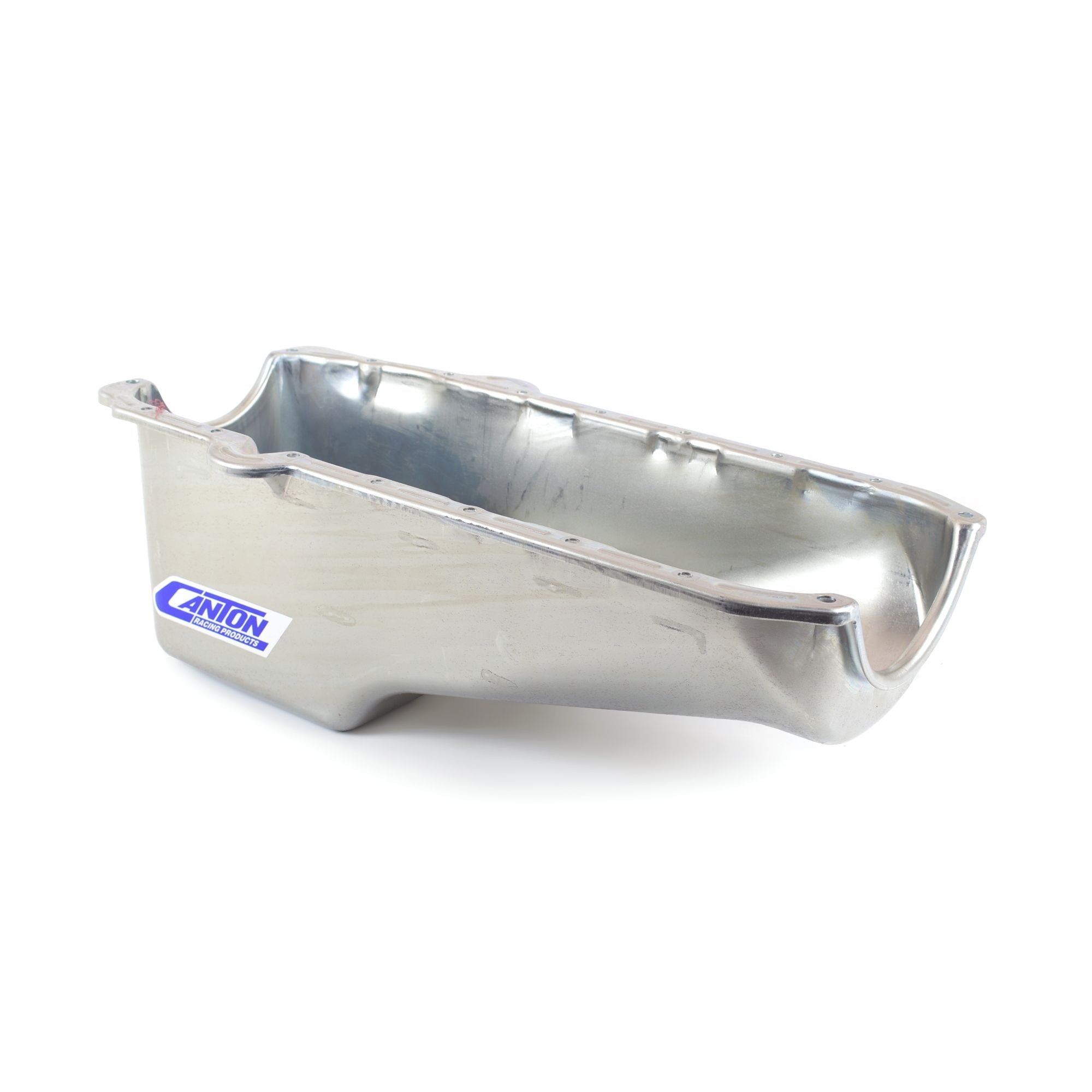

Canton 15-010M Oil Pan Small Block Chevy Stock Appearing Crate Engine Pan

$219.00 USD $262.80
By Canton
SKU: BGTF-15-010M
Minus Plus
More details Right
This stock appearing oil pan is for ?80-?85 blocks with right side dipstick. It is designed for applications that only have room for a stock oil pan, but require better control. Retains all stock oil pan dimensions and capacity. Will work with all starter flywheel combinations. Requires one our pickups.
  • 5 qt System Capacity
  • Clears 3.75" stroke
  • Trap Door Baffle
  • Crank Scraper
  • Slosh Baffle
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753712066
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: No
  • Stoke: 3.75 inches
  • Recommended Accessory 6: 88-100 - SBC Pre ?85 Oil Pan Gasket
  • Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
  • Recommended Accessory 4: 20-023 - Pickup for High Volume Pump M-155HV with 3/4" Inlet
  • Recommended Accessory 3: 20-020 - Pickup for High Volume Pump M55HV
  • Recommended Accessory 2: 20-013 - Pickup for Standard Volume Pump M-155 w/3/4" Inlet
  • Recommended Accessory 1: 20-010 - Pickup for Standard Volume Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 5 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 3: Bolt in Slosh Baffle
  • Feature 2: Crank Scraper
  • Feature 1: Trap Door Baffle for Oil Control
  • Engine: For S.B. Chevy 1980-85 Blocks with right side dipstick
  • Drain Plug Included: Yes
  • Dipstick Port: No
  • Crank Scraper Included: Yes
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 23 x 12 x 9 inches
  • Weight: 15 lb
