Canton 15-242TBLK Oil Pan Small Block Chevy 1993-1997 F Body Road Race Pan

$495.00 USD $594.00
By Canton
SKU: BGTF-15-242TBLK
Minus Plus
More details Right

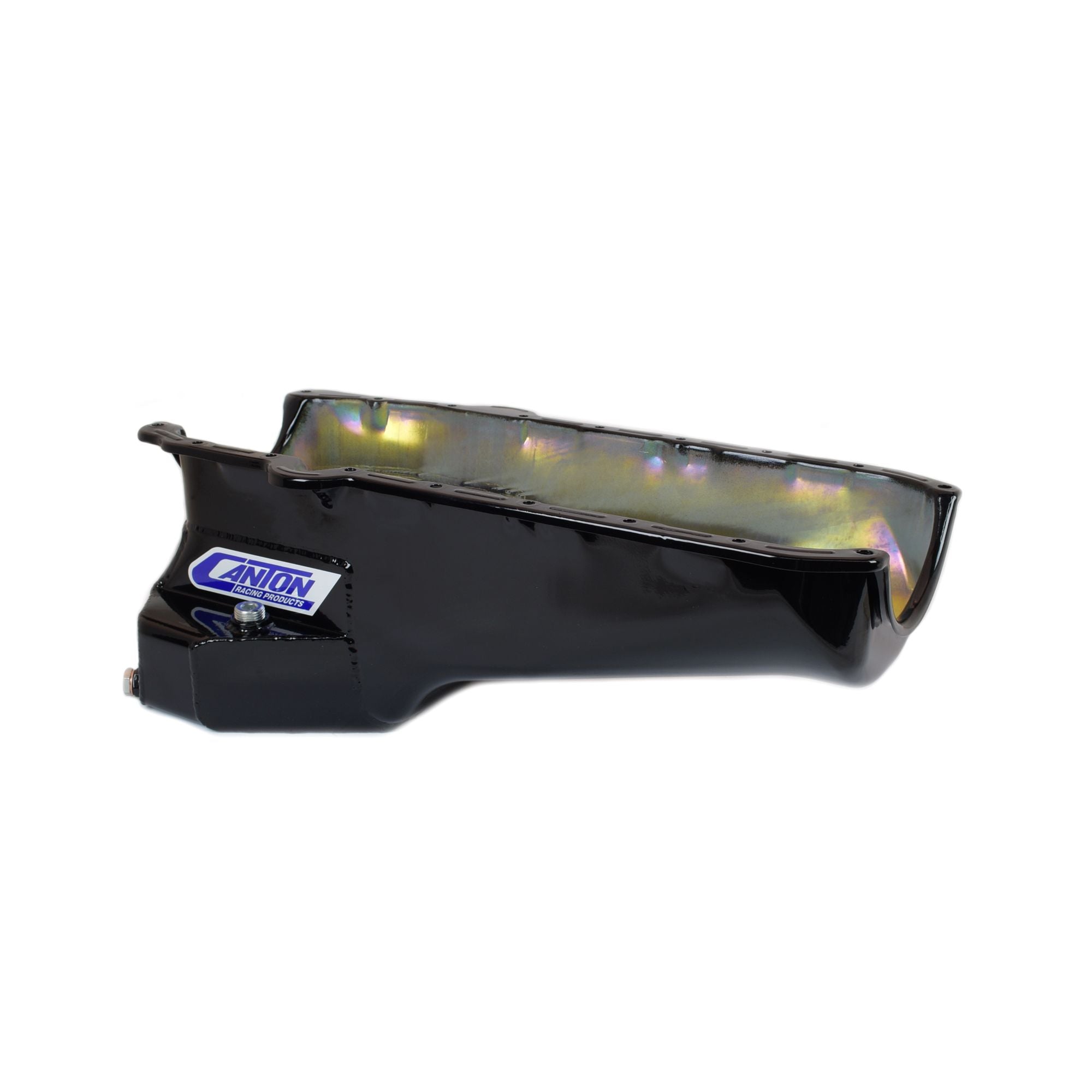

This black powder coat road race pan is for '86 and newer SBC blocks in '93-'97 F-Bodies. (also fits Impalas) It has a 7-1/2" deep, 12" wide, 8-1/4" long sump for a 6 qt. system capacity. Will work with stock starter. This pan requires one of our pickups.

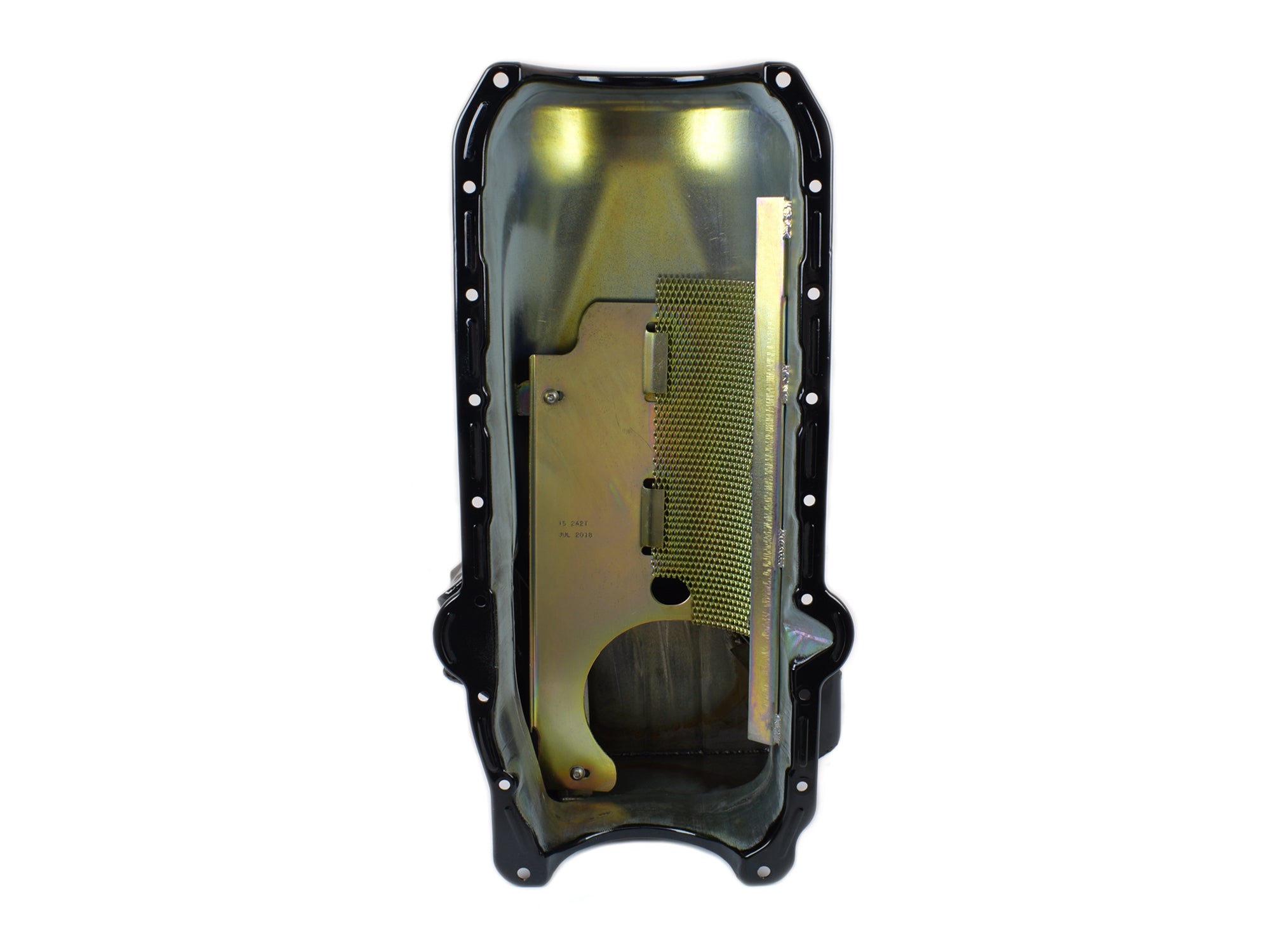

  • Triple Trap Door Baffle
  • Crank Scraper
  • Built In Screen Windage Tray
  • 1/2" NPT Temperature Bung
  • Provision for Pan Mounted Dipstick
  • Magnetic Drain Plug
  • 20mm Fitting for Low Warning Sender

Attributes:

  • GTIN: 00887753712196
  • Brand Name: Canton
  • Feature 2: Crank Scraper
  • Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
  • Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
  • Drain Plug Included: Yes
  • Dipstick Port: No
  • Crank Scraper Included: Yes
  • Capacity: 6 Quart System Capacity
  • Baffled: Yes
  • Windage Tray Included: Yes
  • Stoke: 3.75 inches
  • Recommended Accessory 7: 88-100T ? SBC 86+ Oil Pan Gasket
  • Recommended Accessory 6: 22-405 - 20MM Plug for Oil Level Sender Port
  • Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
  • Feature 3: Bolt in Windage Tray
  • Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV
  • Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
  • Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Finish: Black Powdercoat
  • Feature 5: 20mm Fitting for GM Low Oil Warning Sender
  • Feature 4: 1/2" NPT Temperature Bung
  • Feature 1: Trap Door Baffle for Oil Control

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 17 lb
