$99.20 off

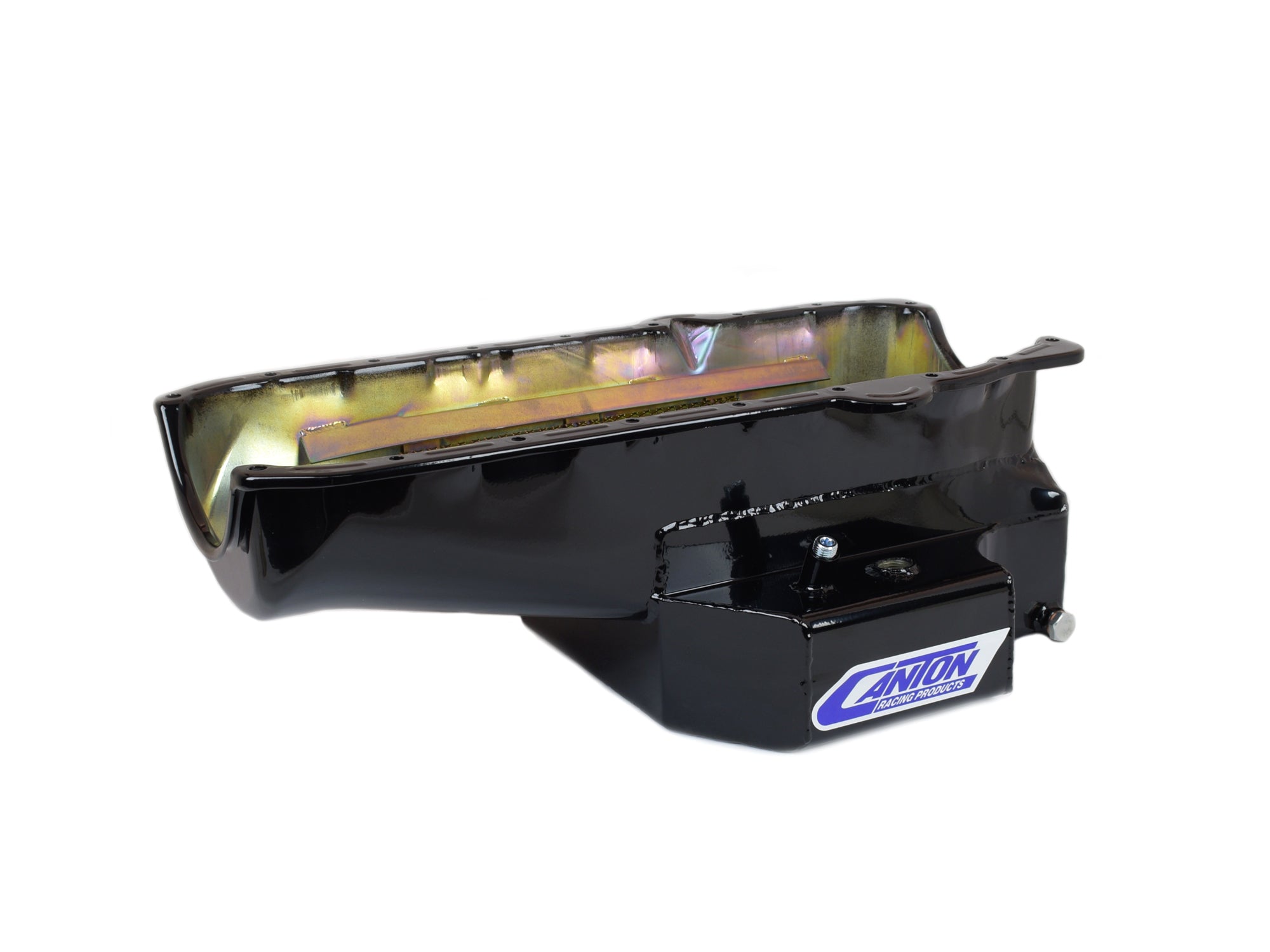

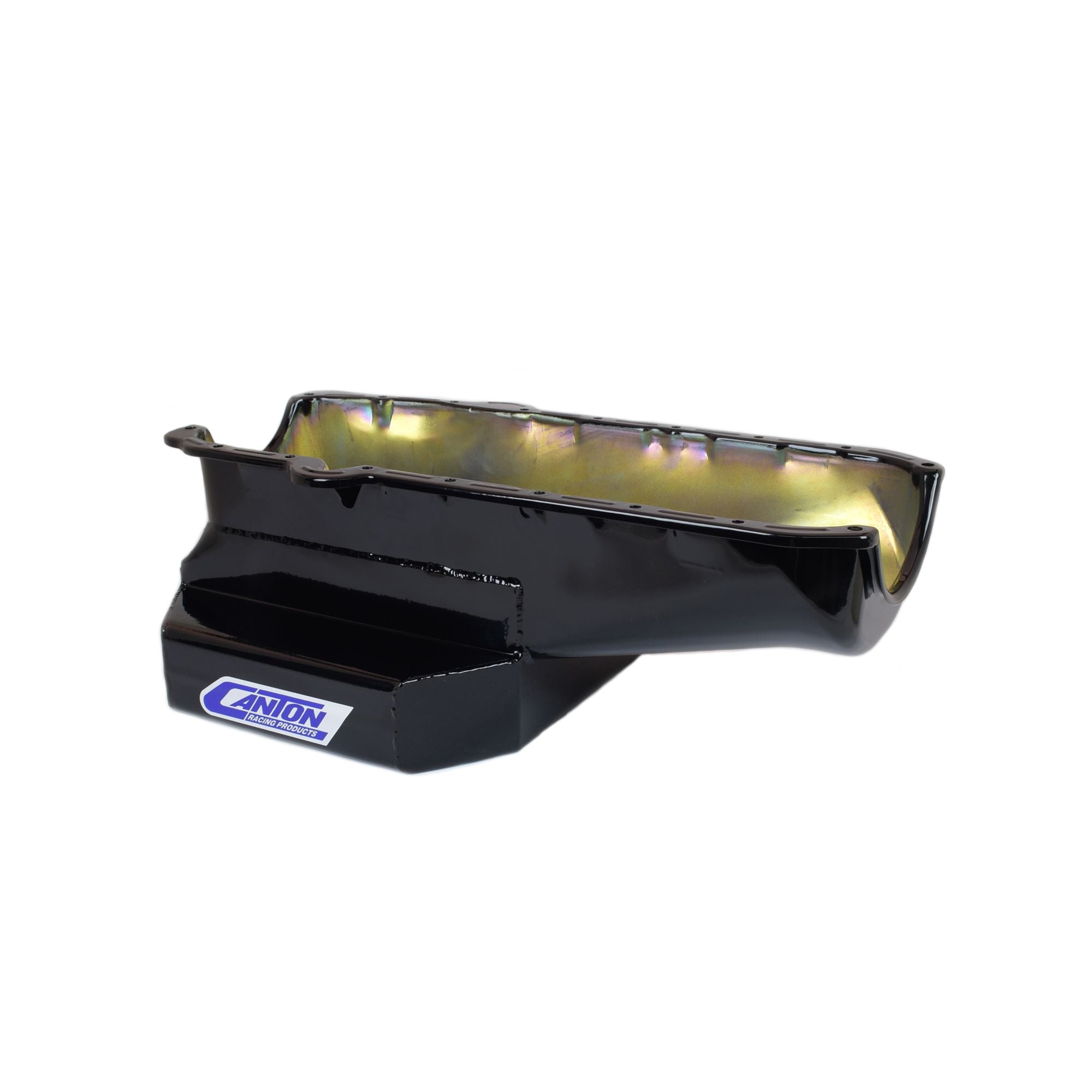

Canton 15-260BLK Oil Pan Small Block Chevy 12in Long Sump Pre-1980 Road Race Pan

$496.00 USD $595.20
By Canton
SKU: BGTF-15-260BLK
Minus Plus
More details Right
This black powder coat SBC road race pan is for pre-?80 blocks with left side dipstick. It is designed as a general purpose road race oil pan to fit in most applications, including front steer chassis with aftermarket or Camaro front ends. It has a 7-1/2" deep, 13-3/4" wide, 12" long sump with an 8 quart system capacity. This pan requires one of our pickups.
  • 8 qt System Capacity
  • Five Trap Door Baffles
  • Crank Scraper
  • Built In Screen Windage Tray
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • Black Powder Coat

Attributes:

  • GTIN: 00887753712318
  • Brand Name: Canton
  • Baffled: Yes
  • Material: 16 Gauge Steel
  • Sump Width: 10.5 inches
  • Sump Depth: 7.5 inches
  • Stoke: 3.75 inches
  • Recommended Accessory 8: 88-100 ? SBC Pre ?85 Oil Pan Gasket
  • Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
  • Recommended Accessory 4: 20-023 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
  • Recommended Accessory 3: 20-020 - Pickup for SBC High Volume Oil Pump M55HV
  • Recommended Accessory 2: 20-013 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
  • Recommended Accessory 1: 20-010 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
  • Pickup Included: No
  • Kicked Out: Yes
  • Capacity: 8 Quart System Capacity
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Finish: Black Powdercoat
  • Feature 5: Provision for Pan Mounted Dipstick
  • Feature 4: 1/2" NPT Temperature Bung
  • Feature 3: Bolt in Windage Tray
  • Feature 2: Crank Scraper
  • Feature 1: Trap Door Baffle for Oil Control
  • Engine: For S.B. Chevy Pre-1980 Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: Yes
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24 x 16 x 10 inches
  • Weight: 19 lb
