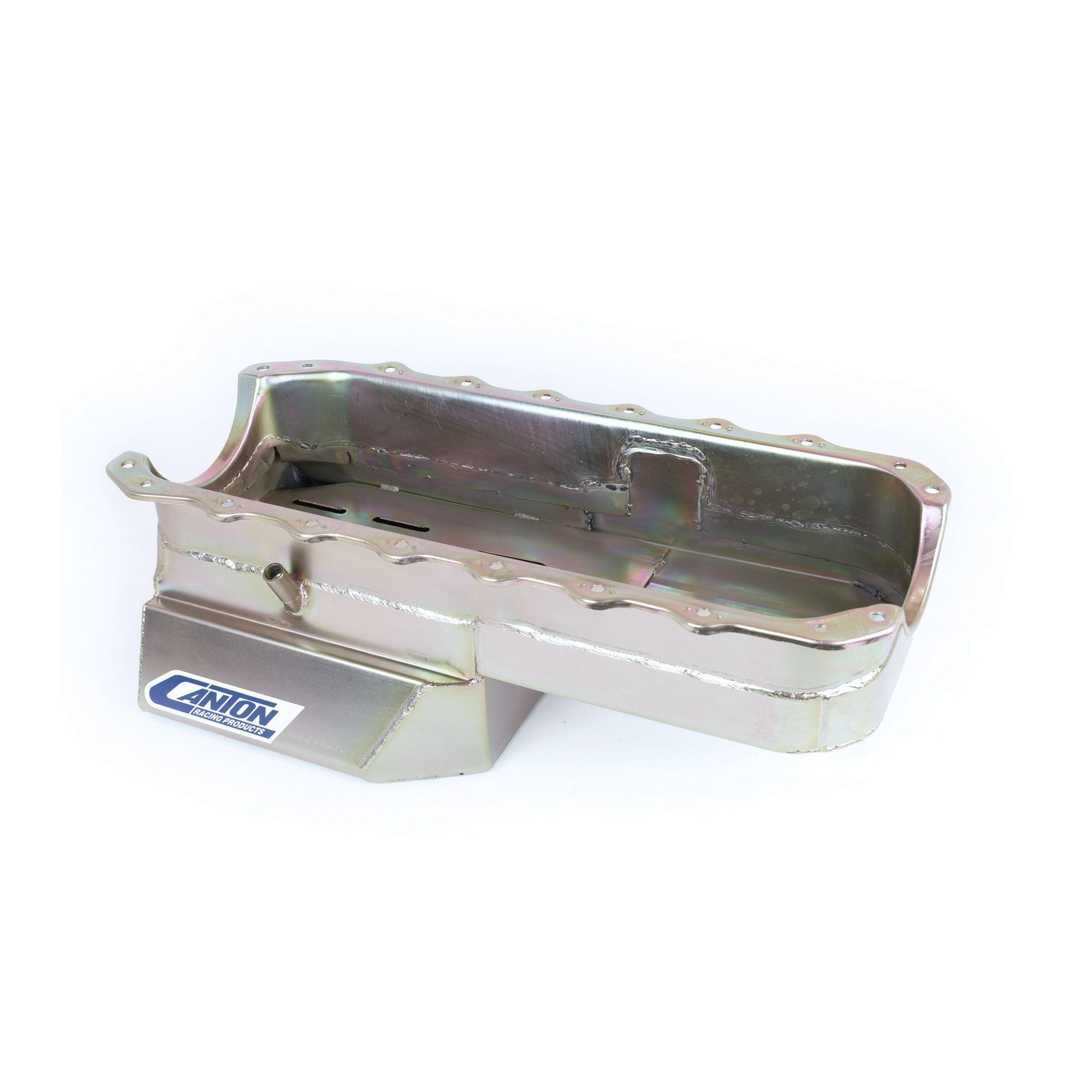

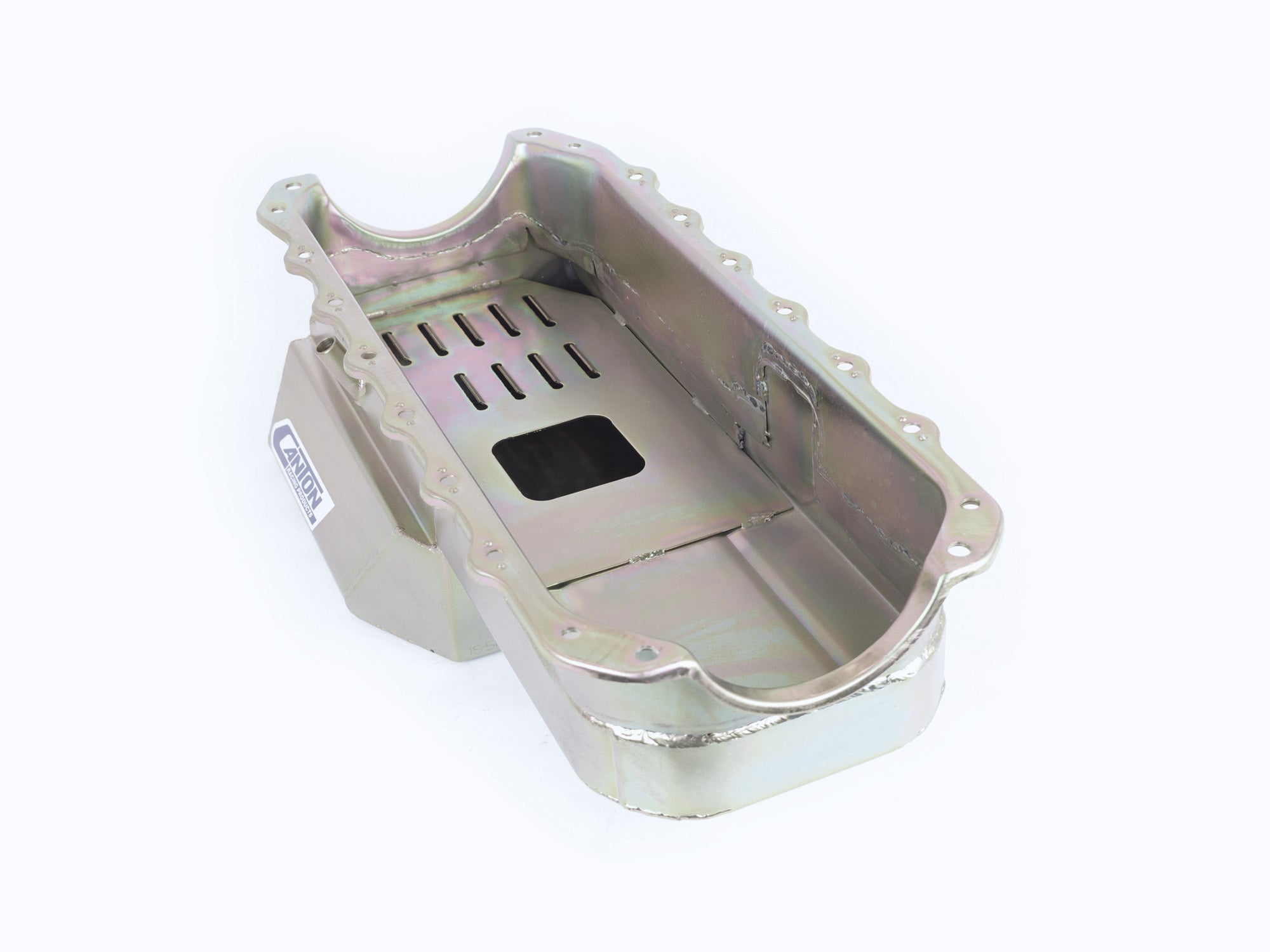

Canton 15-580 Oil Pan For Holden V-8 Front Sump Street Strip Pan

The Canton 15-580 front sump street oil pain is for the Australian market Holden V8. It has a larger oil capacity than stock but retains the same depth through the use of a T sump. Another important feature is it's louvered slosh baffle that offers better control over oil pan windage freeing up horsepower and keeping the oil where it belongs around the pickup. The gold iridite plated finish makes for good looks and a long lasting rust free service life. This oil pan requires our 15-591 oil pickup.

• 7 qt System Capacity
• Louvered Anti slosh baffle/windage tray
• Provision for 1/4' NPT Dipstick (Passenger Side)
• Magnetic Drain Plug
• Room for main stud girdle

Attributes:

• GTIN: 00887753712691
• Brand Name: Canton
• Baffled: Yes
• Gasket or Seal Included: No
• Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
• Recommended Accessory 1: 15-581 - Required Oil Pickup For the 15-580 Pan
• Pickup Included: No
• Material: 16 Gauge Steel
• Kicked Out: Yes
• Hardware Included: No
• Finish: Silver Plating
• Capacity: 7 Quart / 6.5 Liter System Capacity
• Feature 5: Room for main stud girdle
• Feature 4: Magnetic Drain Plug
• Feature 3: Provision for 1/4' NPT Dipstick (Passenger Side)
• Feature 2: Louvered Anti slosh baffle/windage tray
• Feature 1: 7 qt System Capacity
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 26 x 13.5 x 9.5 inches
• Weight: 13.6 lb
