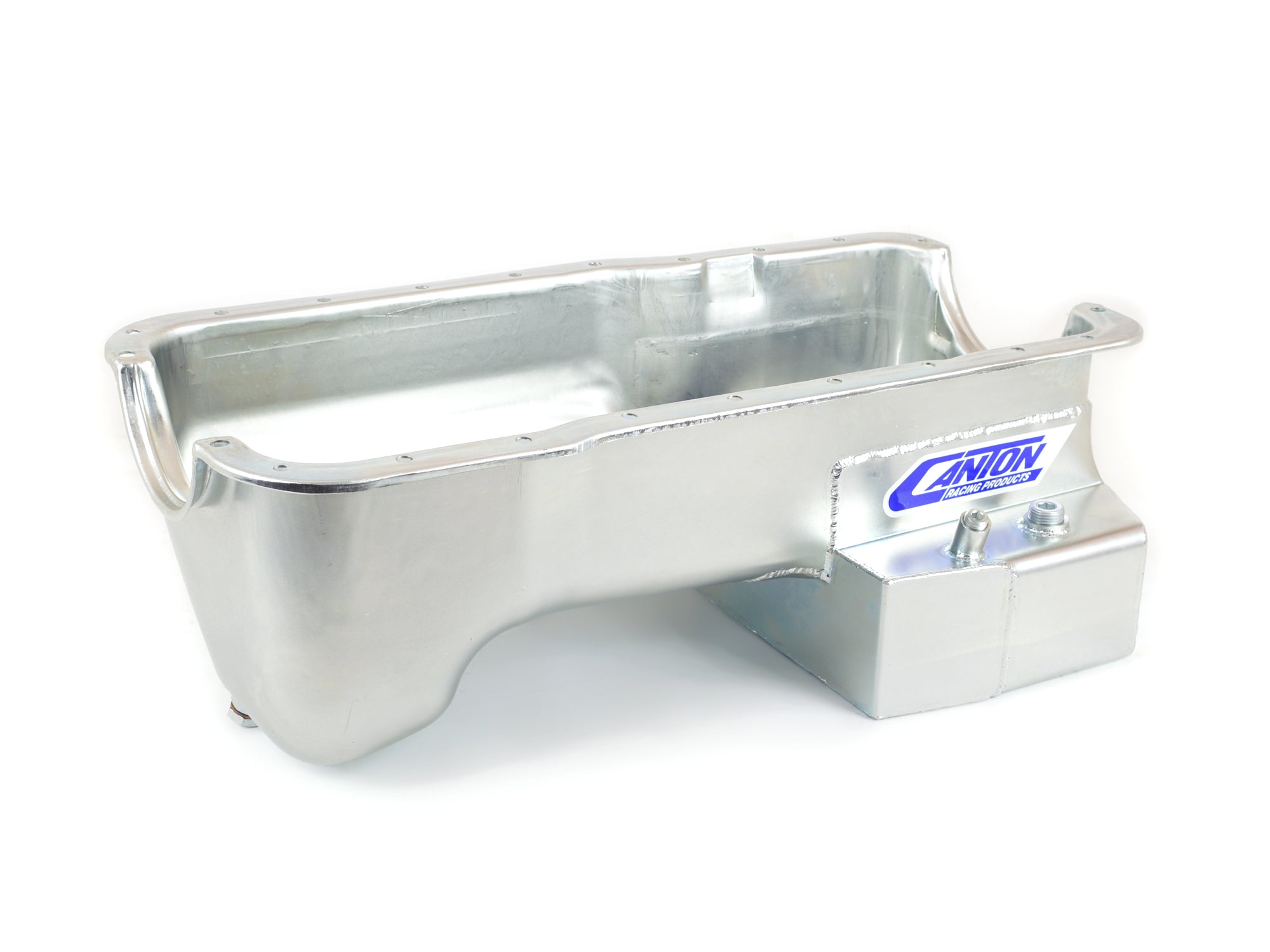

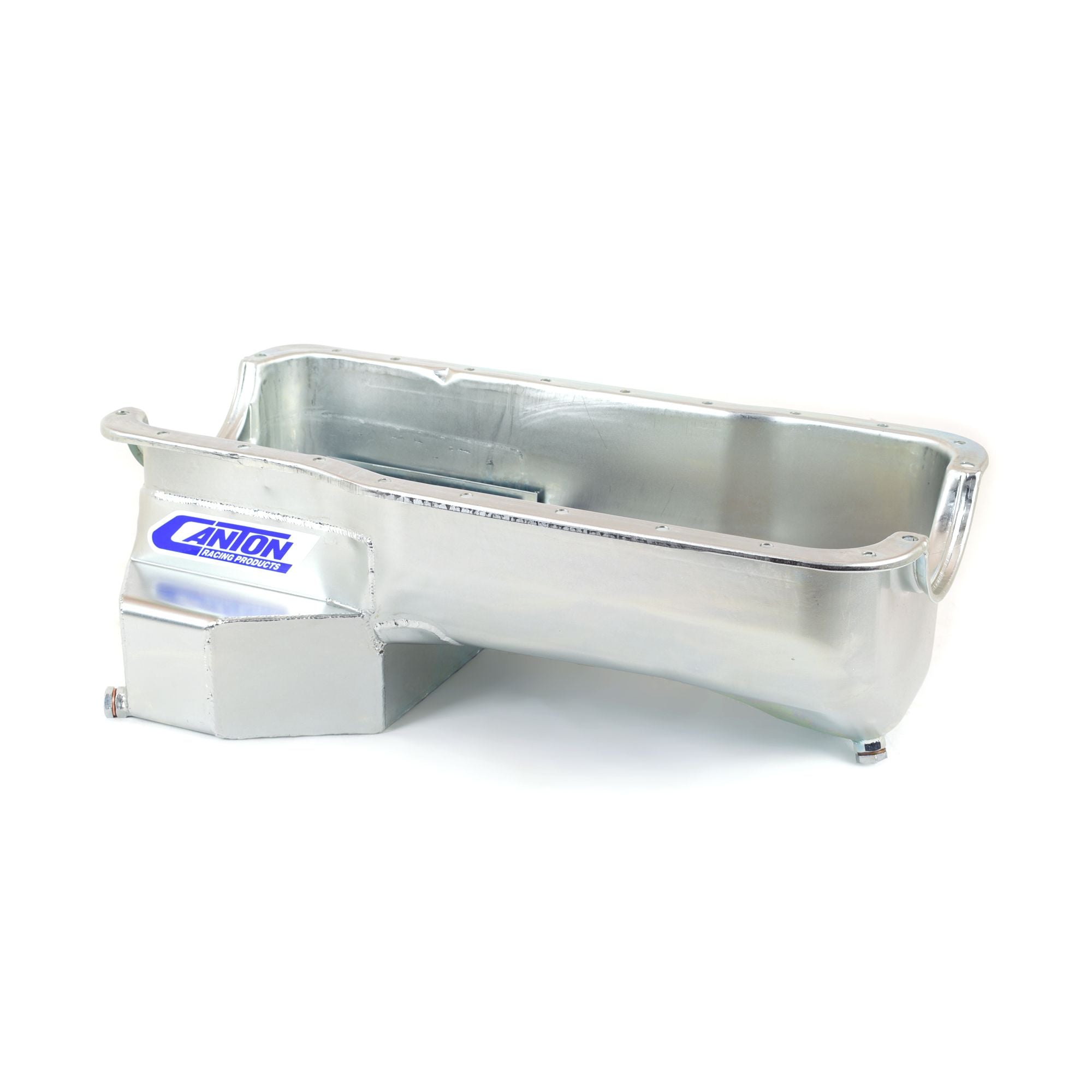

Canton 15-694S Oil Pan For Ford 351W Rear T Sump Road Race Pan With No Scraper

$545.00 USD $654.00
By Canton
SKU: BGTF-15-694S
Minus Plus
More details Right
This "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep 8" long by 13-1/2" wide sump and a 7 quart system capacity. This pan requires our 15-695 pickup. Pan does not include crank scraper to provide main support clearance. Some long tube headers require modification. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
  • 7 qt System Capacity
  • Retains Stock Depth
  • Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753713254
  • Brand Name: Canton
  • Baffled: Yes
  • Hardware Included: No
  • Stoke: 4.0 inches
  • Recommended Accessory 7: 88-652 ? Small Block Ford 351W One Piece Oil Pan Gasket
  • Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 4: 20-953 - Pickup Mounting Stud for 351W Based Engines
  • Recommended Accessory 3: 20-962 Ford 351W Main Support Mounted Windage Tray
  • Recommended Accessory 2: 21-062 - Canton Steel 351W Main Support
  • Recommended Accessory 1: 15-695 - Pickup with 3/4" Dia. Inlet
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Gasket or Seal Included: No
  • Capacity: 7 Quart System Capacity
  • Finish: Silver Plating
  • Feature 7: Magnetic Drain Plug
  • Feature 6: Provision For Our Pan Mounted Dipstick
  • Feature 5: 1/2" NPT Temperature Bung
  • Feature 4: Removable Windage/Anti-Slosh Baffle
  • Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Feature 2: Retains Stock Depth
  • Feature 1: 7 qt System Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 17 lb
