Canton 18-382 Oil Pan Big Block Chevy Mark 5 Gen 6 Deep Sump Offshore Marine Pan

$569.00 USD $682.80
By Canton
SKU: BGTF-18-382
Minus Plus
More details Right

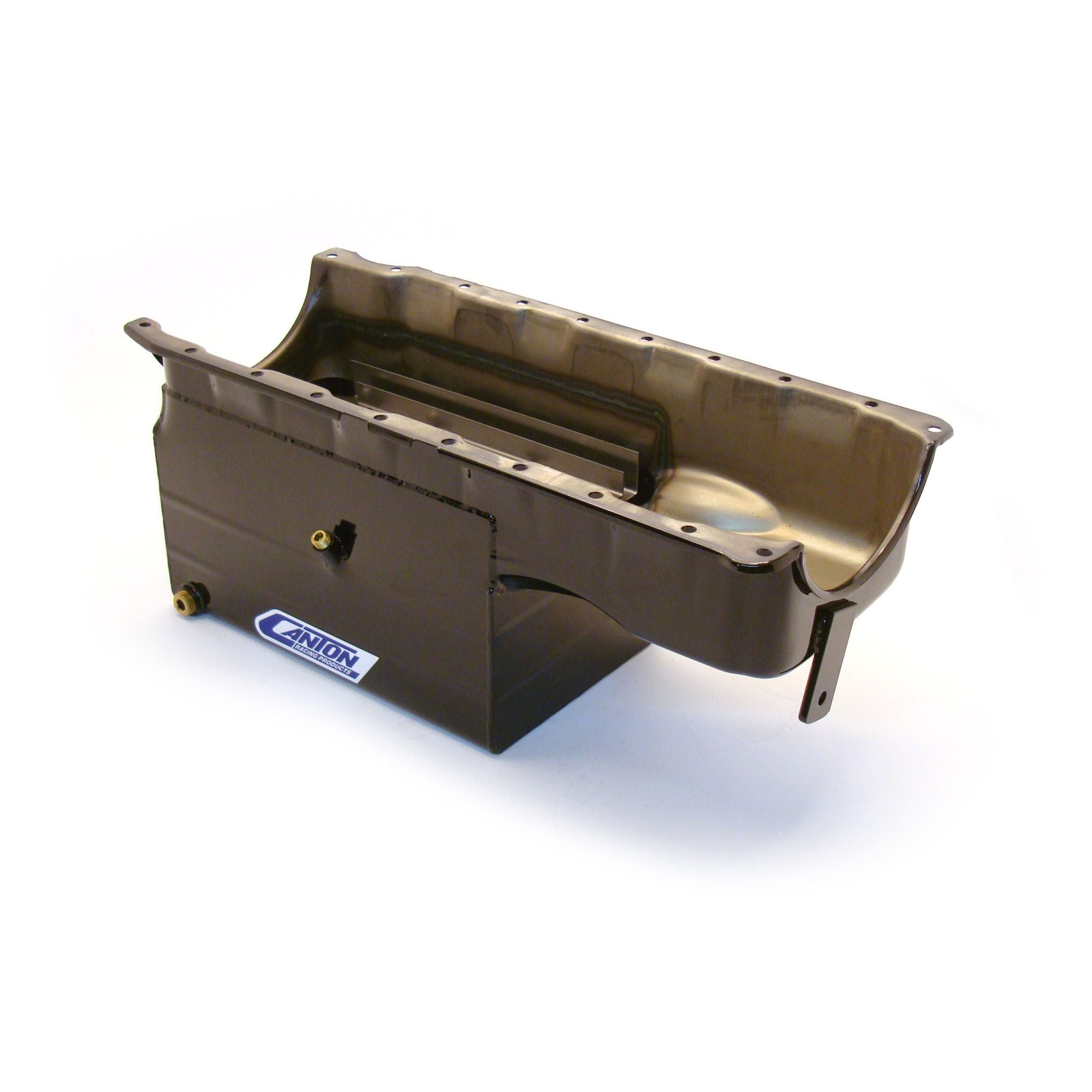

This Big Block Chevy heavy duty extra deep Marine oil pan is for Mark V style Big Blocks with 1 piece rear seal and is designed for offshore racing. The 10" deep, 14" long sump holds 10 quarts of oil. This pan requires our 18-381 pickup.
  • 10 qt Pan Capacity
  • 14 ga. Steel Construction

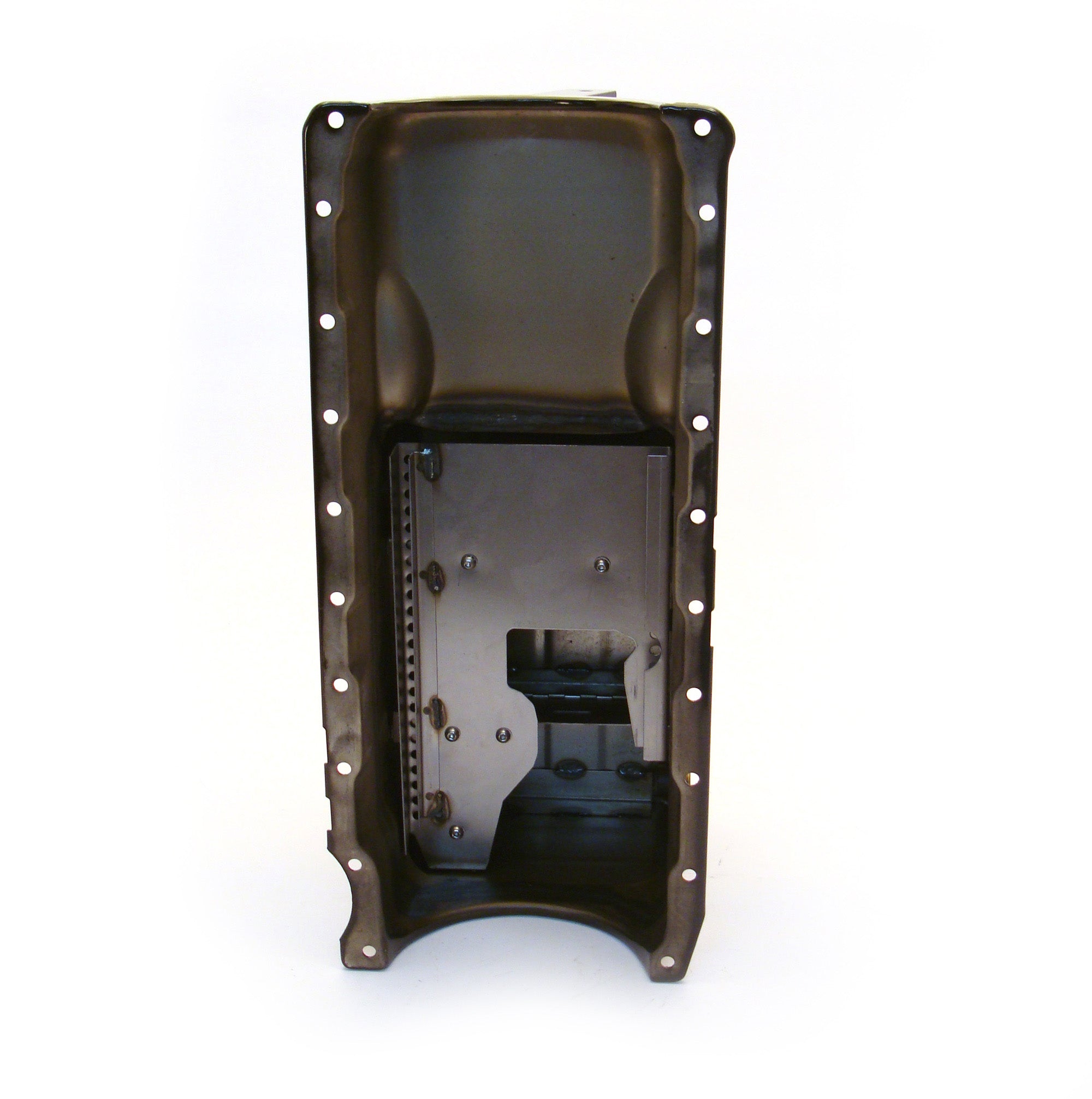

  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Drain Fitting
  • Provision for our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection

Attributes:

  • GTIN: 00887753714473
  • Brand Name: Canton
  • Baffled: Yes
  • Gasket or Seal Included: No
  • Sump Width: 8.25 inches
  • Sump Depth: 10 inches
  • Stoke: 4.5 inches
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 1: 18-381 - Our Special Pickup Built From Extra Heavy Wall Tubing
  • Pickup Included: No
  • Material: 14 Gauge Steel
  • Kicked Out: No
  • Hardware Included: No
  • Finish: Black Gloss Powdercoat
  • Capacity: 10 Quart System Capacity
  • Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
  • Feature 6: Provision for our Pan Mounted Dipstick
  • Feature 5: 1/2" NPT Drain Fitting
  • Feature 4: Removable Windage/Anti-Slosh Baffle
  • Feature 3: Double Trap Door Baffles
  • Feature 2: 14 ga. Steel Construction
  • Feature 1: 10 qt Pan Capacity
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 24 lb
