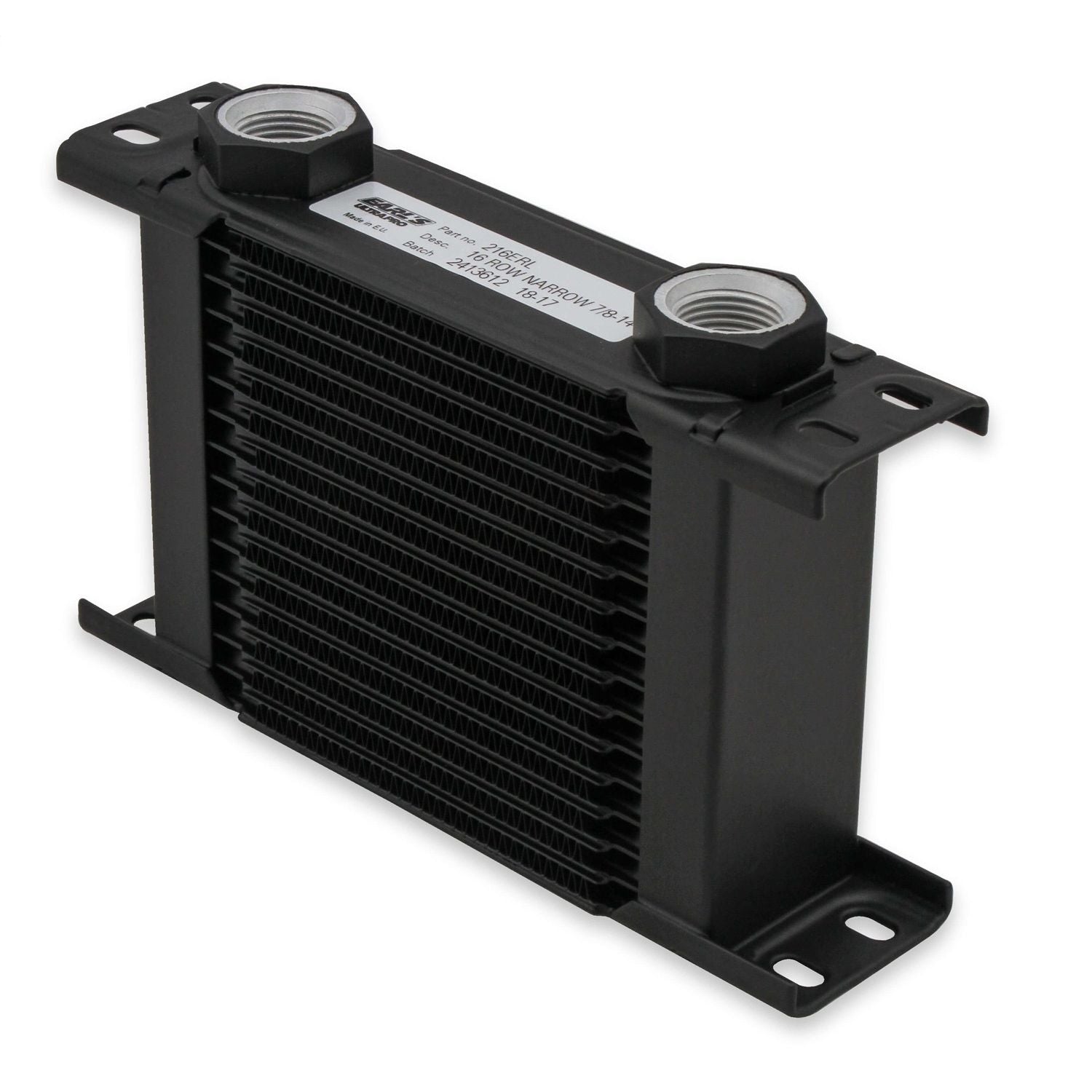

Earl's new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e..engine oil cooler, transmission cooler, power steering cooler,valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN,-10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow.
- High Quality
- State Of The Art Brazing Technology
- Highly Efficient
- Extremely Durable
Additional Attributes:
- GTIN: 00090127039960
- Body Width: 8.250 in.
- Bracket Included: No
- Capacity: 0.80 qt.
- Construction: Stacked Plate - Brazed
- Engine Oil BTU Range: 33000-45000
- Finish: Black
- Fitting Centers: 4.800 in.
- Fitting Number: 585106ERL
- Fittings Included: No
- Item Height: 18.310 in.
- Item Weight: 4.420 lbs.
- Material: Aluminum
- Mounting Bracket Number: 200ERL
- Mounting Bracket Width: 7.500 in.
- Port Size: 0.875 in. -14 Female (-10 O-Ring Boss)
- Product Line: UltraPro
- Radiator Core Row Quantity: 60
- Thickness: 2.000 in.
- WARNING CA Proposition 65: No
- Width: Narrow Cooler
- Width (Less Mounting Ears): 6.438 in.
Extened Information:
- Emissions : Legal US
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 27.0000 x 13.0000 x 2.0000 inches
