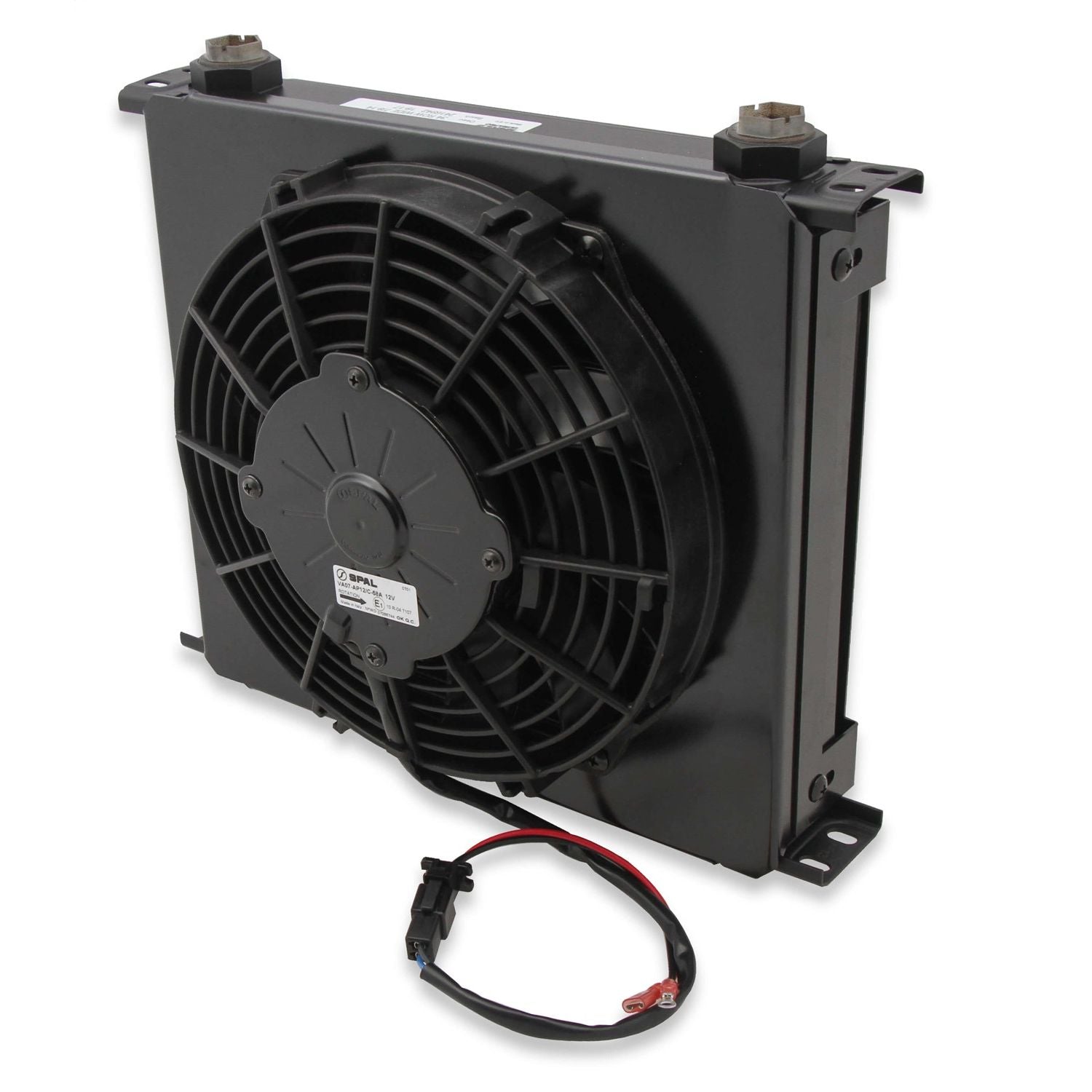

Earl's new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e..engine oil cooler, transmission cooler, power steering cooler,valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN,-10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow.
- High Quality
- State Of The Art Brazing Technology
- Highly Efficient
- Extremely Durable
Additional Attributes:
- GTIN: 00090127039120
- Fan Type: Electric
- Finish: Black
- Fitting Centers: 9.530 in.
- Fitting Number: 585106ERL
- Fittings Included: No
- Item Height: 10.390 in.
- Item Weight: 8.950 lbs.
- Material: Aluminum
- Max Fan CFM: 708
- Mounting Bracket Number: 400ERL
- Mounting Bracket Width: 12.200 in.
- Port Size: 0.875 in. -14 Female (-10 O-Ring Boss)
- Product Line: UltraPro w/ Fan Pack
- Radiator Core Row Quantity: 34
- Shroud Material: Aluminum
- Thickness: 4.380 in.
- Voltage: 12 V
- WARNING CA Proposition 65: Yes
- WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Width: Wide Cooler
- Width (Less Mounting Ears): 11.125 in.
- Amperage Draw: 7.4
- Blade Quantity: 10
- Blade Type: Curved
- Body Width: 13.000 in.
- Bracket Included: No
- Capacity: 0.75 qt.
- Construction: Stacked Plate - Brazed
- Engine HP Range: 400-475
- Engine Oil BTU Range: 43000-59000
- Fan Diameter: 9.000 in.
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 18.0000 x 18.0000 x 8.0000 inches
