Flex-A-Lite - Extruded Core Radiator

$1,127.22 USD
By Flex-A-Lite
SKU: BDXM-315561
Minus Plus
More details Right

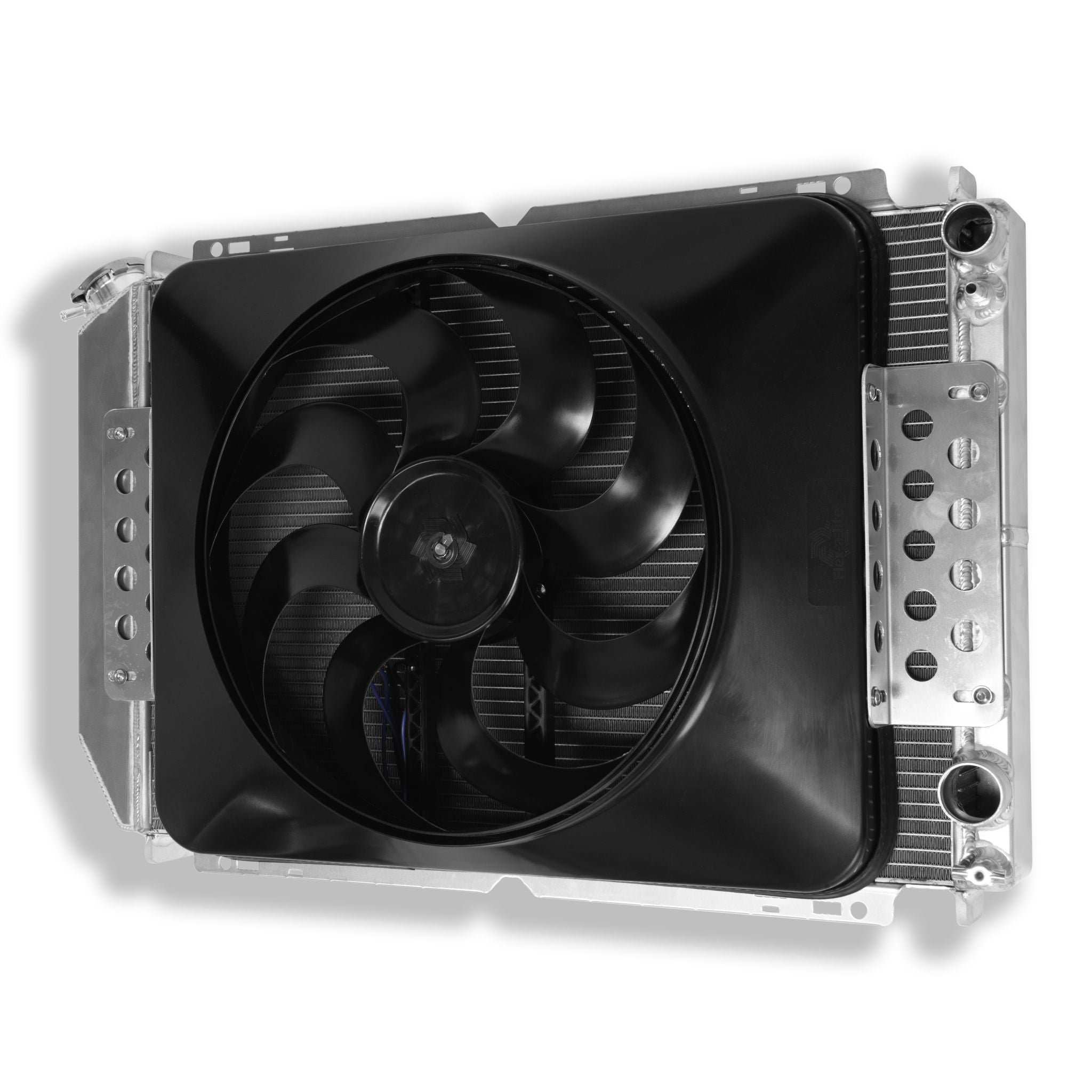

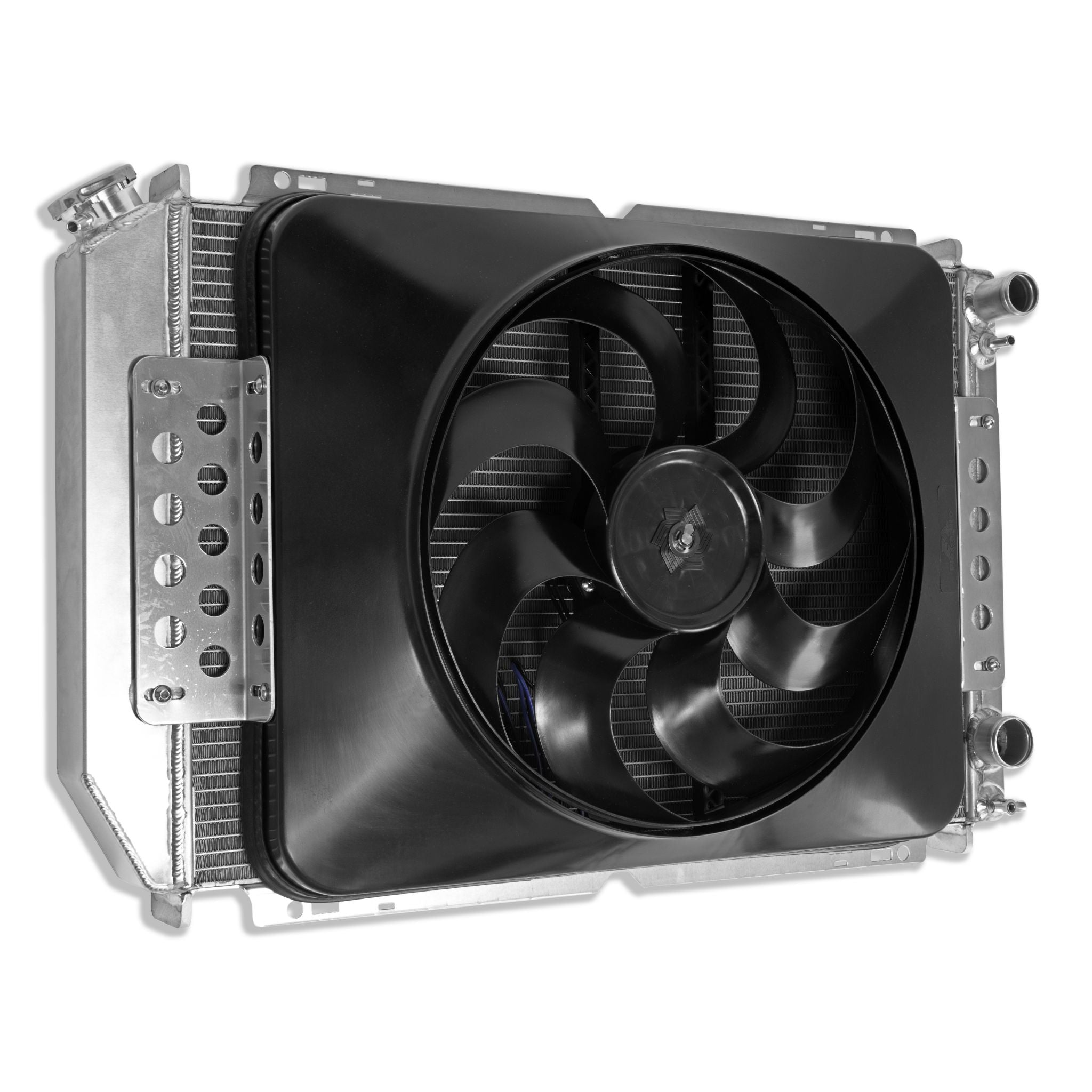

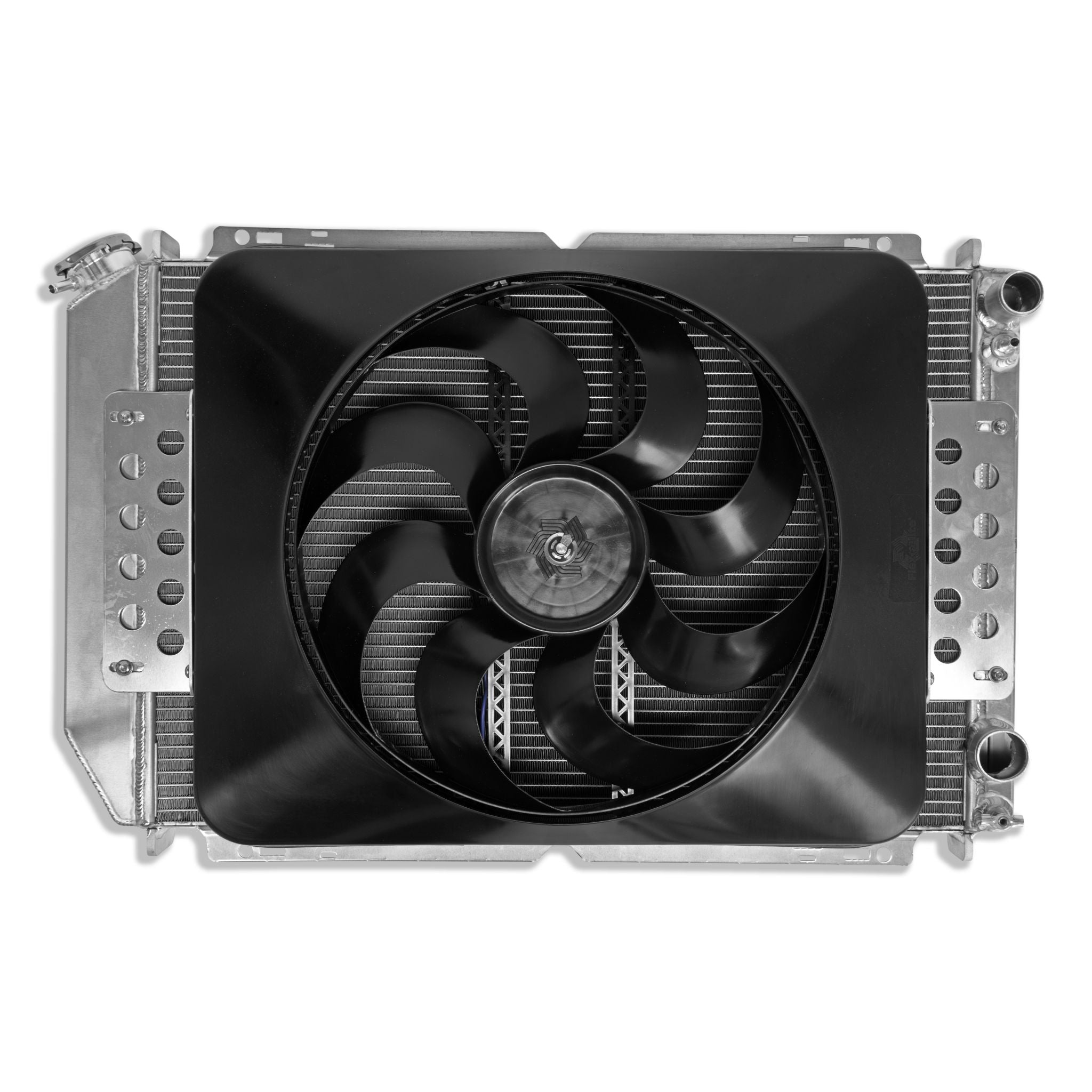

1979-1993 Fox Body Mustang LS Rad/ Fan/Combo

Additional Attributes:

  • GTIN: 00088657810364
  • Airflow (CFM): 3300
  • Amp Draw: 18
  • CFM: 3300
  • Controller: Adjustable Thermostat with A/C Relay
  • Core Height (in): 17.24
  • Core Thickness (in): 2.56
  • Core Width (in): 24.5
  • Fan Diameter (inches): 15
  • Flex-A-Lite Electric Fan PN: 180
  • Flex-A-Lite Electric Fan: 180
  • Fuse Rating: 40
  • Inlet Location (Upper/Lower Passenger/Driver Side): Upper Passenger's Side
  • Inlet Size (in): 1.25
  • Item Depth: 6.24
  • Item Height: 18.99
  • Item Width: 28.75
  • Meta Description: Direct-fit Flex-A-Lite Extruded Core performance aluminum radiator with fully-shrouded Black Magic Xtreme S-Blade electric fan for 1979-1993 Fox Body Mustang with LS engine swap.
  • Meta Tags: aluminum radiator, performance, extruded core, electric fan, black magic, fox body, ford mustang, ls engine
  • Meta Title: Flex-A-Lite Extruded Core Radiator and Electric Fan 1979-1993 Fox Body Mustang LS Engine
  • Number of Blades: 8
  • Outlet Location (Upper/Lower Passenger/Driver Side): Lower Passenger's Side
  • Outlet Size (in): 1.5
  • Overall Height (in): 18.99
  • Overall Thickness (in): 6.24
  • Overall Width (in): 28.75
  • Product Name: Flex-A-Lite Extruded Core Radiator and Electric Fan 1979-1993 Fox Body Mustang LS Engine
  • Radiator Style (Downflow/Crossflow): Crossflow
  • Reversible: Yes
  • Rotation: Standard
  • Voltage: 12
  • Weight: 27
  • With Fan: Yes

Extened Information:

  • Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 13 x 45 x 27 inches
