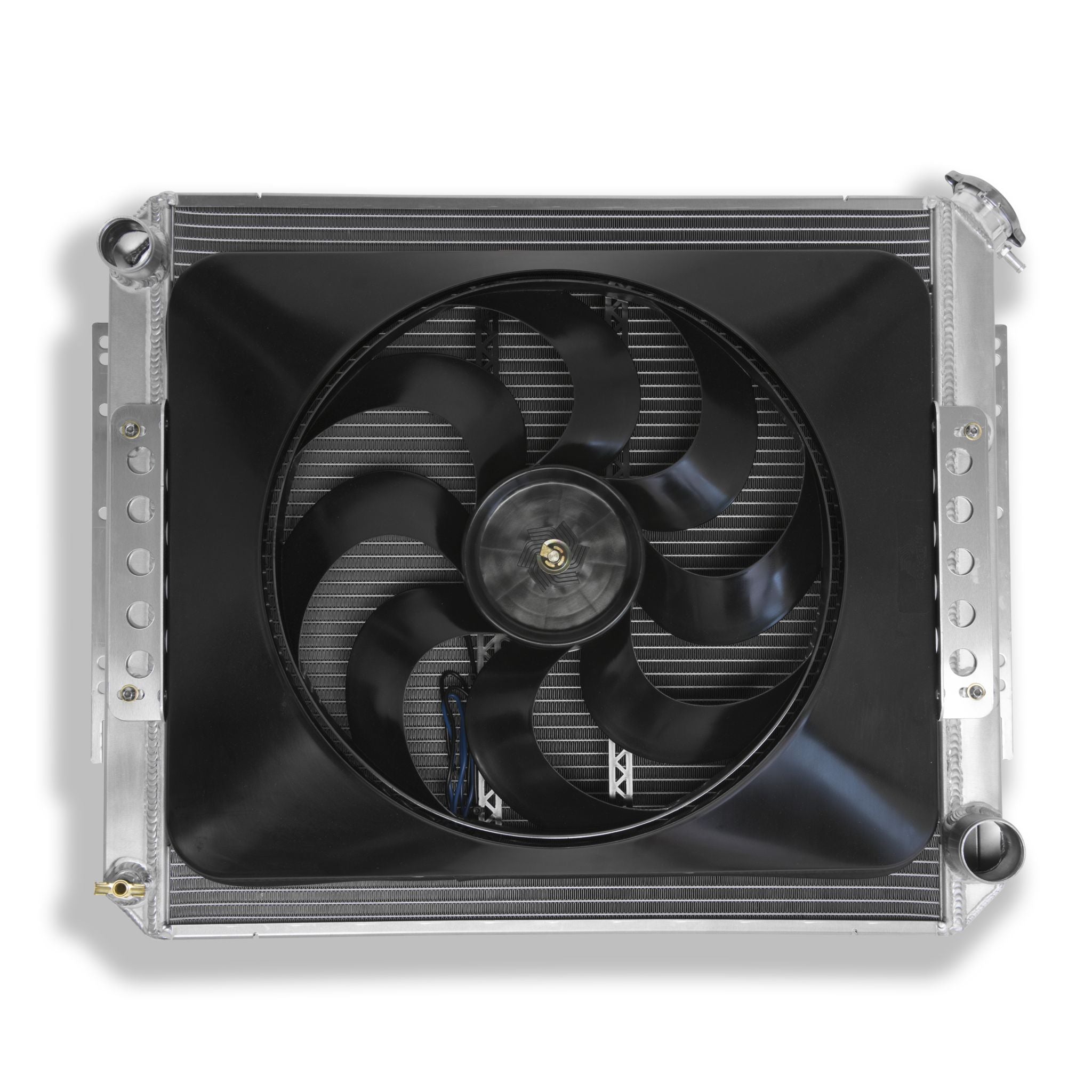

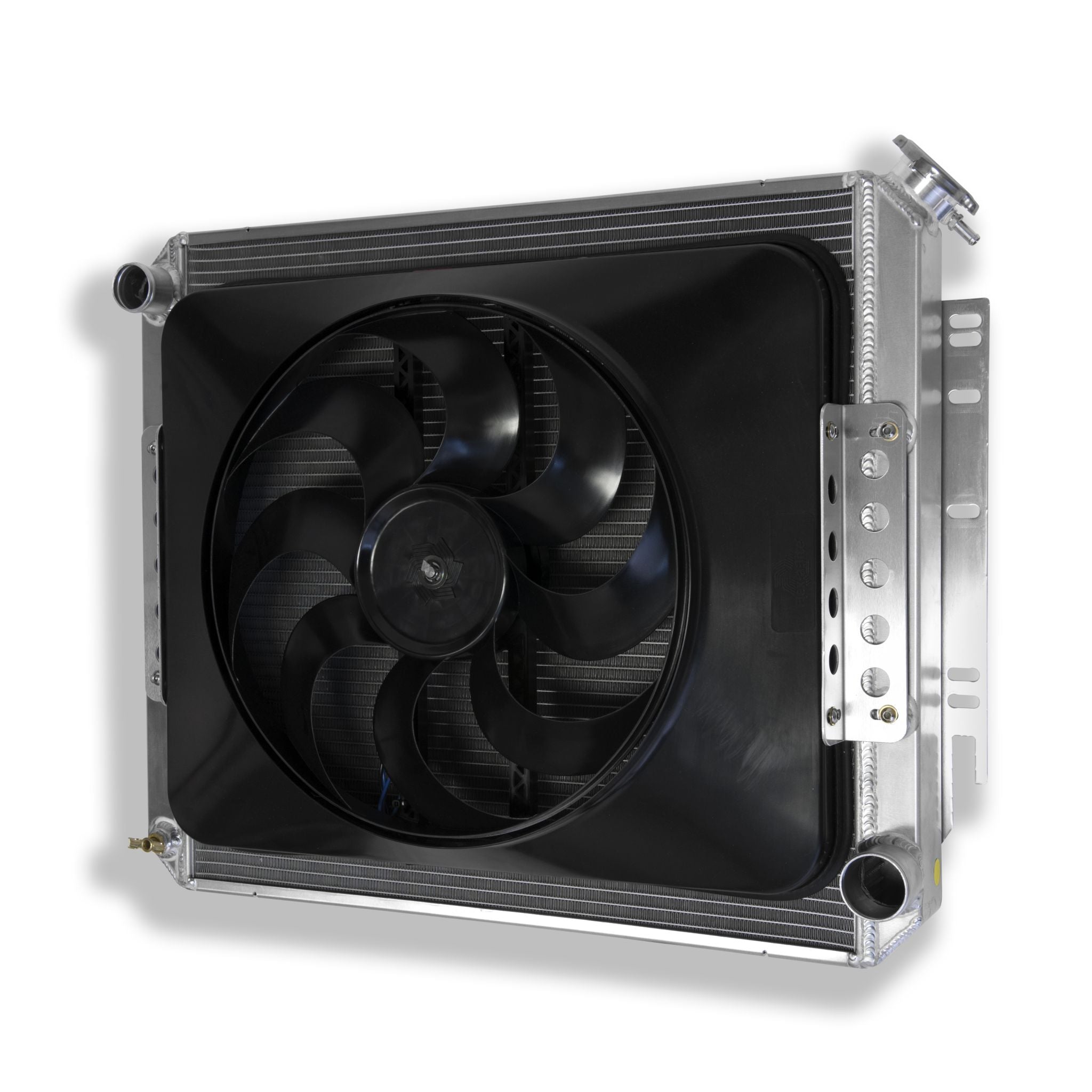

Flex-A-Lite - Extruded Core Radiator

$1,104.92 USD
By Flex-A-Lite
SKU: BDXM-316160
Minus Plus
More details Right
1964-1967 Chevelle (and other GM A-Bodies Rad/ Fan/Combo

Additional Attributes:

  • GTIN: 00088657810425
  • Airflow (CFM): 3300
  • Amp Draw: 18
  • CFM: 3300
  • Controller: Adjustable Thermostat with A/C Relay
  • Core Height (in): 21.19
  • Core Thickness (in): 2.56
  • Core Width (in): 22
  • Fan Diameter (inches): 15
  • Flex-A-Lite Electric Fan PN: 180
  • Flex-A-Lite Electric Fan: 180
  • Fuse Rating: 40
  • Inlet Location (Upper/Lower Passenger/Driver Side): Upper Driver's Side
  • Inlet Size (in): 1.5
  • Item Depth: 6.24
  • Item Height: 21.35
  • Item Width: 25.68
  • Meta Description: Direct-fit Flex-A-Lite Extruded Core performance aluminum radiator and dual electric fan system for 1968-1972 Chevelle and other GM A-Bodies.
  • Meta Tags: aluminum radiator, performance, extruded core, chevelle, electric fan
  • Meta Title: Direct-fit Flex-A-Lite Extruded Core performance aluminum radiator and electric fan for 1964-1967 Chevelle and other GM A-Bodies.
  • Number of Blades: 8
  • Outlet Location (Upper/Lower Passenger/Driver Side): Lower Passenger's Side
  • Outlet Size (in): 1.75
  • Overall Height (in): 21.35
  • Overall Thickness (in): 6.24
  • Overall Width (in): 25.68
  • Product Name: Flex-A-Lite Extruded Core Radiator and Electric Fan 1964-1967 Chevelle and other GM A-Bodies
  • Radiator Style (Downflow/Crossflow): Crossflow
  • Reversible: Yes
  • Rotation: Standard
  • Voltage: 12
  • Weight: 31.5
  • With Fan: Yes

Extened Information:

  • Emissions : Not Legal For C.A.R.B. - This part is not legal for sale or use in C.A.R.B. restricted areas
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 13 x 38 x 27 inches
