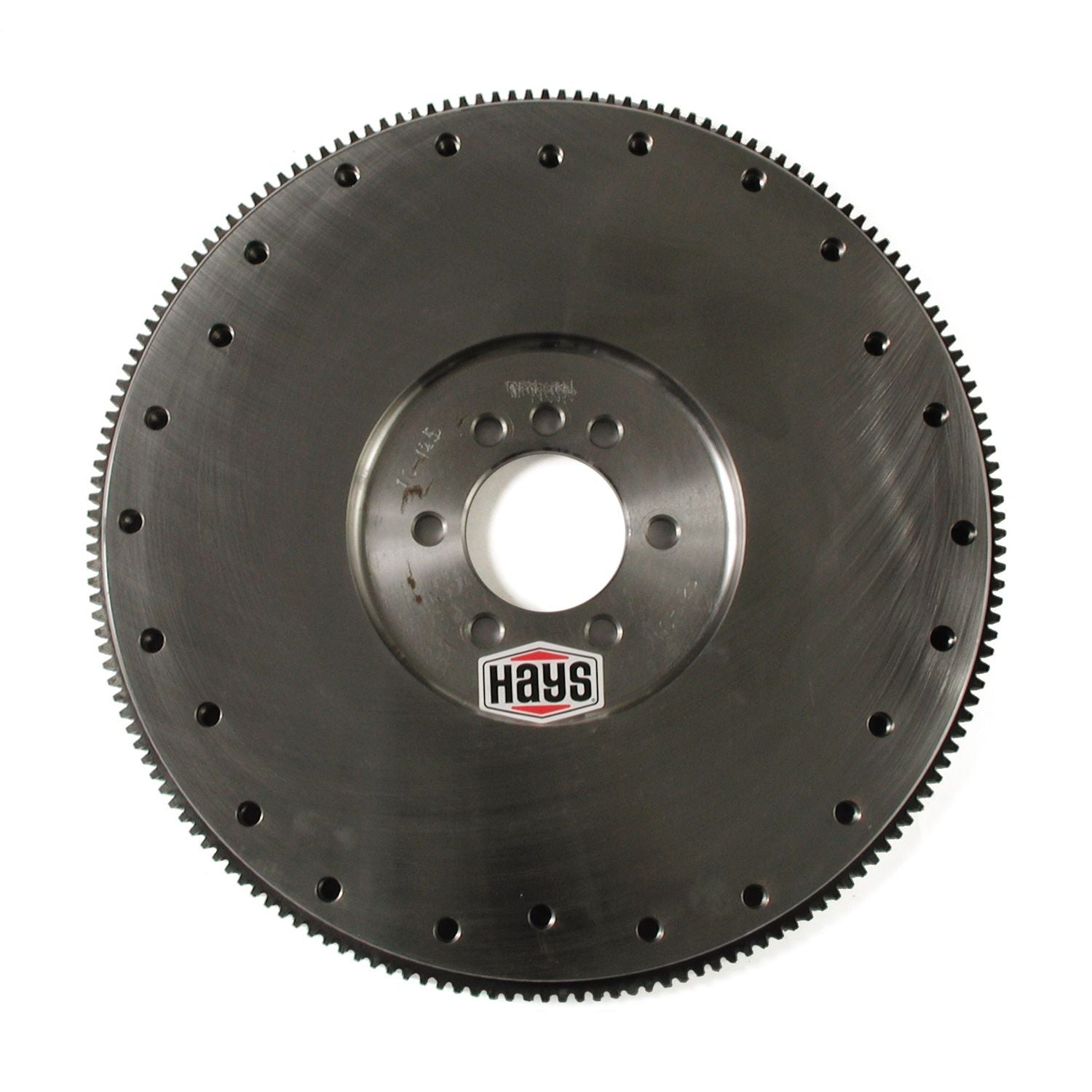

Hays steel flywheels are manufactured from certified billet material that will not break up under the stress of high RPM and severe punishment of racing. The 25 pound flywheel fits the SBC, BBC , except for 400 and 454 motors, with 2 piece rear main seal. It has a 168 tooth ring gear. The flywheel is drilled for 11 in Borg & Beck, Bork & Beck long, and Mark 12 pressure plates. Internal engine balance and S.F.I. 1.1 certified. Bolts included. Other weights and applications available.
- Certified S.F.I. 1.1
- Billet Material
- 25 lbs.
- 168 Tooth Ring Gear
- 11 In B And B And B L Mark 12 Pressure Plates
- Limited 90 Day Warranty
Additional Attributes:
- GTIN: 00084041101254
- Center Bore Diameter: 2.486 in.
- Engine Balance: Internal
- Finish: Steel
- Material: Steel
- SFI Certification: 1.1
- Tooth Quantity: 168
- WARNING CA Proposition 65: No
- Width: 0.870 in.
Extened Information:
- Emissions : Legal US
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 15.6000 x 15.8000 x 1.5000 inches
