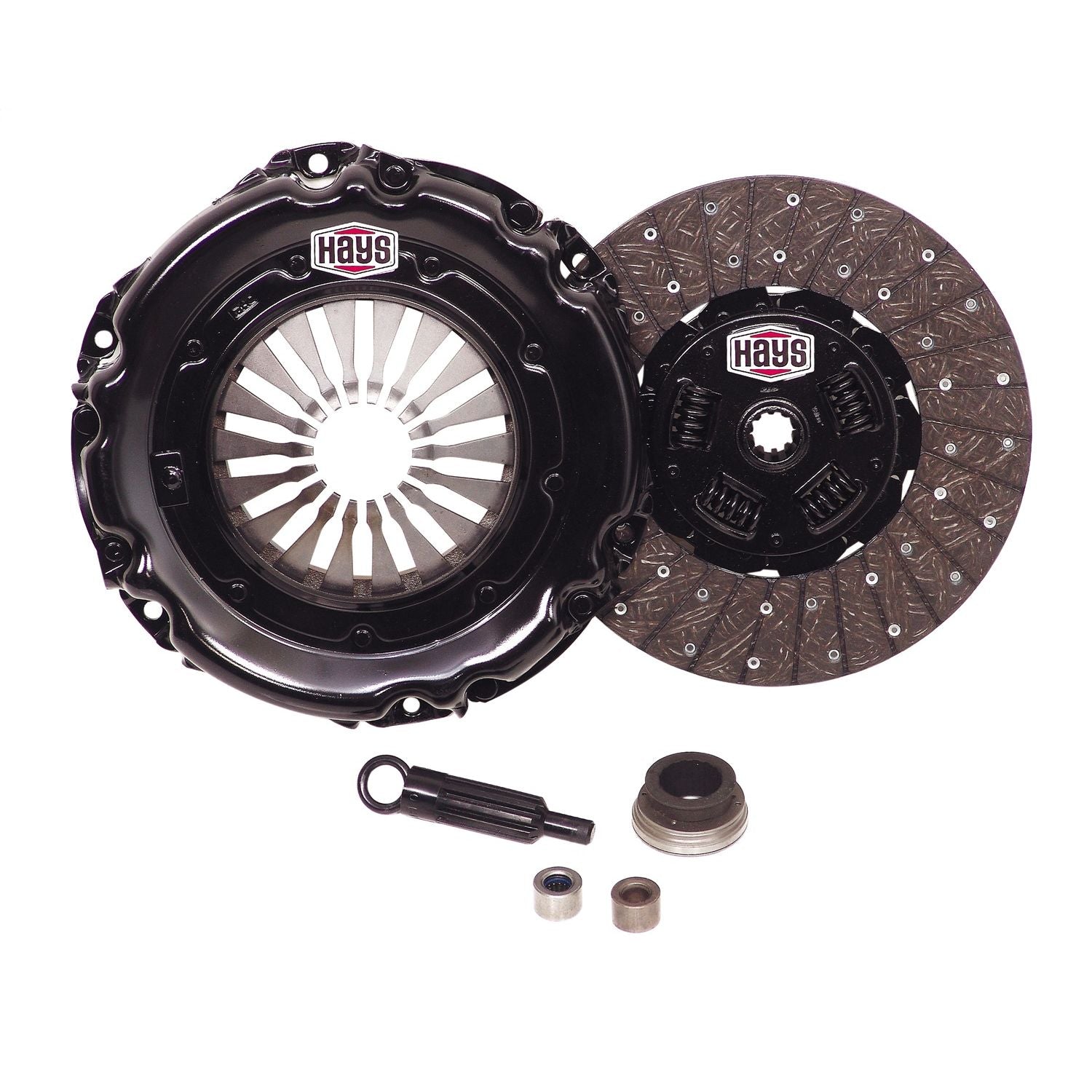

Hays Super Truck clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This kit fits Chevy and GMC truck applications with 12 in clutch and 1-1/8 in 10 spline input shaft. The pressure plate is a diaphragm style, and the clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available.
- 12 In Clutch
- 1-1/8 In 10 Spline Alignment Tool
- Organic Sprung Hub
- Throw Out Bearing Included
Additional Attributes:
- GTIN: 00084041901038
- Alignment Tool Included: Yes
- Disc Diameter: 12.000 in.
- Disc Material: Organic
- Disc Type: Spring Hub
- Input Shaft Diameter: 1.125 in.
- Input Shaft Spline Quantity: 10
- Material: Steel
- Maximum Horsepower: 558
- Pressure Plate Type: Diaphram
- Throwout Bearing Included: Yes
- Torque Capacity: 532 ft/lbs.
- WARNING CA Proposition 65: No
Extened Information:
- Emissions : Legal US
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 13.9000 x 14.6000 x 3.6000 inches
