HEDMAN HEDDERS 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

• 100% Premium T304 Stainless Steel Flange and Tube Construction.
• T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Additional Attributes:

• GTIN: 00732611620109
• Gasket Or Seal Included: Yes
• Bolts/Studs Included: Yes
• Installation Hardware Included: Yes
• Motor Mounts Included: No
• Mounting Hardware Included: Yes
• Collector Bolts Included: Yes
• Crossover Pipe Included: No
• Y-Pipe Included: No
• Catalytic Converter(s) Included: No
• Quantity: Sold as a pair.
• Primary Tube Gauge: 16g
• Primary Tube Diameter (in): 1.625 in.

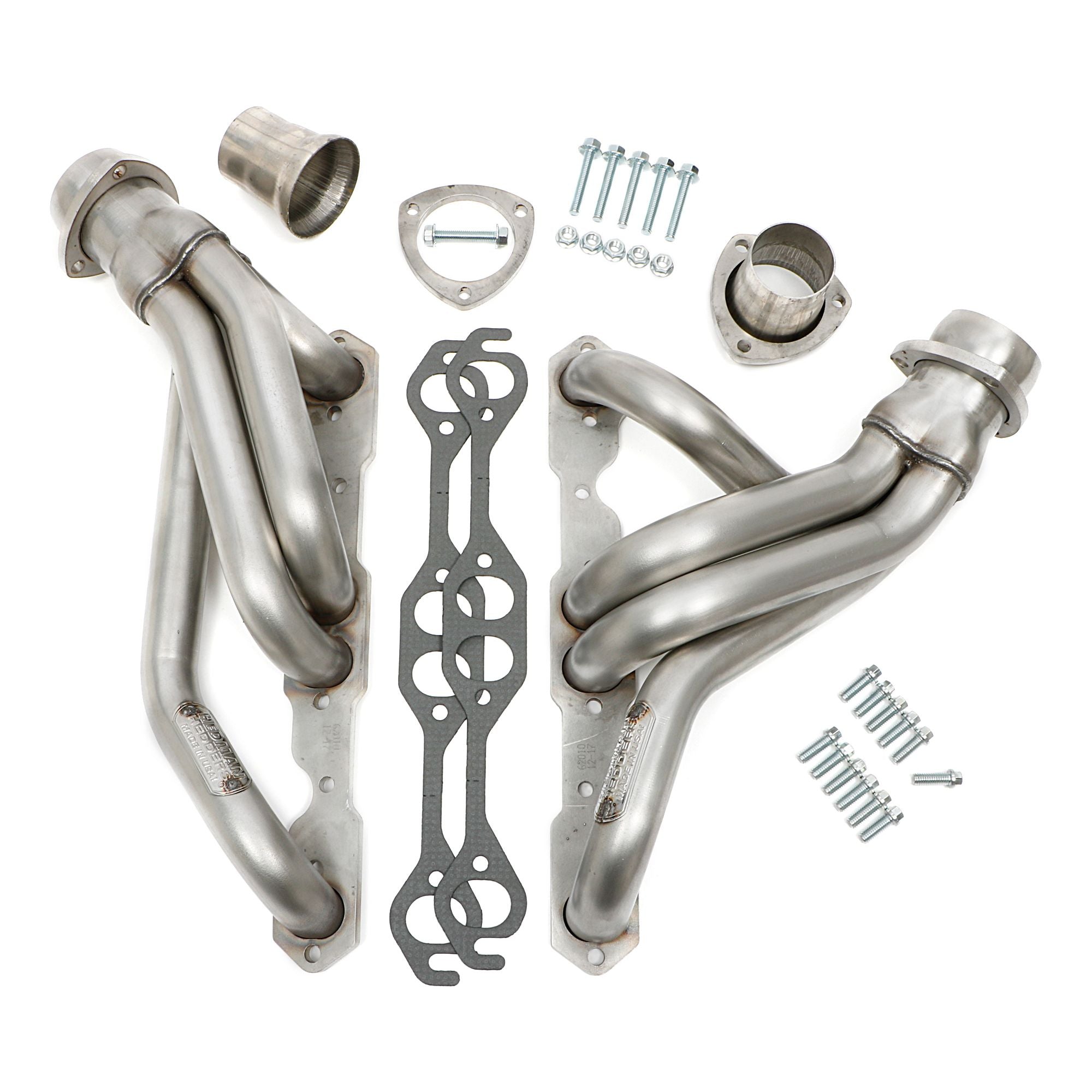

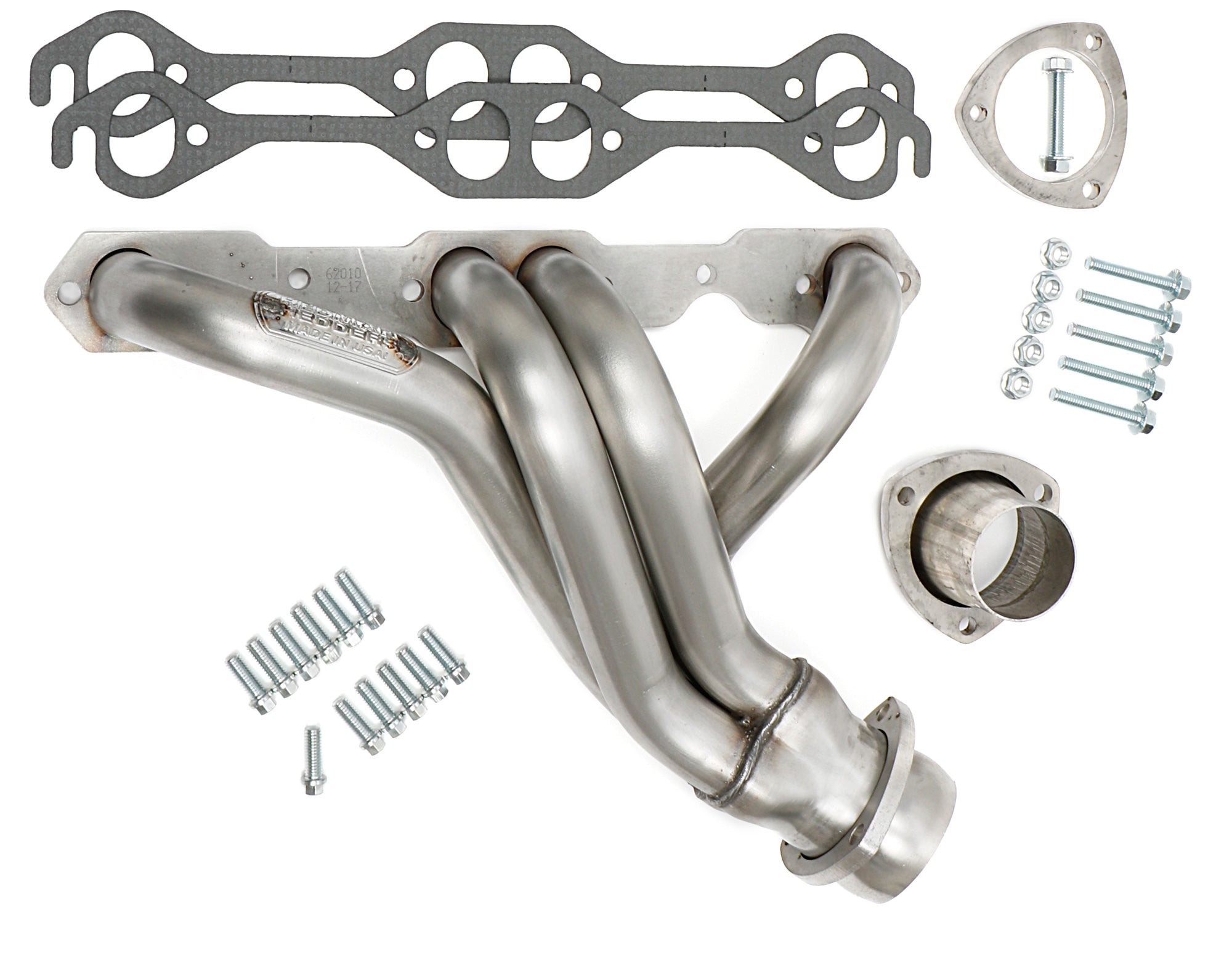

• Package Contents: Set of Headers, mounting hardware and gaskets
• Header Material: T304 Stainless Steel
• Header Finish: Uncoated
• Replacement Gasket: 27520
• Cylinder Head Port Shape: Oval
• Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
• Header Construction: T304 Stainless
• Notes: 67-87 Chev. 1/2, 3/4 Ton Truck 283-400 2WD
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Air Conditioning Notes: 70-Up: LARGE compressor needs bracket 20110; SMALL compressor, modify OE bracket
• Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
• Tube Diameter: 1-5/8 in.
• Tube Style: Mid-Length
• Collector Style: Ball and Socket Style (Gasketless)
• Air Conditioning: Yes
• Automatic Transmission - Column: Yes
• Automatic Transmission - Floor: Yes
• Manual Transmission - Column: No
• Manual Transmission - Floor: Yes
• Collector Attachment: 3 in.
• Collector Size: 3 in.
• E.O. #: No
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Exhaust System Dia: 2-1/2 in.
• Finish: Uncoated
• Finish Type: Uncoated Stainless Steel
• Flange Style: Standard
• Flange Thickness: 0.375 in.
• Replacement Head Flange Gasket: 27520
• Header Port Shape: Oval Port
• Header Style: Mid-Length Tube
• Port Shape: Oval
• Materials: 100% 304 Stainless Steel- Uncoated; 16g Tubes; 3/8 in. Head Flanges
• Power Steering: Yes
• Product Details: The short, compact design of these headers allows for maximum ground clearance.
• Material: T304 Stainless Steel
• Special Engine Notes: Designed for use with the SB Chevy engine located in the factory position.
• Transmission Compatibility: Manual Trans. must Use TailShaft style crossmember or modify factory crossmember
• Tube Design: MID-LENGTH
• Tube Length: Mid-Length Tubes
• Tube Material Thickness: 16g
• Tube Size: 1-5/8 in.
• with A.I.R. System: No
• with EGR: No
• Weld-Up: No
• Reducer Outlet Size: 2-1/2 in.
• Tuned: No
• Reducers Included: Yes

Extened Information:

• Emissions : Not in CA
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.000 x 16.500 x 8.250 inches

PDF:

69010-69020series-instruction
