$33.69 off

HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

$1,650.59 USD $1,684.28
By Hedman Hedders
SKU: FBLG-61198
Minus Plus
More details Right
  • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
  • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Additional Attributes:

  • GTIN: 00732611611985
  • Quantity: Sold as a pair.
  • Motor Mounts Included: No
  • Crossover Pipe Included: No
  • Catalytic Converter(s) Included: No
  • Weld-Up: No
  • Tuned: No
  • Primary Tube Gauge: 14g
  • Primary Tube Diameter (in): 1.75 in.
  • Mounting Hardware Included: Yes
  • Header Material: Mild Steel
  • Header Finish: HTC Polished Silver Ceramic-Metallic
  • Cylinder Head Port Shape: Square
  • Variations: 66191, 61198
  • Tube Style: Long Tube
  • Tube Size: 1-3/4 in.
  • Tube Material Thickness: 14g
  • Tube Length: Long Tubes
  • Tube Diameter: 1-3/4 in.
  • Tube Design: LONG TUBES
  • Reducer Outlet Size: 2-1/2 in.
  • Power Steering: No
  • Material: Mild Steel
  • Manual Transmission - Floor: Yes
  • Manual Transmission - Column: Yes
  • Key Feature: With A.I.R.
  • Replacement Head Flange Gasket: 27550
  • Flange Style: Standard
  • Finish: Matte Silver Ceramic-Metallic
  • Exhaust System Dia: 2-1/2 in.
  • Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
  • Collector Style: Ball and Socket Style (Gasketless)
  • Collector Size: 3 in.
  • Automatic Transmission - Floor: Yes
  • Automatic Transmission - Column: Yes
  • Air Conditioning: No
  • Reducers Included: Yes
  • Header Style: Long Tube
  • Gasket Or Seal Included: Yes
  • Collector Attachment: 3 in.
  • Flange Thickness: 0.375 in.
  • Bolts/Studs Included: Yes
  • Header Construction: ELITE Heavy-Duty
  • E.O. #: Yes
  • Notes: 67-70 Various Chevy Car 283-400
  • Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
  • Y-Pipe Included: No
  • with EGR: No
  • with A.I.R. System: Yes

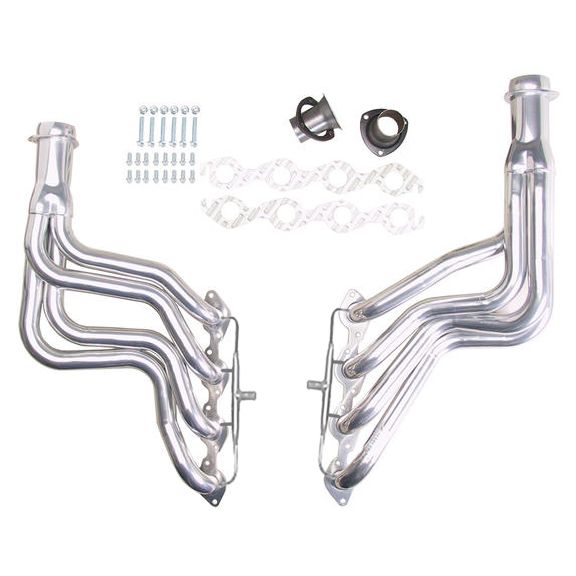

  • Package Contents: Set of Headers, mounting hardware and gaskets
  • Installation Hardware Included: Yes
  • Replacement Gasket: 27550
  • Cylinder Head: Stock Profile Heads

Extened Information:

  • Emissions : Not in CA
  • Life Cycle Status: Available To Order

Packaging:

  • Quantity of Each: 1
  • Package UOM: ST
  • Dimension: 38.000 x 16.000 x 8.000 inches
