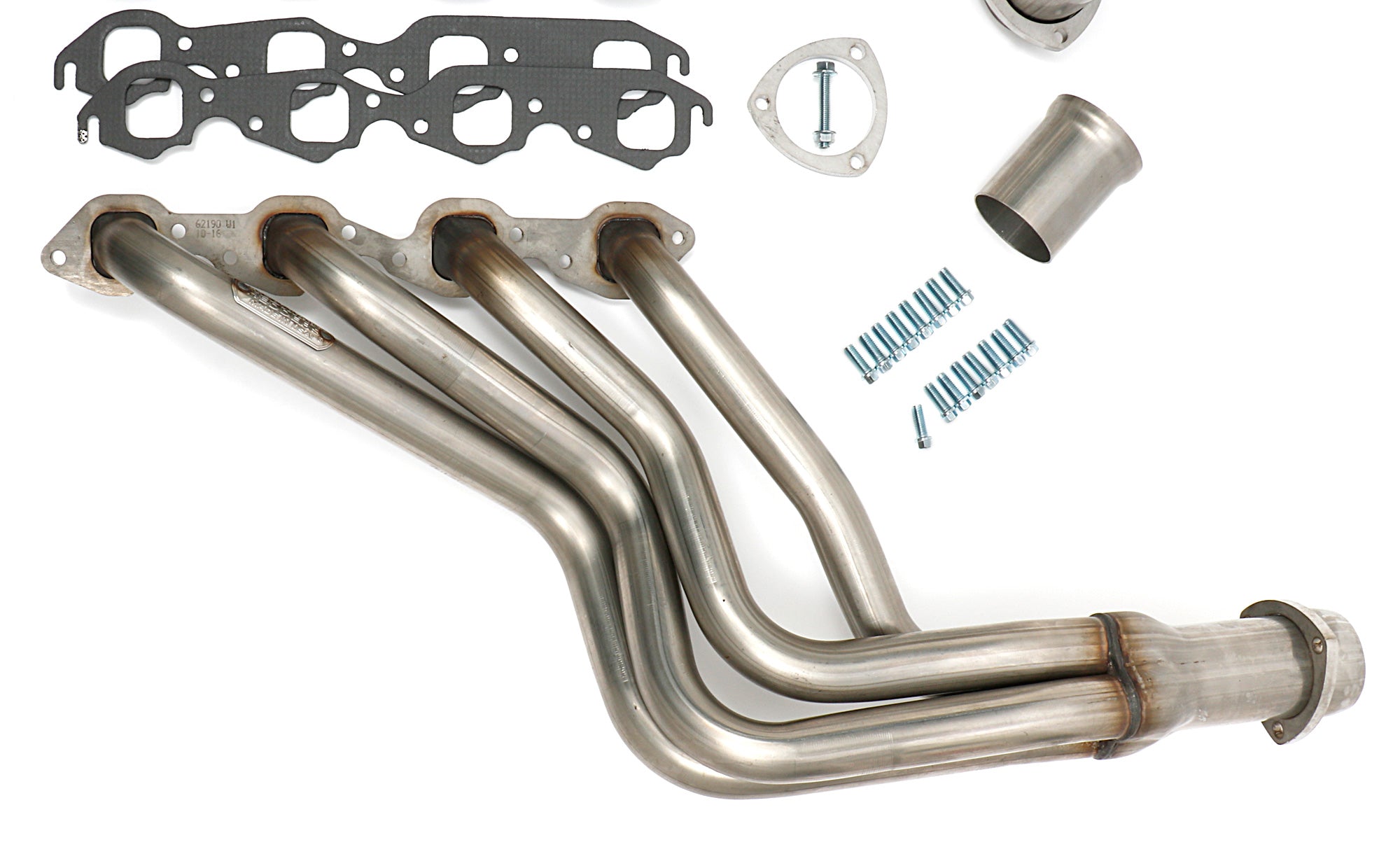

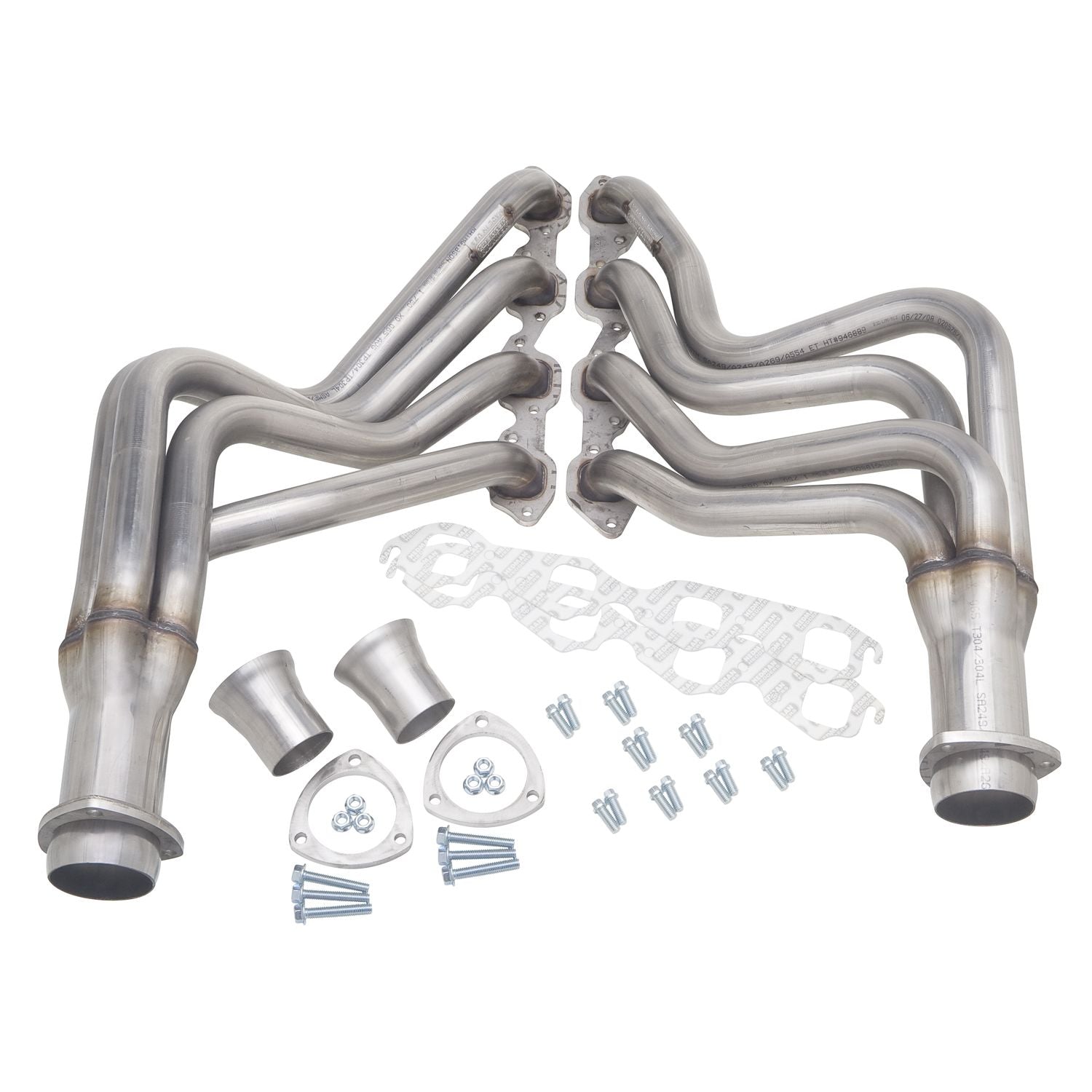

HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED

• 100% Premium T304 Stainless Steel Flange and Tube Construction.
• T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Additional Attributes:

• GTIN: 00732611621908
• Y-Pipe Included: No
• with EGR: No
• with A.I.R. System: No
• Package Contents: Set of Headers, mounting hardware and gaskets
• Installation Hardware Included: Yes
• Replacement Gasket: 27550
• Cylinder Head: Stock Profile Heads
• Motor Mounts Included: No
• Crossover Pipe Included: No
• Catalytic Converter(s) Included: No
• Weld-Up: No
• Tuned: No
• Primary Tube Gauge: 16g
• Primary Tube Diameter (in): 1.75 in.
• Mounting Hardware Included: Yes
• Header Material: T304 Stainless Steel
• Header Finish: Raw
• Cylinder Head Port Shape: Square
• Variations: 68196, 68198, 62196
• Tube Style: Long Tube
• Tube Size: 1-3/4 in.
• Tube Material Thickness: 16g
• Tube Length: Long Tubes
• Tube Diameter: 1-3/4 in.
• Power Steering: No
• Material: T304 Stainless Steel
• Manual Transmission - Floor: Yes
• Manual Transmission - Column: Yes
• Replacement Head Flange Gasket: 27550
• Flange Style: Standard
• Finish: Uncoated
• Exhaust System Dia: 2-1/2 in.
• Collector Style: Ball and Socket Style (Gasketless)
• Collector Size: 3 in.
• Automatic Transmission - Floor: Yes
• Automatic Transmission - Column: Yes
• Air Conditioning: No
• Reducers Included: Yes
• Header Style: Long Tube
• Gasket Or Seal Included: Yes
• Collector Attachment: 3 in.
• Flange Thickness: 0.375 in.
• Bolts/Studs Included: Yes
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Product Info: Manufactured using 304 Stainless steel. Sturdy 3/8 in. Flanges and 16 gauge tubing
• Header Construction: T304 Stainless
• E.O. #: No
• Tube Design: LONG TUBES
• Notes: 64-77 Various Chevy Car 396-502
• Reducer Outlet Size: 2-1/2 in.
• Finish Type: Uncoated Stainless Steel
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware

Extened Information:

• Emissions : Legal US
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 39.250 x 18.250 x 9.630 inches

PDF:

68190series-instructions
