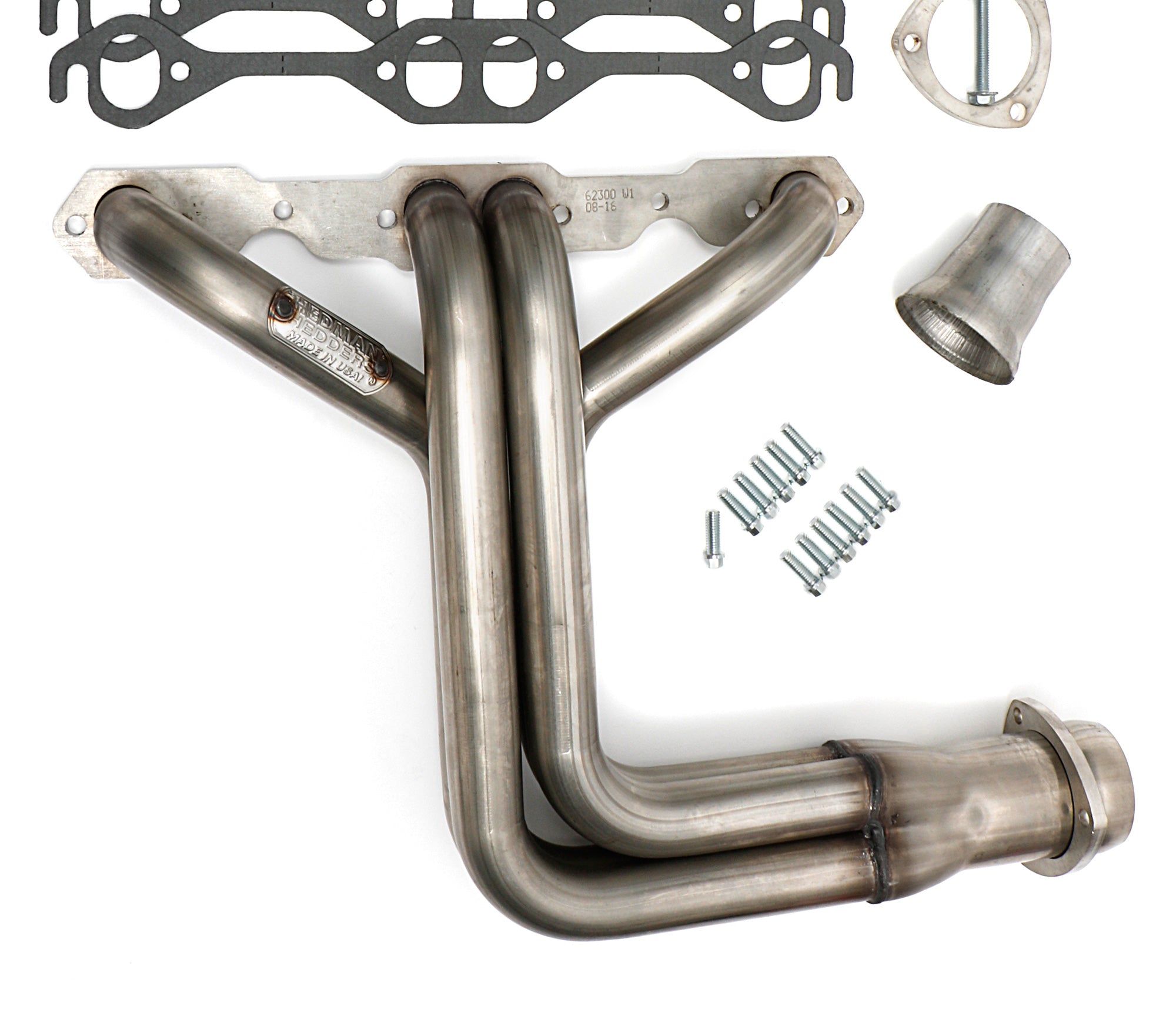

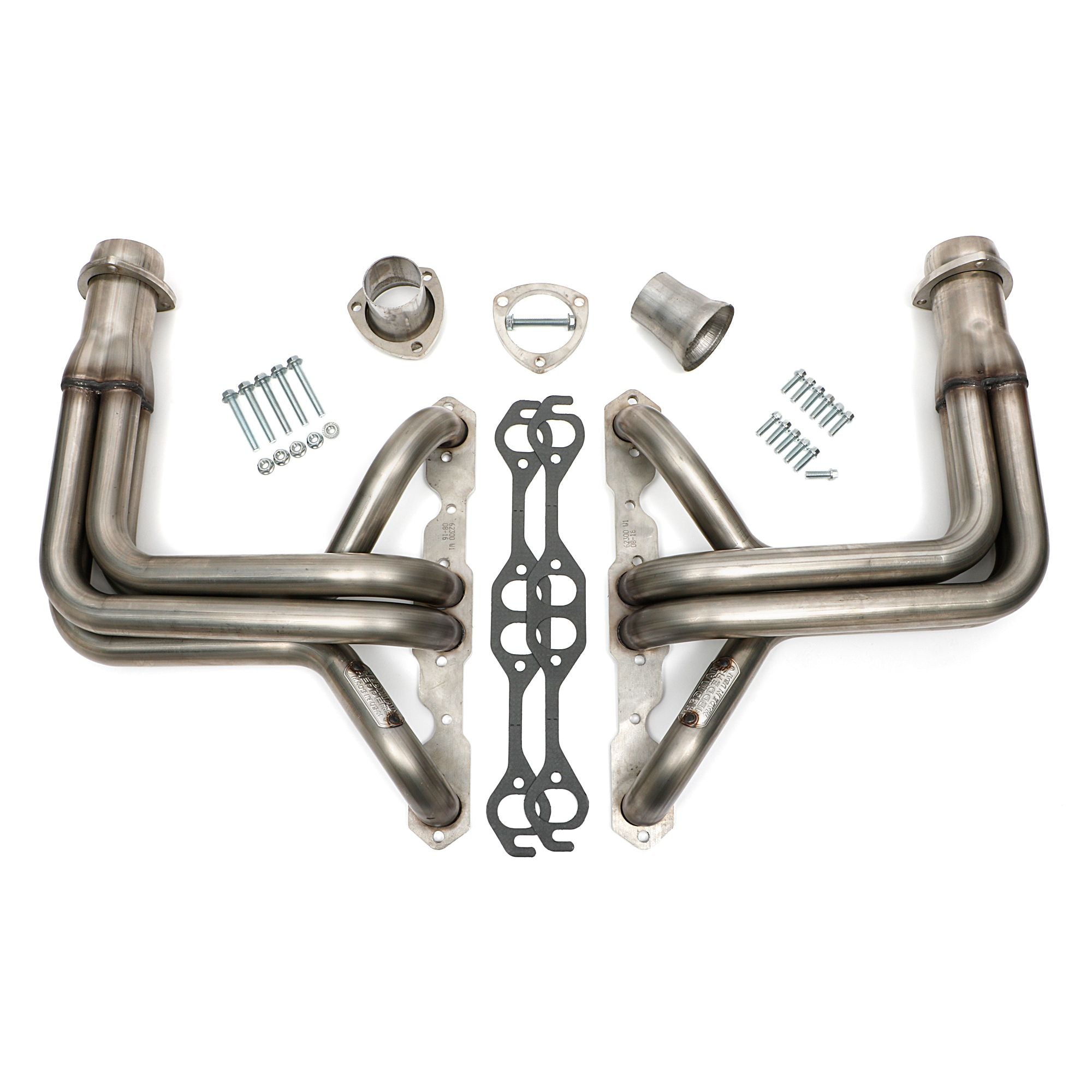

HEDMAN HEDDERS STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED

• 100% Premium T304 Stainless Steel Flange and Tube Construction.
• T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!

Additional Attributes:

• GTIN: 00732611623001
• Cylinder Head Port Shape: Oval
• Variations: 68306, 68308, 62306
• Tube Style: Long Tube
• Tube Size: 1-5/8 in.
• Tube Material Thickness: 16g
• Tube Length: Long Tubes
• Tube Diameter: 1-5/8 in.
• Tube Design: LONG TUBES
• Reducer Outlet Size: 2-1/2 in.
• Power Steering: Yes
• Material: T304 Stainless Steel
• Manual Transmission - Floor: Yes
• Manual Transmission - Column: No
• Replacement Head Flange Gasket: 27520
• Flange Style: Standard
• Finish: Uncoated
• Exhaust System Dia: 2-1/2 in.
• Collector Style: Ball and Socket Style (Gasketless)
• Collector Size: 3 in.
• Automatic Transmission - Floor: Yes
• Automatic Transmission - Column: Yes
• Air Conditioning: Yes
• Reducers Included: Yes
• Header Style: Long Tube
• Gasket Or Seal Included: Yes
• Collector Attachment: 3 in.
• Flange Thickness: 0.375 in.
• Bolts/Studs Included: Yes
• Emissions Notes: NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.
• Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
• Header Construction: T304 Stainless
• E.O. #: No
• Notes: 63-82 Corvette 283-400
• Finish Type: Uncoated Stainless Steel
• Product Info: Manufactured using 304 Stainless steel. Sturdy 3/8 in. Flanges and 16 gauge tubing
• Y-Pipe Included: No
• with EGR: No
• with A.I.R. System: No
• Package Contents: Set of Headers, mounting hardware and gaskets
• Installation Hardware Included: Yes
• Replacement Gasket: 27520
• Cylinder Head: Fits Factory GM Aluminum or Cast Iron, Angle Plug and Straight Plug Heads.
• Quantity: Sold as a pair.
• Motor Mounts Included: No
• Crossover Pipe Included: No
• Catalytic Converter(s) Included: No
• Weld-Up: No
• Tuned: No
• Primary Tube Gauge: 16g
• Primary Tube Diameter (in): 1.625 in.
• Mounting Hardware Included: Yes
• Header Material: T304 Stainless Steel
• Header Finish: Raw

Extened Information:

• Emissions : Not in CA
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each: 1
• Package UOM: ST
• Dimension: 29.000 x 16.500 x 8.250 inches

PDF:

62300
