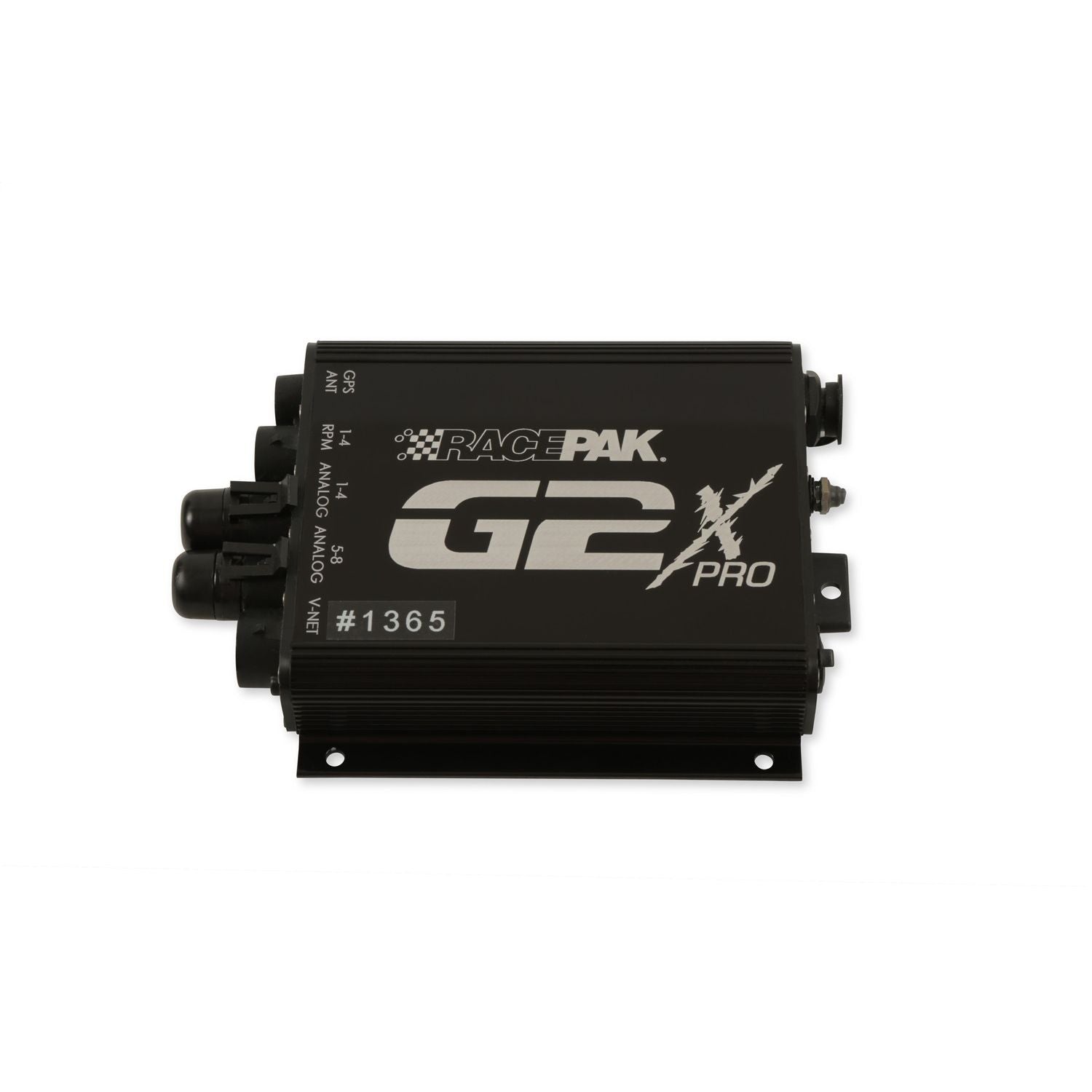

G2X Pro Data Logger

The G2X-Pro adds to the G2X's capabilities by monitoring up to 71 channels, while providing lap and segment timing along with speed and track mapping functions via GPS. Packages are also available to monitor steering position, throttle position, and brake pressure. Suspension and ride height data may also be obtained by purchasing the appropriate shock and ride height sensor package. In addition, any Racepak sensor may be used with the G2X-Pro. The optional G2X-Pro dash display shows lap times, lap number, per lap gain/loss, gear indicator, progressive shift light, battery voltage, G-forces and RPM. The box includes: G2X-Pro data logger, GPS antenna, up to 16GB SD memory card, Datalink II Software communication cable and power/ground/engine RPM harness. Specifications: 71 total channels / 59 V-Net channels / digital sample rate: up to 100 per second / analog sample rate: up to 1000 per second / digital timing rates within 1/1000 of a second / data stored on SD memory card. Internal Sensors: battery voltage / longitudinal g-meter / lateral g-meter / GPS. Dimensions: 9.00 in. (L) x 11.75 in. (W) x 3.00 in. (H) (22.86cm x 29.845cm x 7.62cm) / 3 lb. (731.4 g)

• 71 Total Channels
• 59 V-Net Channels
• Up To 100 Per Second Digital Sample Rate
• Up To 1000 Per Second Analog Sample Rate
• Within 1/1000 Of Second Digital Timing Rates
• Data Stored On SD Memory Card
• Internal Sensors Incl. Battery Voltage/Longitudinal G-Meter
• Internal Sensors Incl. GPS/Driveshaft Sensor

Attributes:

• GTIN: 00815046024831
• Brand Name: Racepak
• WARNING CA Proposition 65: Yes
• WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 9.0000 x 12.0000 x 3.0000 inches
• Weight: 3.0000 lb
