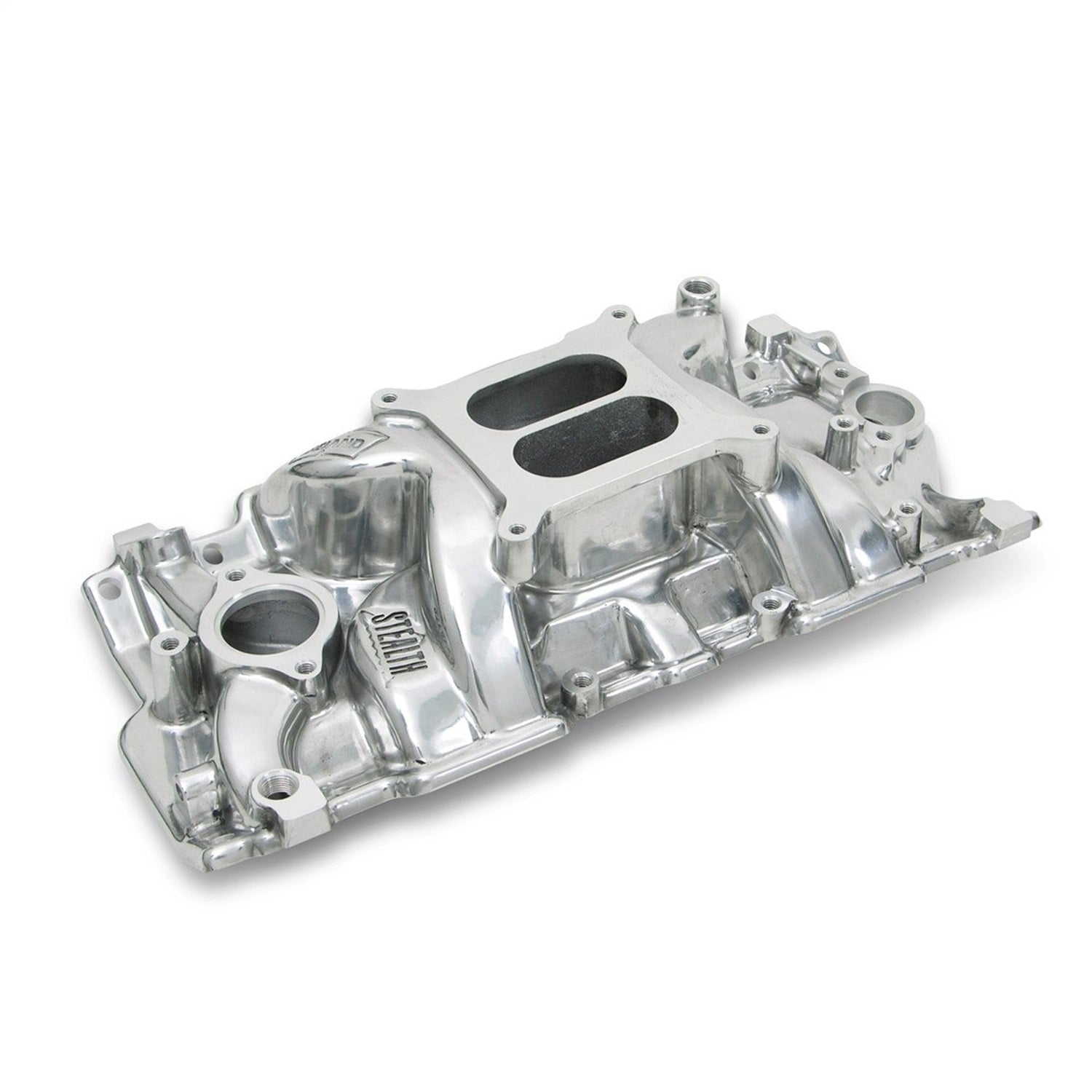

Weiand is no stranger to the performance aftermarket. Since the 1930s, Weiand has been delivering serious performance parts to street /strip enthusiasts, marine customers and hard core racers. Times have changed as bigger motors, higher RPMs, better ignition systems and ultra efficient cylinder head designs have generated a need for better manifold technology. Weiand has delivered! *** Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G. Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16 in.. To the bottom of the lower plenum is 4-1/16 in..
- Precision CNC Machining
- High Rise/Dual Plane Design
- Square Bore Carburetor Flange
- Exhst Crossover For Improved Street Drivability (Std. SBC Heads)
- 1500-6700 RPM Power Band
- Height Front 4.19 in.; Rear 5.27 in.
- Port Size 1.92 in. Height x 1.16 in. Width
Attributes:
- GTIN: 00090127631355
- Brand Name: Weiand
- Barrel: Four
- Cylinder Head Type: Standard
- Emission: Without EGR
- Engine Make/Size: Chevy Small Block V8
- Finish: Shiny
- Front Height: 4.190 in.
- Fuel System Type: Carbureted
- Manifold Type: High Rise
- Number of Carbs: One
- Position: Lower
- Rear Height: 5.270 in.
- RPM Range: 1500-6700
- Usage: Street/Strip
- WARNING CA Proposition 65: No
Extended Information:
- Country of Origin: China
- Emissions : Electronically Announced
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each:
- Package UOM:
- Dimension: 25.0000 x 12.1000 x 7.0000 inches
- Weight: 14.5500 lb
