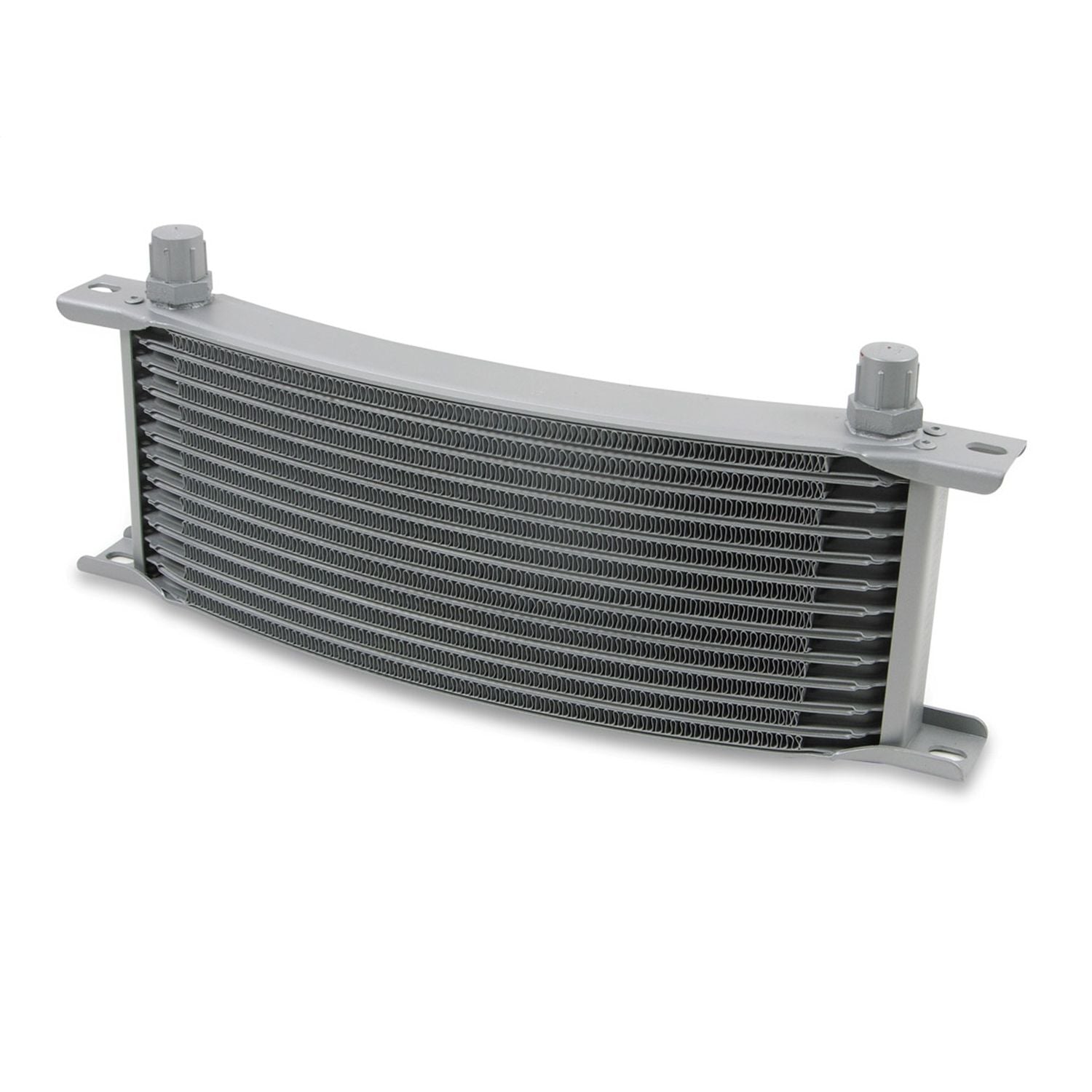

Earl's curved coolers are constructed with the same high grade aluminum and the same internal design as our standard 2 inch coolers, but have a curved design to fit neatly between the down tubes of the frame of a motorcycle for maximum heat dissipation. The curved design allows for full wheel travel no matter where it is mounted on the front of the frame. These coolers are only 1–1/4 inch thick and are available in two widths, three different heights and male -6 or -8 inlet and outlet fittings.
- Manufactured In USA
- Aircraft Spec Aluminum Alloy
- Latest Vacuum Brazing Technical
- Lightest Practical Package
- Increase Mechanical Strength
- Pressure Checked To 175 PSI
- Burst Tested To 350 PSI
Additional Attributes:
- GTIN: 00090127655252
- Body Width: 11.562 in.
- Bracket Included: No
- Construction: Stacked Plate - Brazed
- Finish: Grey
- Fitting Centers: 9.050 in.
- Fitting Number: Not Required
- Fittings Included: Yes
- Item Height: 4.919 in.
- Material: Aluminum
- Mounting Bracket Number: N/A
- Port Size: 8AN MALE
- Product Line: Temp-A-Cure
- Radiator Core Row Quantity: 16
- Thickness: 1.250 in.
- WARNING CA Proposition 65: No
- Width: Narrow Curved Cooler
- Width Between Tanks: 8.000 in.
Packaging:
- Quantity of Each:
- Package UOM:
- Dimension: 17.0000 x 11.0000 x 2.6300 inches
