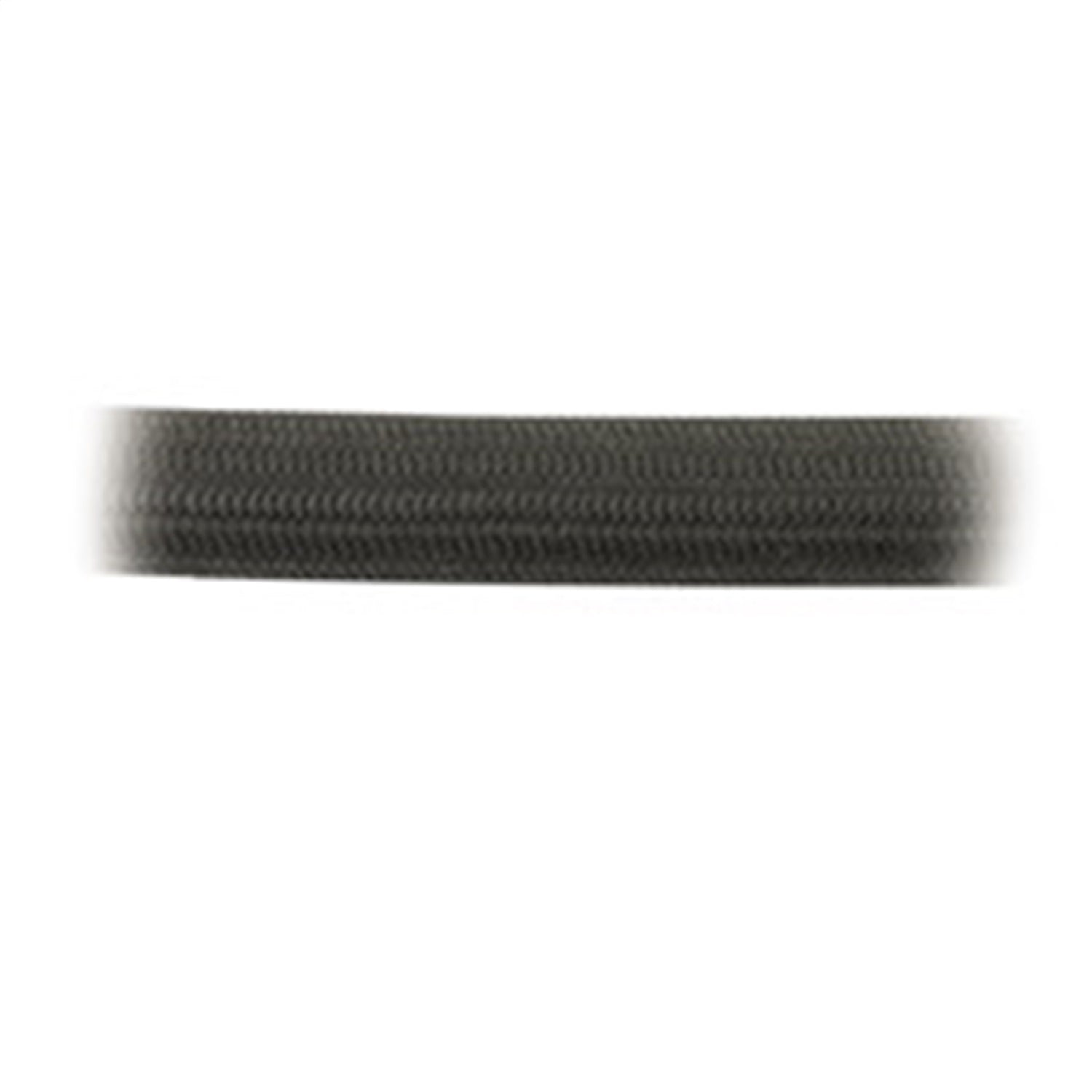

Ultra-Flex™ Kevlar Braid Hose

The packaging envelopes of the modern racing car become tighter each year - leaving less room for auxiliaries such as plumbing. At the same time it becomes more and more difficult to get the cars down to minimum weight. Earl's Ultra-Flex 650(TM) hose solves these issues. Earl's finest and lightest hose combines a woven Ultra-light Kevlar(R) braid with a smooth bore PTFE tubing for increased flow and convoluted outside for incredible flexibility. It also has significantly higher flow and pressure ratings than conventional convoluted PTFE hose. Ultra-Flex 650(TM) is 60% lighter than our stainless braid-protected synthetic rubber hose, and 15% lighter than our Pro-Lite 350(TM) hose. You have spent a lot of time, energy and money on your race engine and you should bring the life sustaining fluid to it with the best hose on the market today - Earl's Ultra-Flex 650(TM). (All trademarks are property of their respective owners.)

• Ultra-Light Kevlar® Outer Braid
• High Temp
• Smooth PTFE Tubing
• Clean and Fast Flowing
• Sold In Pre-Packaged Lengths

Additional Attributes:

• GTIN: 00090127023037
• Submersible in Fuel: No
• WARNING CA Proposition 65: Yes
• WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Color: Black Anodized
• Compatible Hose End: Ultra Flex
• Crimping Die: 25MM - D10025BERL
• Final Crimp O.D. Range: 1.145 in. - 1.159 in.
• Fluid Type: Automatic Transmission Fluid
• Hose Length: 33 ft.
• Hose Outer Material: Kevlar™ Coated
• Hose Size: 12AN
• Inside Diameter: 0.780 in.
• Material: Kevlar™ Coated
• Maximum Working PSI: 880
• Minimum Bend Radius: 3.930 in.
• Outside Diameter: 0.961 in.
• Product Length: 33 ft.
• Size: -12AN

Extened Information:

• Emissions : Emission verification to be determined in ACES, vehicle application data.
• Life Cycle Status: Available To Order

Packaging:

• Quantity of Each:
• Package UOM:
• Dimension: 14.0000 x 14.0000 x 3.0000 inches
