Additional Attributes:
- GTIN: 00036584127659
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A

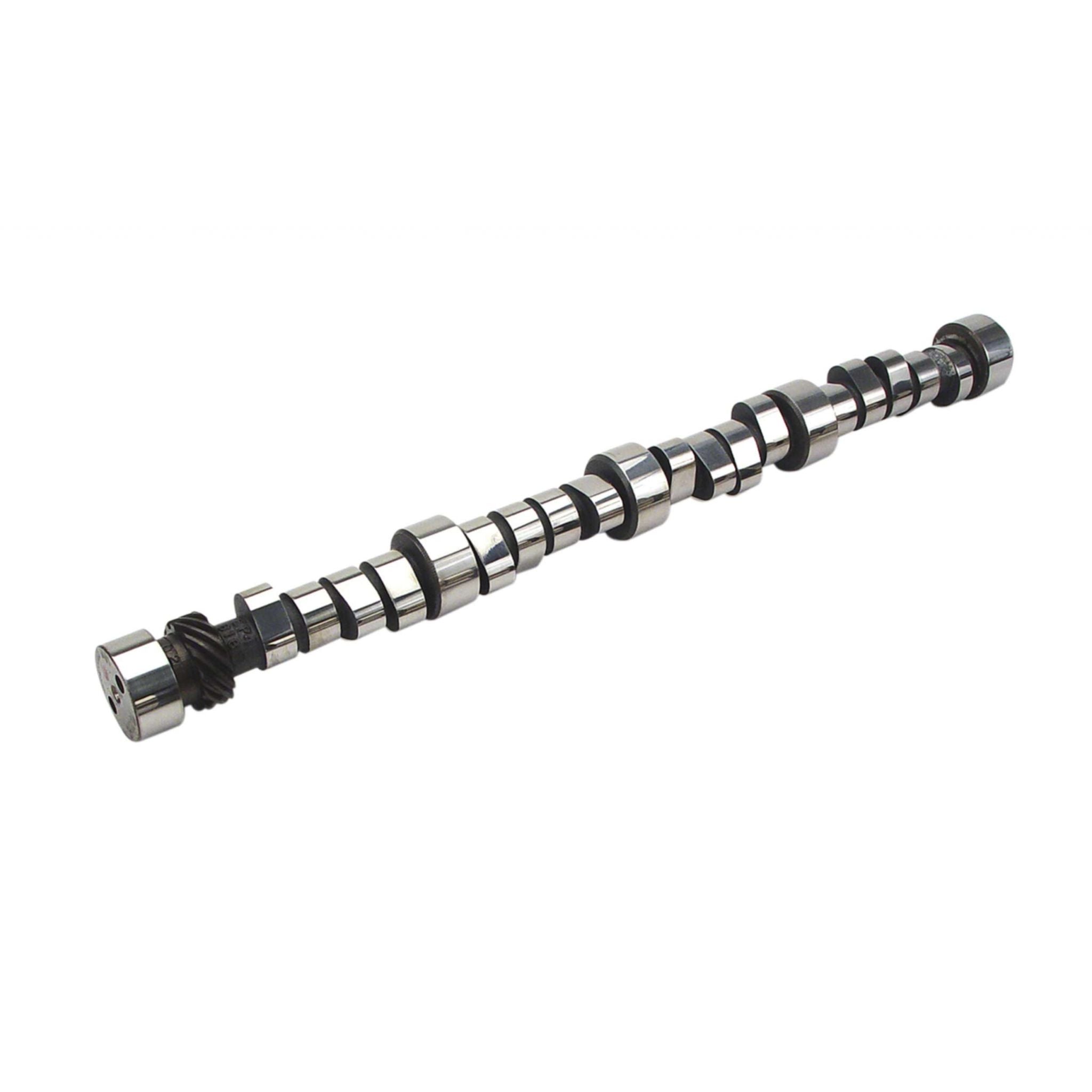

- Camshaft Series: Tri-Power Xtreme
- Usage: Street/Performance
- Cam Type: Hydraulic Roller
- Grind Number: TPX246HR-16 246
- Basic Operating RPM Range: 600-4,600
- Intake Duration at .050 Inch Lift: 194
- Exhaust Duration at .050 inch Lift: 206
- Advertised Intake Duration: 246
- Advertised Exhaust Duration: 258
- Lobe Separation: 116
- Intake Valve Lift: 0.5
- Exhaust Valve Lift: 0.493
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Material: Billet Steel
- Engine Family: GM 8100/8.1L 8 Cylinder (2001+)
- Lifter Type: Hydraulic Roller
- Amazon ASIN: B001G8GSYW
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Extened Information:
- Emissions : Legal US
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 3 x 2.75 inches
PDF:
dddbebdc29809COMP Cams Camshaft CB8 Tpx 246HR-16 - 46-525-9
