Additional Attributes:
- GTIN: 00036584127673
- Advertised Intake Duration: 262
- Advertised Exhaust Duration: 270
- Lobe Separation: 114
- Intake Valve Lift: 0.513
- Exhaust Valve Lift: 0.507
- Lifters Included: No
- Valve Springs Required: Yes
- Assembly Lubricant Included: No
- Camshaft Material: Billet Steel
- Engine Family: GM 8100/8.1L 8 Cylinder (2001+)
- Lifter Type: Hydraulic Roller
- Amazon ASIN: B001G8IXX6
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exemption Reason: N/A
- C.A.R.B. E.O. Number: N/A
- Camshaft Series: Tri-Power Xtreme
- Usage: Street/Performance
- Cam Type: Hydraulic Roller
- Grind Number: TPX262HR-14 262
- Basic Operating RPM Range: 1,000-5,000
- Intake Duration at .050 Inch Lift: 210
- Exhaust Duration at .050 inch Lift: 218
Extened Information:
- Emissions : Legal US
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24.5 x 3 x 2.75 inches
PDF:

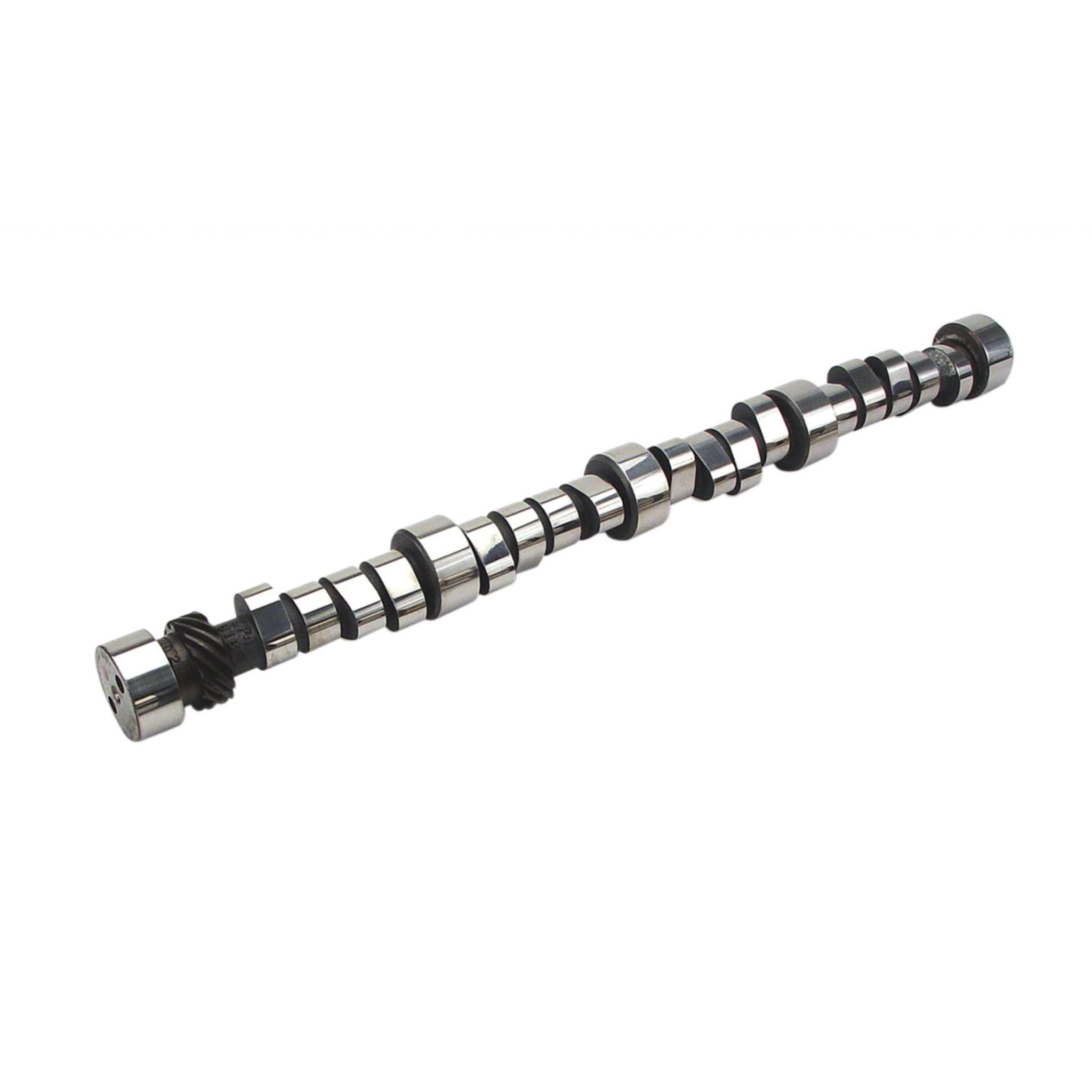

dddbebdc29809COMP Cams Camshaft CB8 Tpx 262HR-14 - 46-535-9
