Canton 11-196 Oil Pan Small Block Chevy Shallow Open Chassis Circle Track Pan

$619.00 USD $742.80
By Canton
SKU: BGTF-11-196
Minus Plus
More details Right

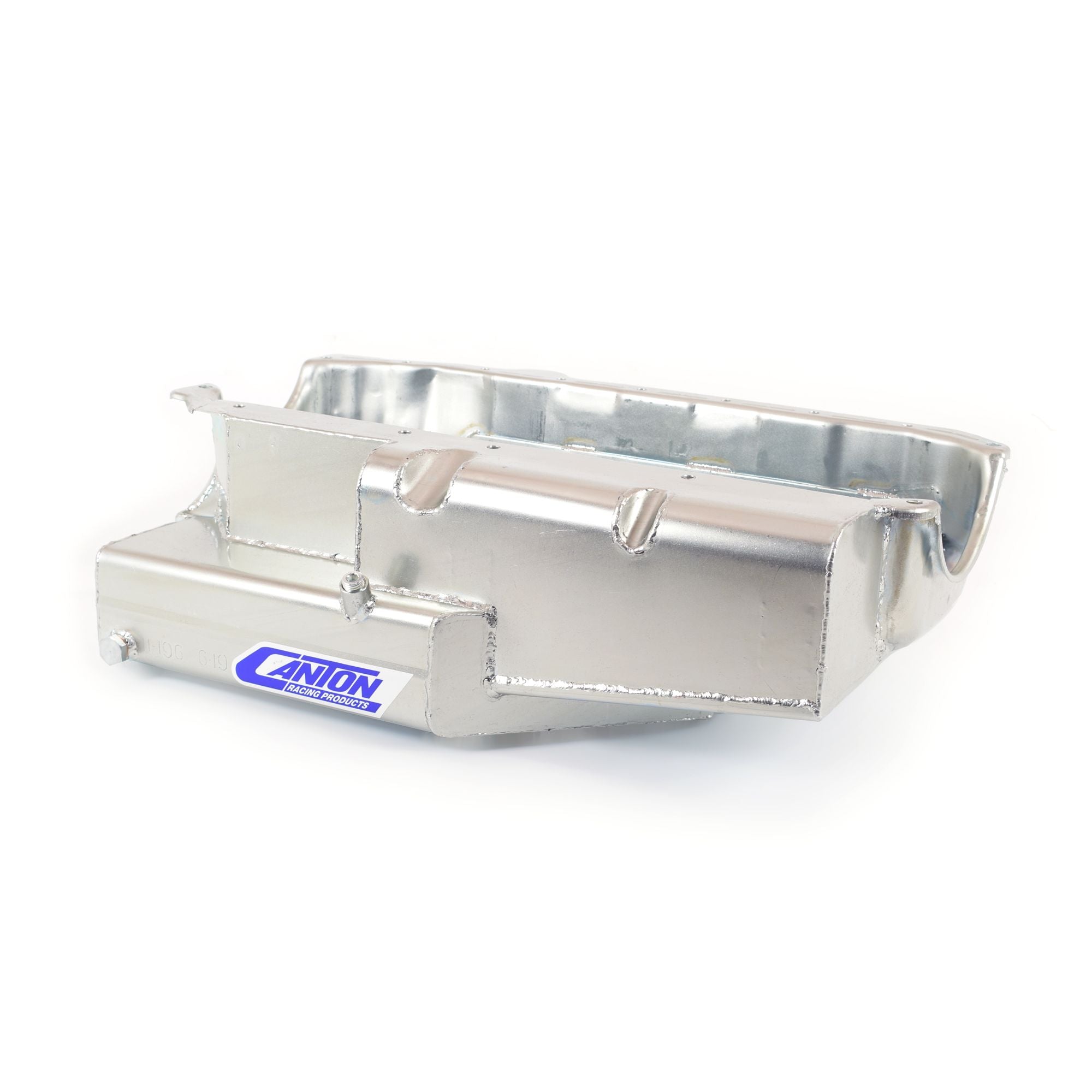

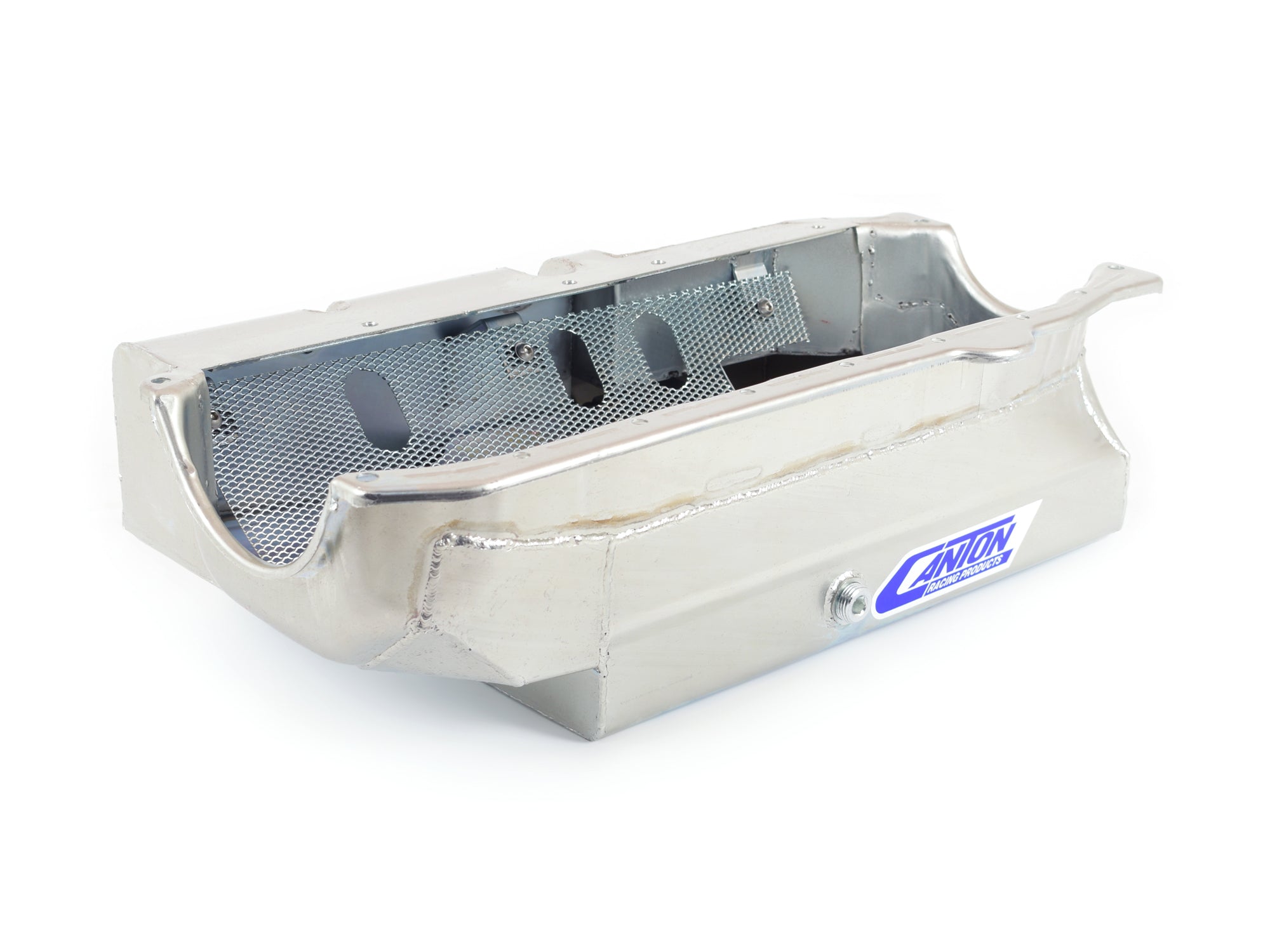

This open chassis shallow "L" style steel wet sump is for pre-?85 Small Block Chevys. The pan is designed for applications requiring extra ground clearance and with chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 16" long, 6-1/2" deep ?L? sump with an 8 quart system capacity. Requires one of our pickups. Also an available option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.
  • 8 qt System Capacity
  • Six Trap Door Baffles & Directional Oil Runners
  • Pro Style Oil Recovery Pouch
  • Bolt in Slosh Baffle
  • Built in Screen Windage Tray
  • 1/2” NPT Temperature Bung
  • Provison for our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711274
  • Brand Name: Canton
  • Baffled: Yes
  • Gasket or Seal Included: No
  • Stoke: 3.875"
  • Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
  • Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
  • Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 3: 20-032 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
  • Recommended Accessory 2: 20-031 - Pickup for Small Block High Volume Pump M55HV
  • Recommended Accessory 1: 20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: Yes
  • Hardware Included: No
  • Finish: Silver Plating
  • Capacity: 8 Quart System Capacity
  • Feature 8: Magnetic Drain Plug
  • Feature 7: 1/2 NPT Temp Sensor Bung
  • Feature 6: Provision for Canton Pan Mounted Dipstick
  • Feature 5: Removable Screen Windage Tray
  • Feature 4: Bolt On Slosh Baffle For Oil Control
  • Feature 3: Baffled with 6 Trap Doors/3 Directional Runners
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For S.B. Chevy 1985 and earlier blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24.5 x 16.25 x 9.5 inches
  • Weight: 23 lb
