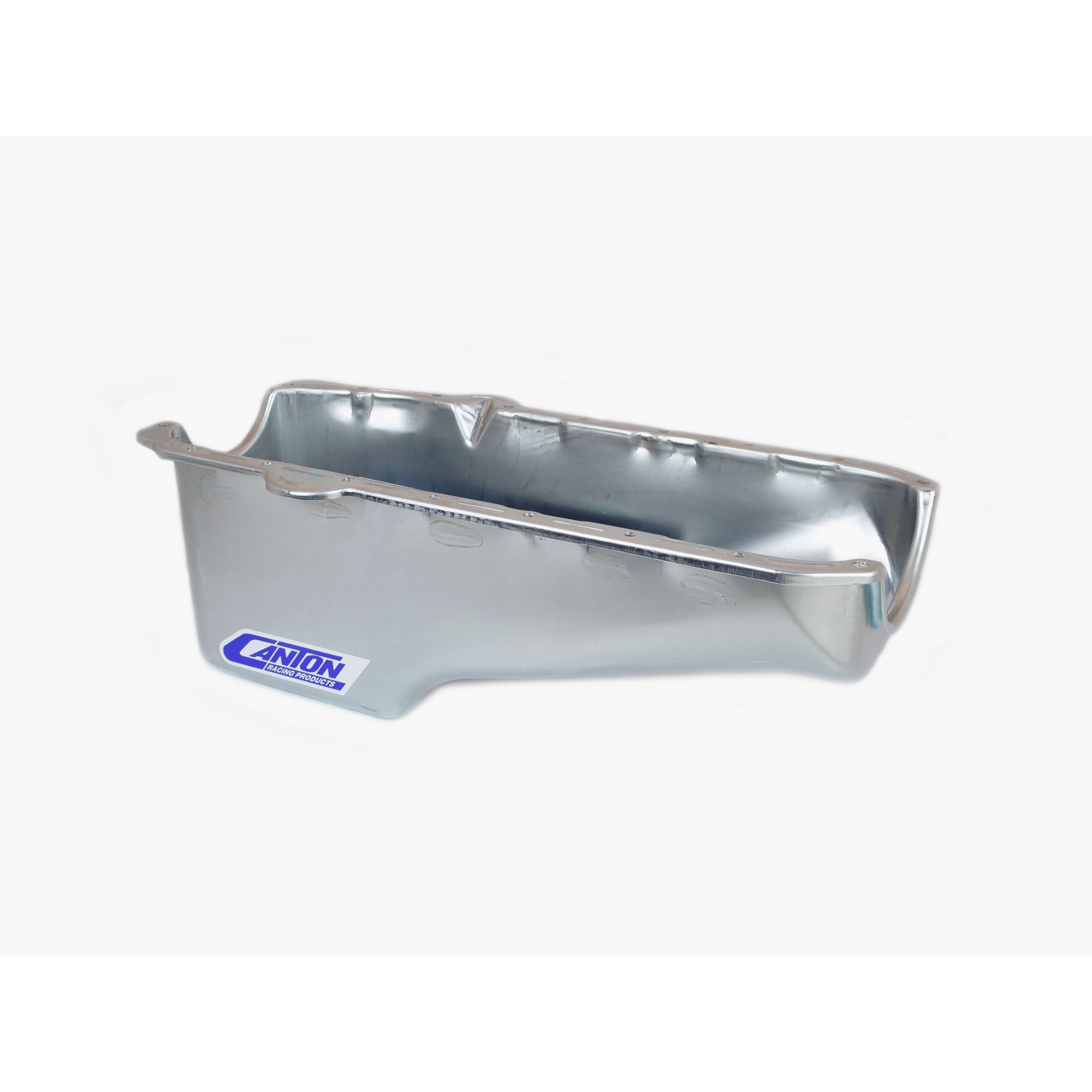

Canton 11-200 Oil Pan Small Block Chevy Stock Appearing Circle Track Pan

This circle track stock appearing pan is for pre-?80 Small Block Chevys with left side dipstick. It is designed for circle track applications where a stock appearing oil pan is required, such as strictly stocks or mini-stocks. Stock dimensions are capacity are retained, but Canton's specially designed baffling system ensures increased oil control. This pan requires our 20-002 pickup.

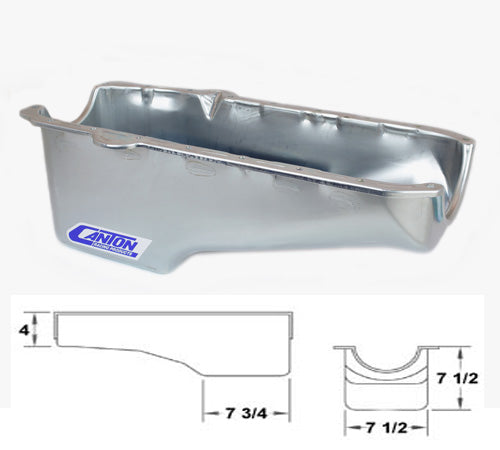

• 7.5" Deep
• 5 qt System Capacity
• Double Trap Door Baffles
• Crank Scraper
• Removable Windage/Anti-Slosh Baffle
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753711281
• Brand Name: Canton
• Hardware Included: No
• Dipstick Port: No
• Finish: Silver Plating
• Feature 5: Magnetic Drain Plug
• Feature 4: Built in Crank Scraper
• Feature 3: Removable Windage / Anti-Slosh Baffle
• Feature 2: Baffled with Double Trap Door Baffles
• Feature 1: Retains Stock Oil Pan Dimensions
• Engine: For S.B. Chevy Pre-1980 Blocks
• Drain Plug Included: Yes
• Crank Scraper Included: Yes
• Kicked Out: No
• Capacity: Stock System Capacity
• Baffled: Yes
• Windage Tray Included: No
• Stoke: 3.75 inches
• Recommended Accessory 2: 88-100 ? SBC Pre ?85 Oil Pan Gasket
• Recommended Accessory 1: 20-002 - Pickup For Small Block Standard Volume Only - M-55 or M-55A Oil Pumps
• Pickup Included: No
• Material: 16 Gauge Steel
• Gasket or Seal Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.5 x 12 x 9.5 inches
• Weight: 13 lb
