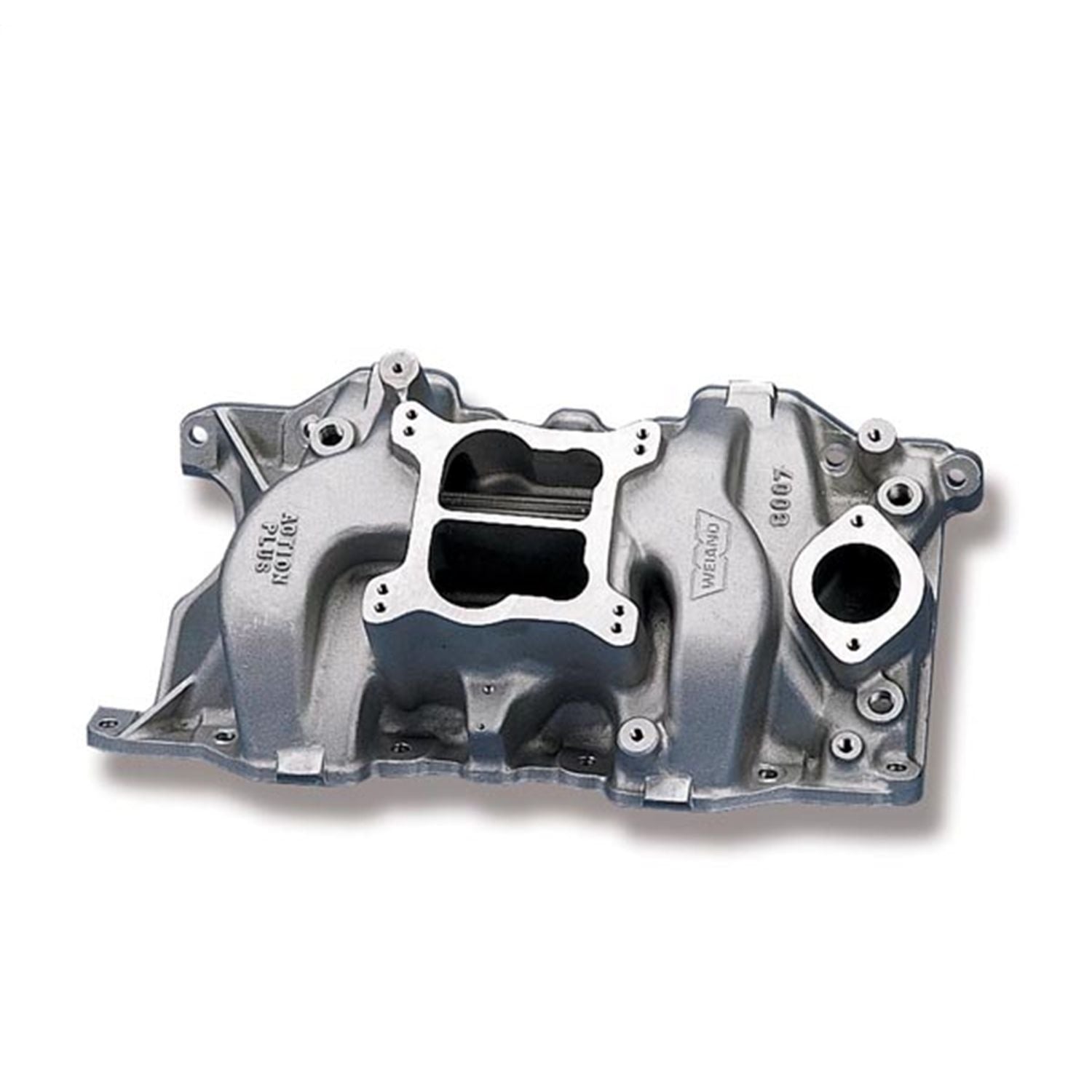

Action +Plus Intake Manifold

This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! ** Square bore carburetors may require plate P/N 9006 to seal properly. Rotary A/C compressor will not clear on 1978 and later applications. The water cross over has 3/4 in. NPT x 1; 3/8 in. NPT x 2; 1/8 in. NPT x 1. The Manifold also has a 3/8 in. NPT Vacuum Port.

• Height Front 4.88 in.; Rear 5.94 in.
• Port Size 1.96 in. Height x 1.00 in. Width
• High Rise/Dual Plane Design For Maximum Torque
• Permanent Mold Casting Process
• Lighter/Smoother/Better Looking/Consistent Casting
• Dyno Proven To Make 25hp Over Competition
• Fully CNC Machined For A Perfect Fit
• Square Bore Carburetor Flange
• Exhaust Crossover For Improved Street Drivability

Attributes:

• GTIN: 00032474800701
• Brand Name: Weiand
• Rear Height: 5.940 in.
• RPM Range: Idle-6000
• Usage: Street/Strip
• WARNING CA Proposition 65: No
• Barrel: Four
• Construction: Cast
• Cylinder Head Type: Standard
• Emission: Without EGR
• Engine Make/Size: Chrysler Small Block V8
• Finish: Satin
• Front Height: 4.880 in.
• Fuel System Type: Carb
• Manifold Type: High Rise
• Number of Carbs: One
• Position: Lower

Extended Information:

• Country of Origin: China
• Emissions : Electronically Announced
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each:
• Package UOM:
• Dimension: 22.5000 x 14.3000 x 7.1000 inches
• Weight: 21.7600 lb
