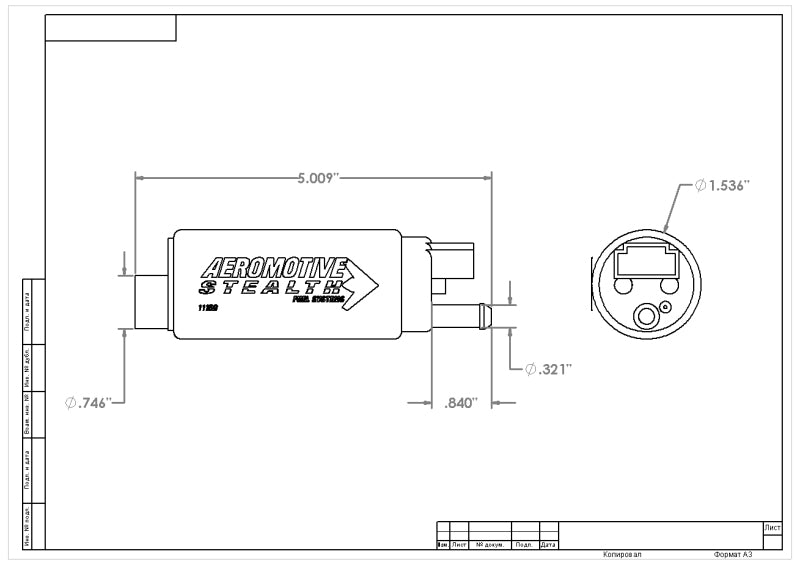

Technical Drawing
Photo - in package
User 5
User 9
User 4

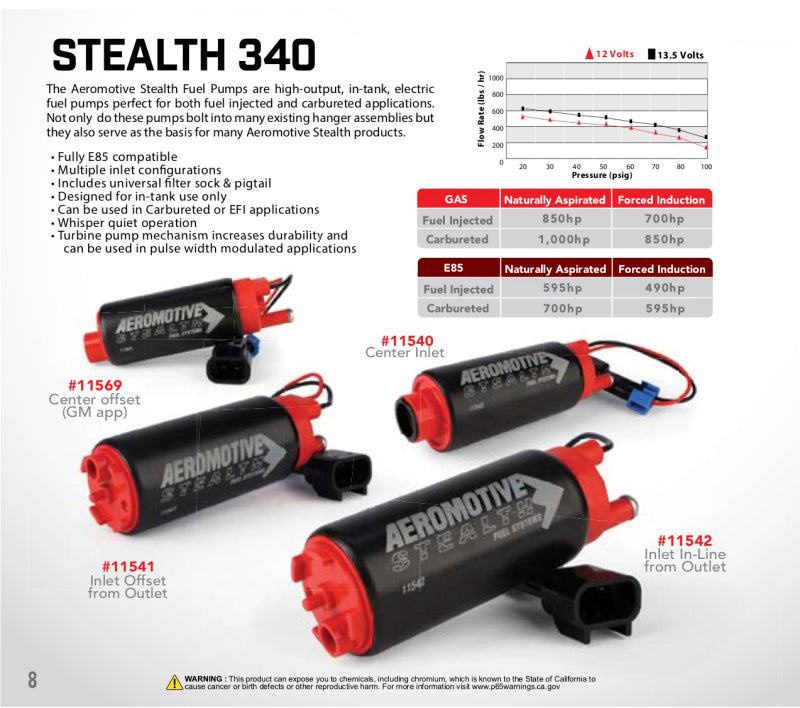

Brochure - A general brochure describing a brand, company, product line. If brochure in question is for a specific product, use code PDB.
Photo - out of package

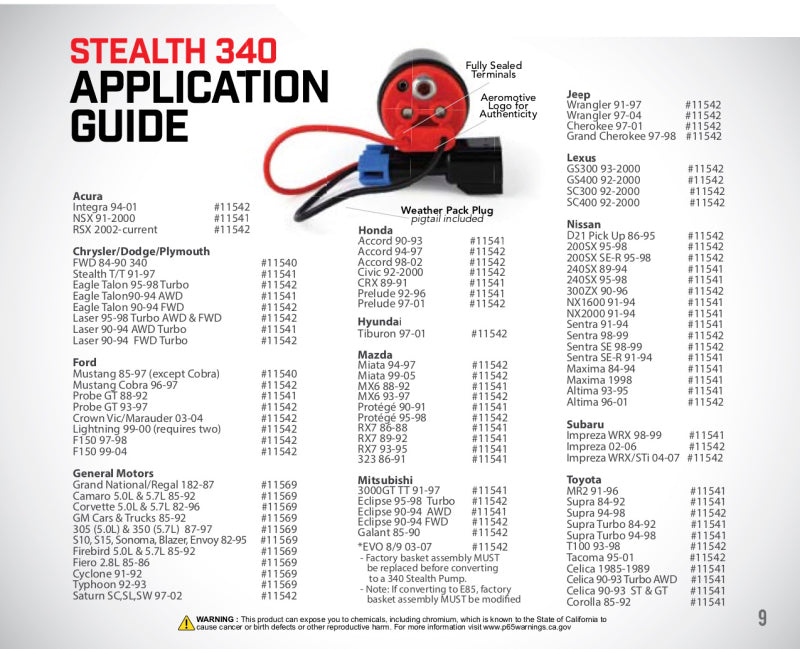

Application Guide

Aeromotive 340 Series Stealth In-Tank E85 Fuel Pump - Center Inlet - Offset - GM applications -

$162.50 USD
By Aeromotive
SKU: AER11569
View details

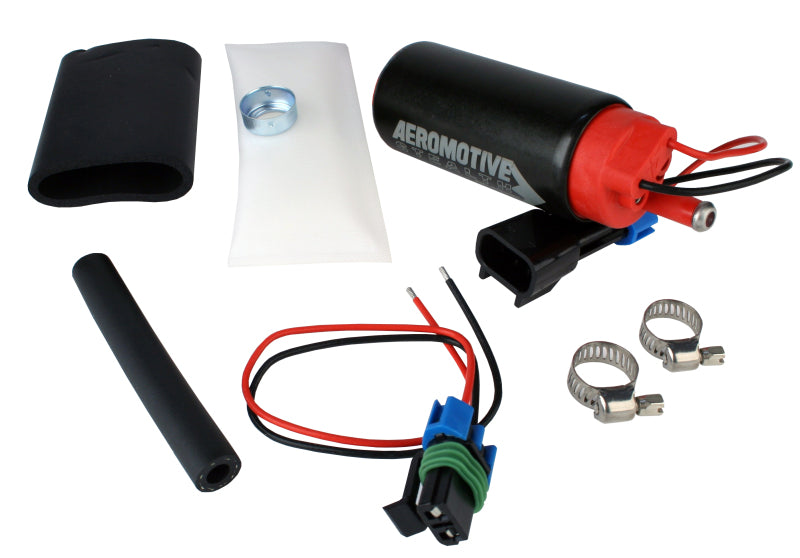

GM specific applications. The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That?s over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications. Fits most vehicles where popular aftermarket pumps are applicable. Center Inlet. E85 Compatible. OEM 39mm Body. Includes universal filter sock. Designed for in-tank use only. Can be used in Carbureted or EFI applications. Turbine pump mechanism increases durability and can be used in pulse modulated applications. P/N 11569 Includes: 340 Stealth Pump, Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet). Supersedes P/N 11169. Installation Instructions Installation Instructions This Part Fits: Year Make Model Submodel 1982-1987 Buick Regal Base 1982-1983 Buick Regal Estate Wagon 1987 Buick Regal GNX 1984-1987 Buick Regal Grand National 1982-1987 Buick Regal Limited 1982 Buick Regal Limited Turbo 1982 Buick Regal Sport 1983-1986 Buick Regal T-Type 1988 Chevrolet Camaro Base 1985-1986 Chevrolet Camaro Berlinetta 1985-1990 Chevrolet Camaro Iroc-Z 1987 Chevrolet Camaro LT 1989-1992 Chevrolet Camaro RS 1992 Chevrolet Camaro RS Heritage Edition 1985-1987 Chevrolet Camaro Sport 1985-1987,1991-1992 Chevrolet Camaro Z28 1992 Chevrolet Camaro Z28 Heritage Edition 1988 Chevrolet Corvette 35th Anniversary Edition 1993 Chevrolet…
