Auto-Flex™ Hose Assembly

$24.14 USD $26.82

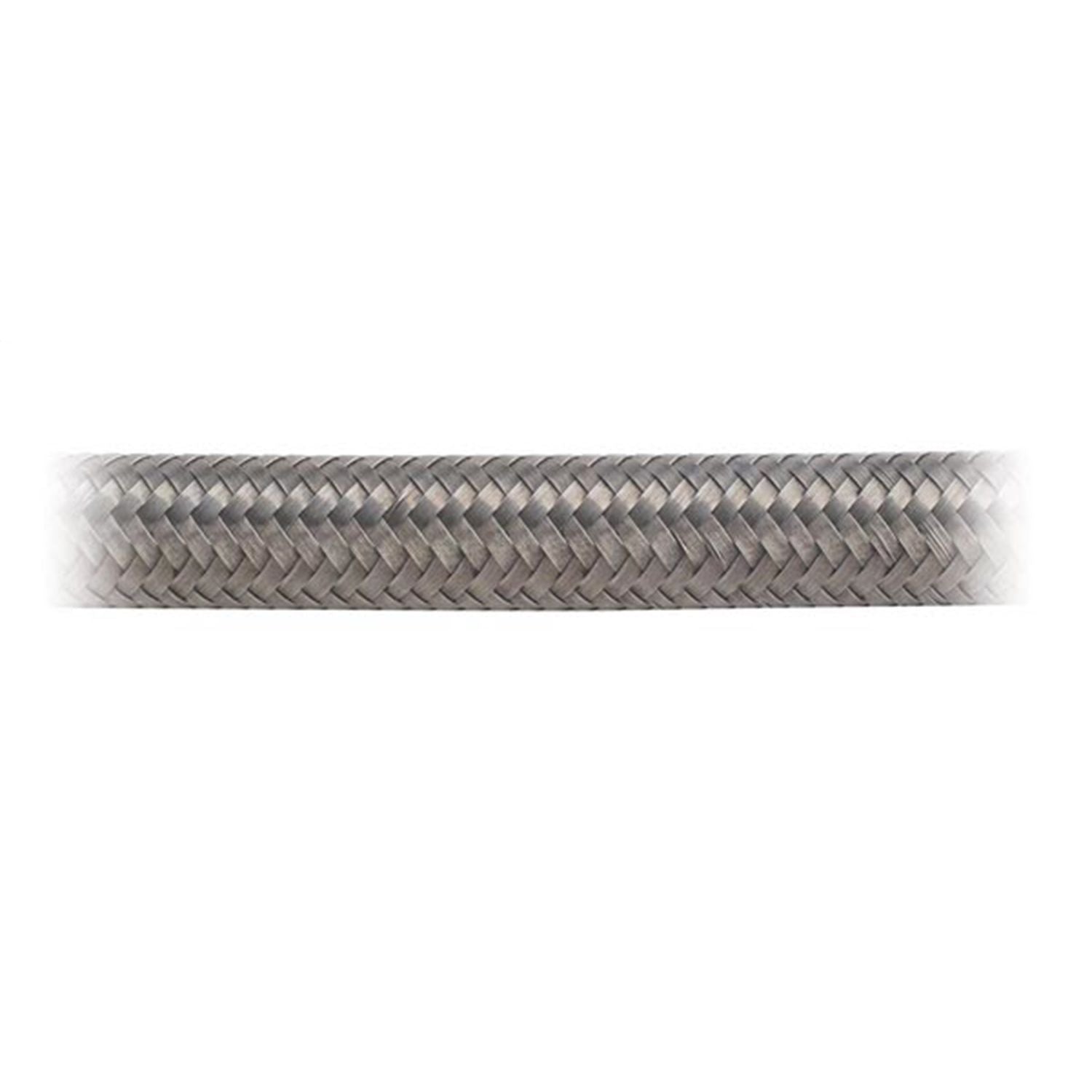

A stainless braided hose at a price competitive with the imports. Earl's Auto Flex(TM) HTE stainless braid– protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's Auto Flex(TM) HTE hose features a recommended temperature range and maximum operating pressure equal to our premium quality perform-O flex hose, at a much better price. A partial coverage textile inner braid is imbedded in the HTE liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced HTE liner. Continuous use temperature rating is negative 40 to 300 degrees Fahrenheit. Auto–Flex hose is intended for use with Swivel–Seal, Auto–Fit and Auto–Mate hose ends only. No other Earl's hose ends are intended for use with Auto–Flex hose. The use of other manufacturers hose ends is not recommended.
  • Stainless Braid
  • Protects Synthetic Rubber Hose
  • Competitive Price
  • Meets USA Specifications
  • Clean and Fast Flowing
  • Textile Braid In Hose Liner
  • Desirable Flexibility

Additional Attributes:

  • GTIN: 00021432480130
  • Color: Silver
  • Compatible Hose End: Econ-O-Fit
  • Fluid Type: Automatic Transmission Fluid
  • Hose Length: Bulk
  • Hose Outer Material: Stainless Steel Braided
  • Hose Size: 18AN
  • Inside Diameter: 0.985 in. to 1.040 in.
  • Inside Diameter to Outside Diameter Concentricity: 0.020 in.
  • Material: Braided Stainless Steel
  • Maximum Continuous Length: 30 ft.
  • Maximum Working PSI: 300
  • Minimum Bend Radius: 7.500 in.
  • Outside Diameter: 1.250 in. to 1.312 in.
  • Product Length: N/A
  • Size: -18AN
  • Submersible in Fuel: No
  • Temperature: -40-350° F
  • Vacuum: 0-22 in. Hg
  • WARNING CA Proposition 65: Yes
  • WARNING CA Proposition 65 Message: WARNING: Cancer and Reproductive Harm -

Extened Information:

  • Emissions : Emission verification to be determined in ACES, vehicle application data.
  • Life Cycle Status: Available To Order


  • Quantity of Each:
  • Package UOM:
  • Dimension: 12.0000 x 1.3100 x 1.3100 inches
