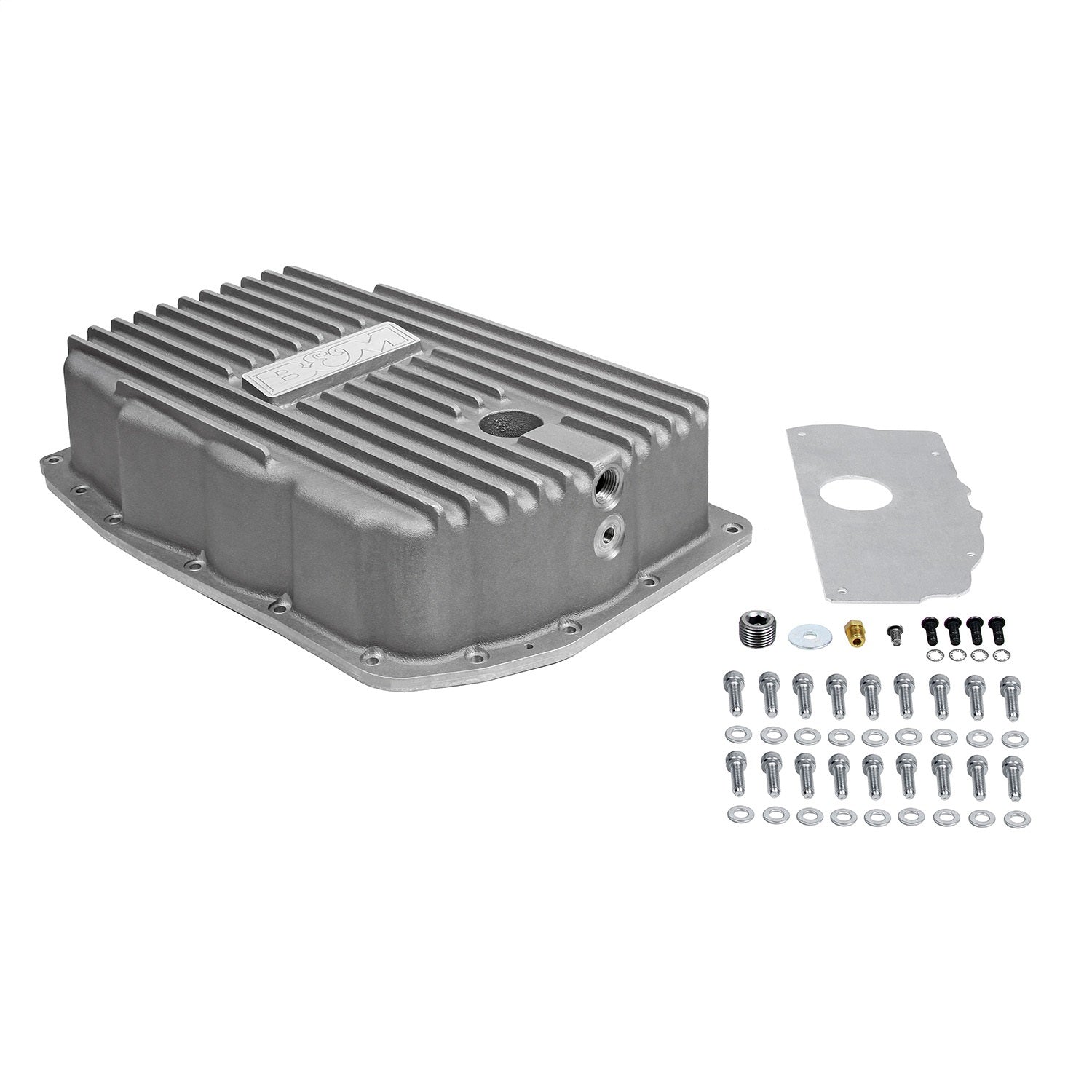

B&M 70391 Cast Aluminum Deep Transmission Pan Camaro SS (Automatic)

The B&M Camaro SS (6L80 Automatic Transmission) Cast Aluminum Deep Trans Pan was designed to add 1.8 US quarts of additional fluid capacity to the 6L80 transmission. It boasts an over 30 percent improved cooling efficiency over the stock transmission pan by using a proprietary K-Alloy cast aluminum with internal and external cooling fins for increased surface area and heat transfer. The pan includes a magnetic drain plug, temperature sensor port, stock magnet hold down, and stainless steel mounting hardware. The cooling fins of the pan sit just 3/4 In. lower than the stock pan to take advantage of cooler air passing underneath the vehicle. Heat is the number one enemy to any automatic transmission and this B&M Cast Aluminum Deep Pan will help keep heat under control.

• Additional Oil Capacity
• More Cooling Ability
• No Dipstick Modification
• Some Include Fluid Pickup Extension
• Built-In Drain Plugs
• Cast Aluminum

Attributes:

• GTIN: 00019695703912
• Brand Name: B&M
• Additional Fluid Capacity: 1.80 qt.
• Color: Gray
• Cooling Efficiency: 30% over stock
• Drain Plug Included: Yes
• Filter Included: No
• Gasket Or Seal Included: Yes
• Material: K-Alloy SP (Proprietary AluminumAlloy)
• Mounting Hardware Included: Yes
• Package Contents: Pan & Hardware (mounting bolts & plugs) - requires gasket, filter, and magnet
• Pan Hang Over Stock: 3/4 in
• Style: Deep
• Temperature Sensor Bung: Yes
• Trans Model: GM- 6L80E (Auto) 6 Speed
• WARNING CA Proposition 65: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23.0000 x 15.8000 x 5.1000 inches
• Weight: 10.7500 lb
