$63.60 off

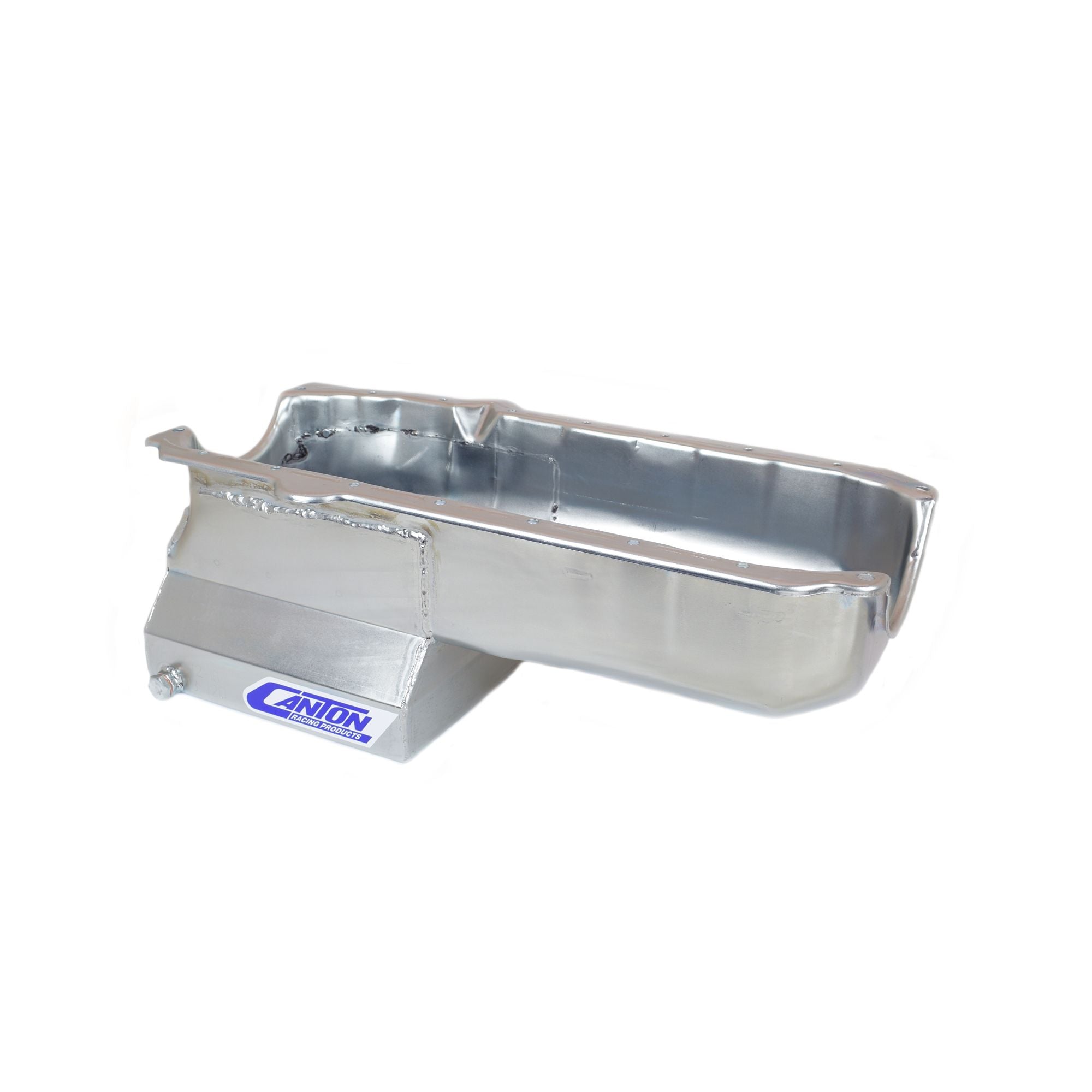

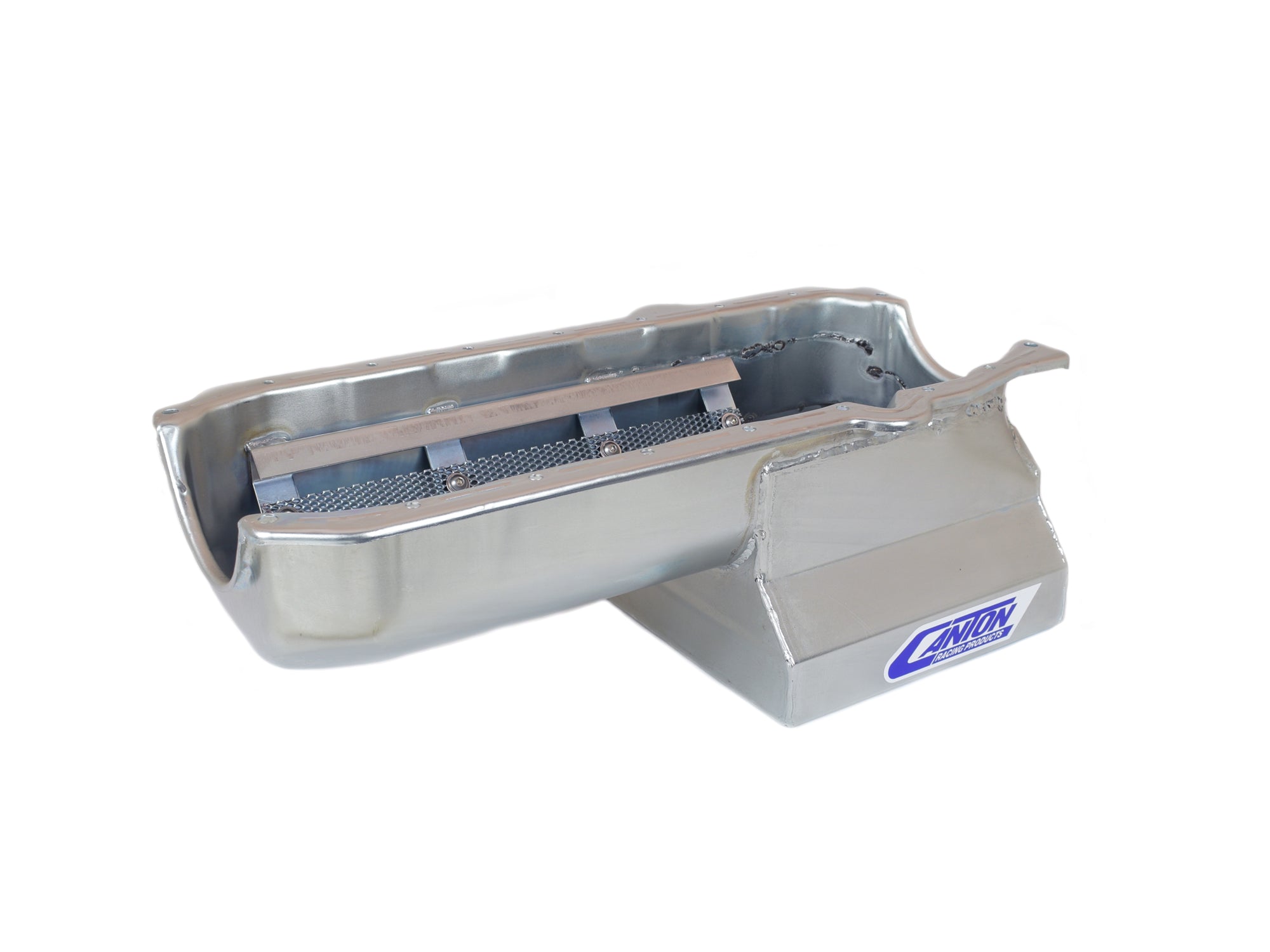

Canton 13-120 Oil Pan Small Block Chevy Pre-1980 Deep T Sump Drag Race Pan
$318.00 USD
$381.60
By Canton
SKU: BGTF-13-120
This Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity. This pan requires a short oil filter, and one of our pickups. Will work with stock or aftermarket starters.
- 7 qt System Capacity
- Clears 3.875" Stroke
- Drag Race Trap Door Baffle System
- Screen Windage Tray
- Crank Scraper
- Magnetic Drain Plug
Attributes:
- GTIN: 00887753711649
- Brand Name: Canton
- Baffled: Yes
- Kicked Out: Yes
- Sump Width: 10.5 inches
- Sump Depth: 7.5 inches
- Stoke: 3.875 inches
- Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
- Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
- Recommended Accessory 4: 20-023 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
- Recommended Accessory 3: 20-020 - Pickup for Small Block High Volume M55HV Pump
- Recommended Accessory 2: 20-013 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
- Recommended Accessory 1: 20-010 - Pickup for Small Block Standard Volume Pumps M55 & M55A
- Pickup Included: No
- Material: 16 Gauge Steel
- Hardware Included: No
- Capacity: 6 Quart System Capacity
- Gasket or Seal Included: No
- Finish: Silver Plating
- Feature 5: Magnetic Drain Plug
- Feature 4: Trap Door Baffle For Oil Control
- Feature 3: Built in Crank Scraper
- Feature 2: Removable Screen Windage Tray
- Feature 1: Features Competition Oil Recovery System
- Engine: For S.B. Chevy Pre-1980 Blocks
- Drain Plug Included: Yes
- Dipstick Port: No
- Crank Scraper Included: Yes
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: United States
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 15 lb
PDF:
Pan Install - Standard Part B
