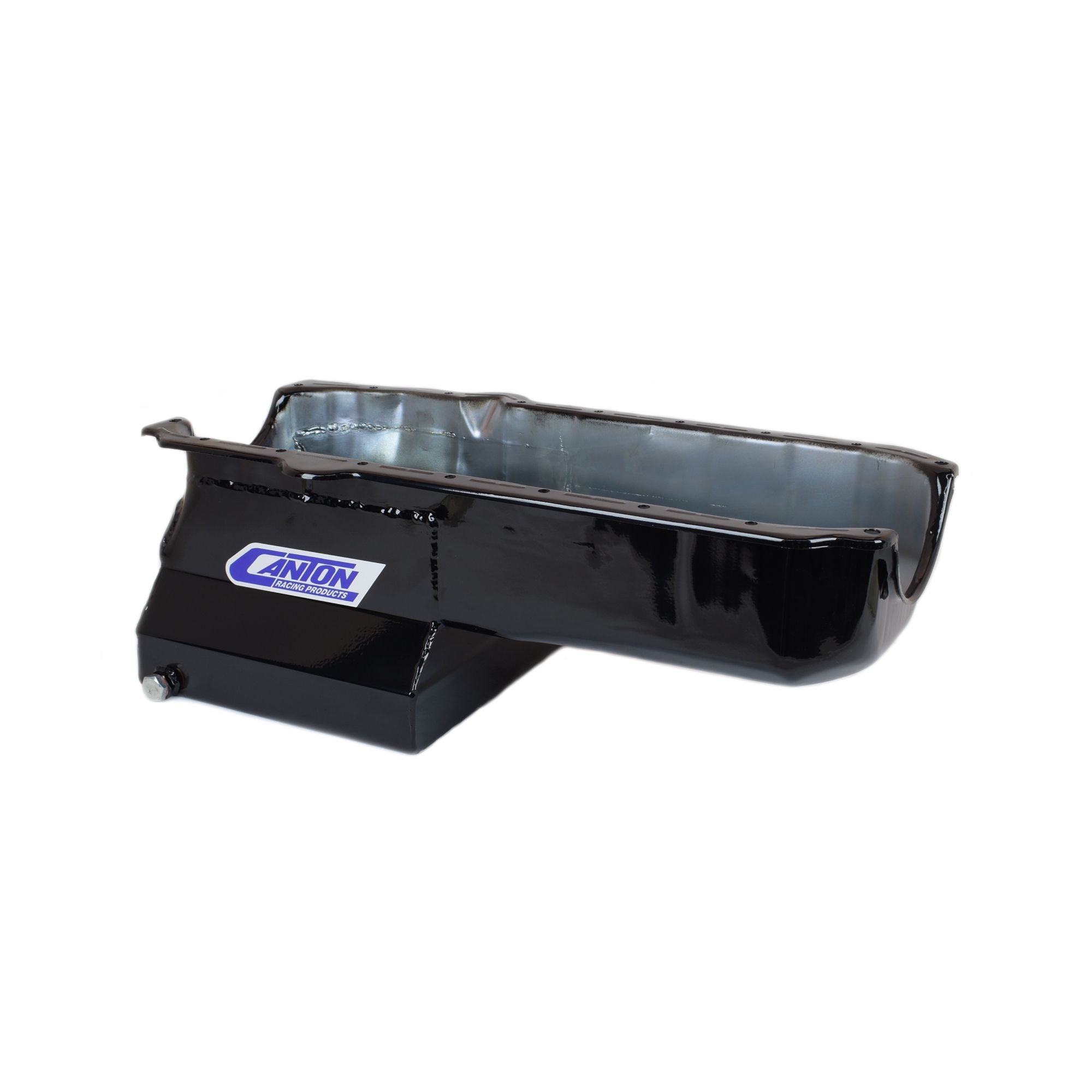

Canton 13-120BLK Oil Pan Small Block Chevy Pre-1980 Deep T Sump Drag Race Pan

This black powder coat Small Block Chevy "T" sump drag race oil pan is for pre-?80 blocks with a left side dipstick. It has a 7-1/2" deep, 9-1/2" long by 10-1/2" wide sump and an 7 qt system capacity. This pan requires a short oil filter, and one of our pickups. Will work with stock or aftermarket starters.

• 7 qt System Capacity
• Clears 3.875" Stroke
• Drag Race Trap Door Baffle System
• Screen Windage Tray
• Crank Scraper
• Magnetic Drain Plug

Attributes:

• GTIN: 00887753711656
• Brand Name: Canton
• Baffled: Yes
• Kicked Out: Yes
• Sump Width: 10.5 inches
• Sump Depth: 7.5 inches
• Stoke: 3.875 inches
• Recommended Accessory 6: 88-100 ? SBC Pre ?85 Oil Pan Gasket
• Recommended Accessory 5: 20-021 - Bolt-On Pickup for Melling M10555 Pumps
• Recommended Accessory 4: 20-023 - Pickup for Small Block High Volume M155HV Pump w/ 3/4" Inlet
• Recommended Accessory 3: 20-020 - Pickup for Small Block High Volume M55HV Pump
• Recommended Accessory 2: 20-013 - Pickup for Small Block Standard Volume M155 Pump with 3/4" Inlet
• Recommended Accessory 1: 20-010 - Pickup for Small Block Standard Volume Pumps M55 & M55A
• Pickup Included: No
• Material: 16 Gauge Steel
• Hardware Included: No
• Capacity: 6 Quart System Capacity
• Gasket or Seal Included: No
• Finish: Black Powdercoat
• Feature 5: Magnetic Drain Plug
• Feature 4: Trap Door Baffle For Oil Control
• Feature 3: Built in Crank Scraper
• Feature 2: Removable Screen Windage Tray
• Feature 1: Features Competition Oil Recovery System
• Engine: For S.B. Chevy Pre-1980 Blocks
• Drain Plug Included: Yes
• Dipstick Port: No
• Crank Scraper Included: Yes
• Windage Tray Included: Yes

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 23 x 12 x 9 inches
• Weight: 15 lb
