$89.60 off

Canton 13-270 Oil Pan For GM LS1 LS6 Steel 1998 and Up F-Body Drag Race Pan

$448.00 USD $537.60
By Canton
SKU: BGTF-13-270
Minus Plus
More details Right

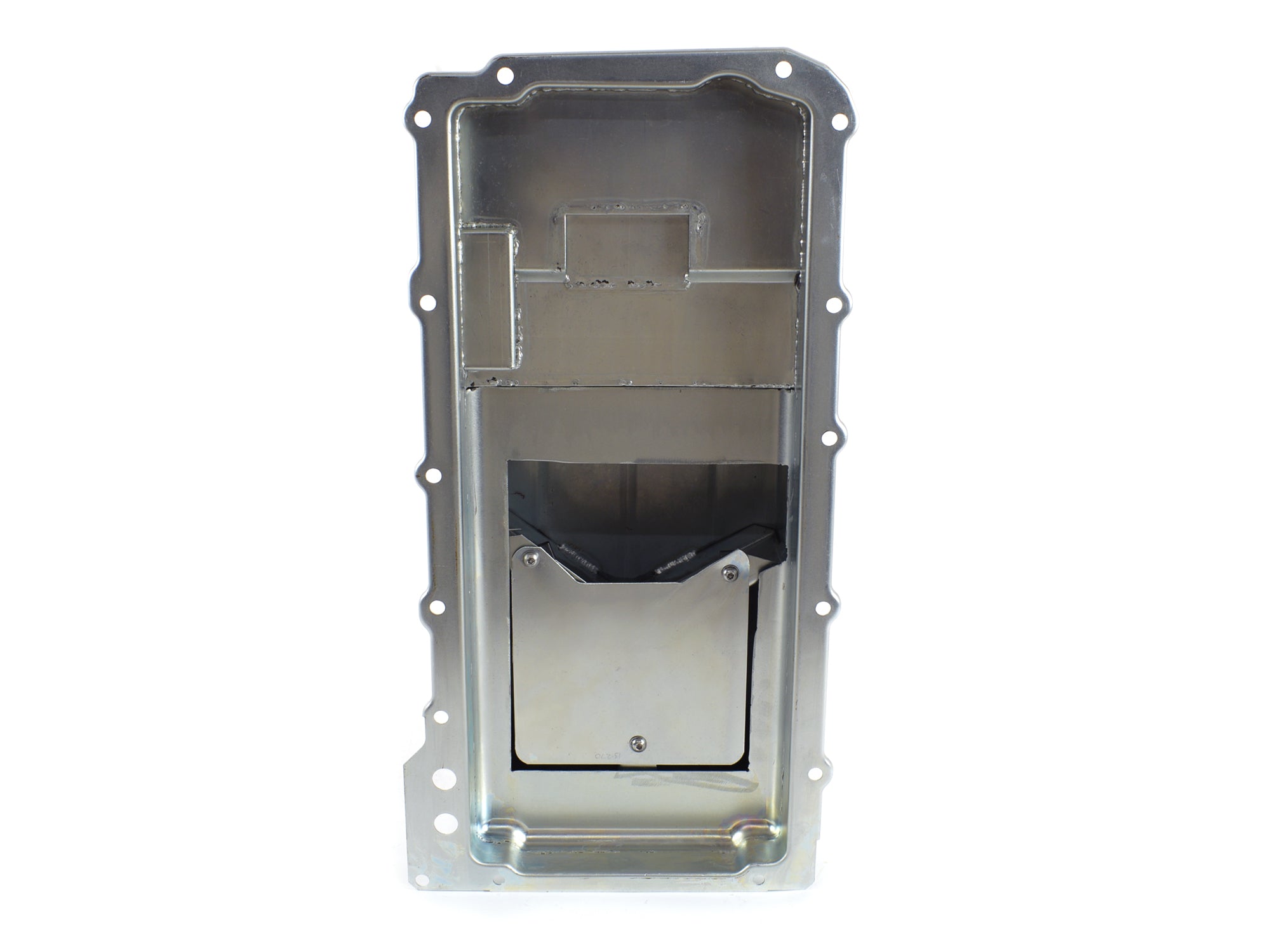

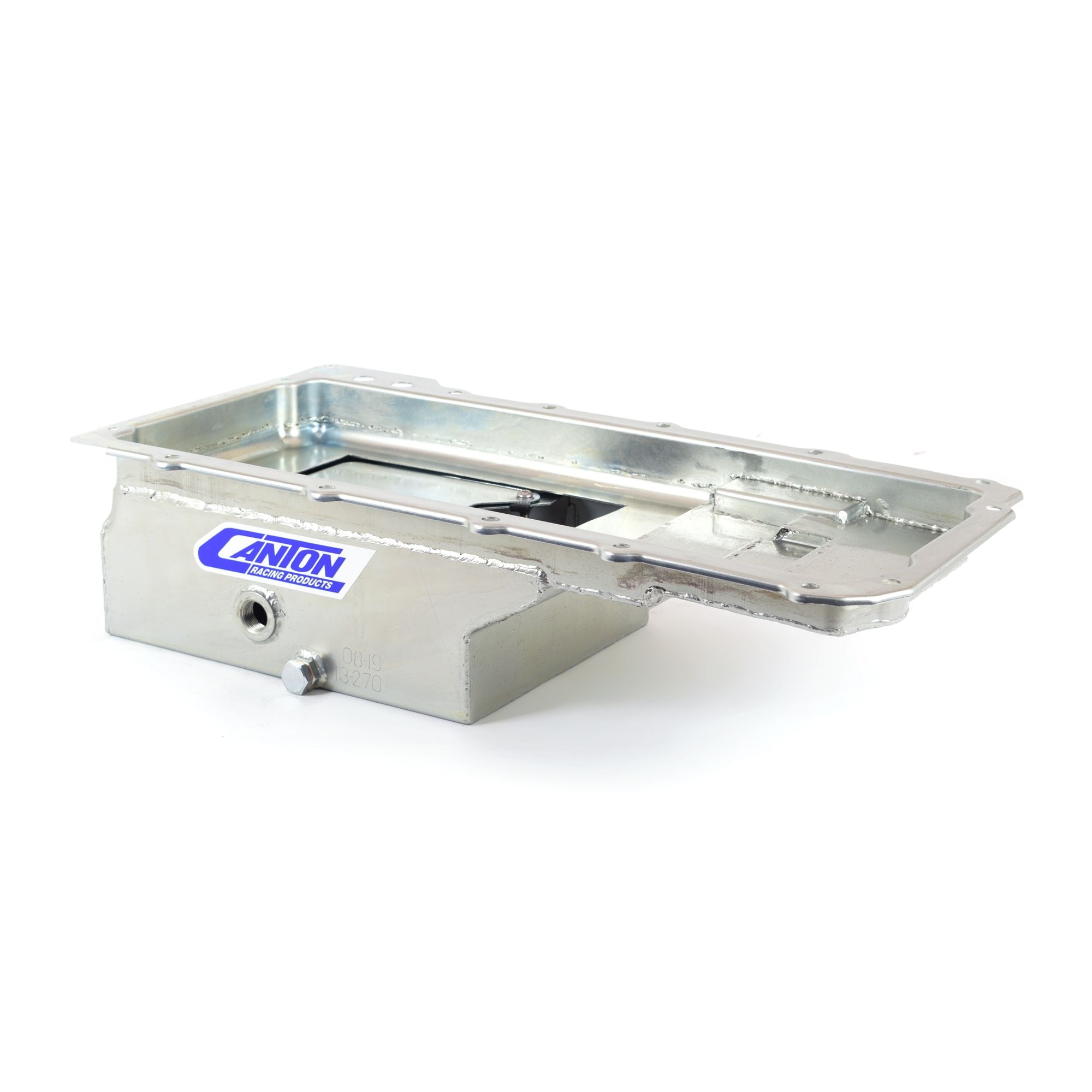

This pan is for GM LS1/LS6 powered cars that need a rear sump drag race oil pan and owners of 98+ F-Body chassis looking to install a GM LS1/LS6 engine in their car.
  • 6.5 qt System Capacity
  • Drag Race Trap Door Baffle Assembly
  • Removable Windage Anti-Slosh Baffle
  • Provision for 20mm oil temperature sensor
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711687
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: No
  • Stoke: 3.62 inches
  • Recommended Accessory 9: 21-870 - Aluminum Flywheel Cover
  • Recommended Accessory 8: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 7: 22-405 - 20mm Plug(needed if Not using low oil sender
  • Recommended Accessory 6: 22-620 - Billet Aluminum Spin-on Filter Adapter
  • Recommended Accessory 5: 22-631 - LS1 Pan Mounted Spin-on Filter Mount
  • Recommended Accessory 4: 22-632 - LS1 90 Degree Remote Filter Adapter
  • Recommended Accessory 3: 22-630 - LS1 Remote Filter Adapter
  • Recommended Accessory 2: 22-302 - GM LS Oil Pan Stud Kit
  • Recommended Accessory 1: 21-870 - LS flywheel cover
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 6 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 7: To Use With Canton Filter Adapter or Filter Mount
  • Feature 6: To Use With Canton #22-405 20mm Plug If Not Using Oil Sender Port
  • Feature 5: Can Be Used With OEM Windage Tray #12558253
  • Feature 4: Magnetic Drain Plug
  • Feature 3: 20mm Port for GM Low Oil Warning Sender
  • Feature 2: Bolt On Windage / Anti-Slosh Baffle For Oil Control
  • Feature 1: Double Trap Door Baffle For Oil Control
  • Engine: For GM LS Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: No
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26.5 x 1.5 x 10 inches
  • Weight: 12.8 lb
