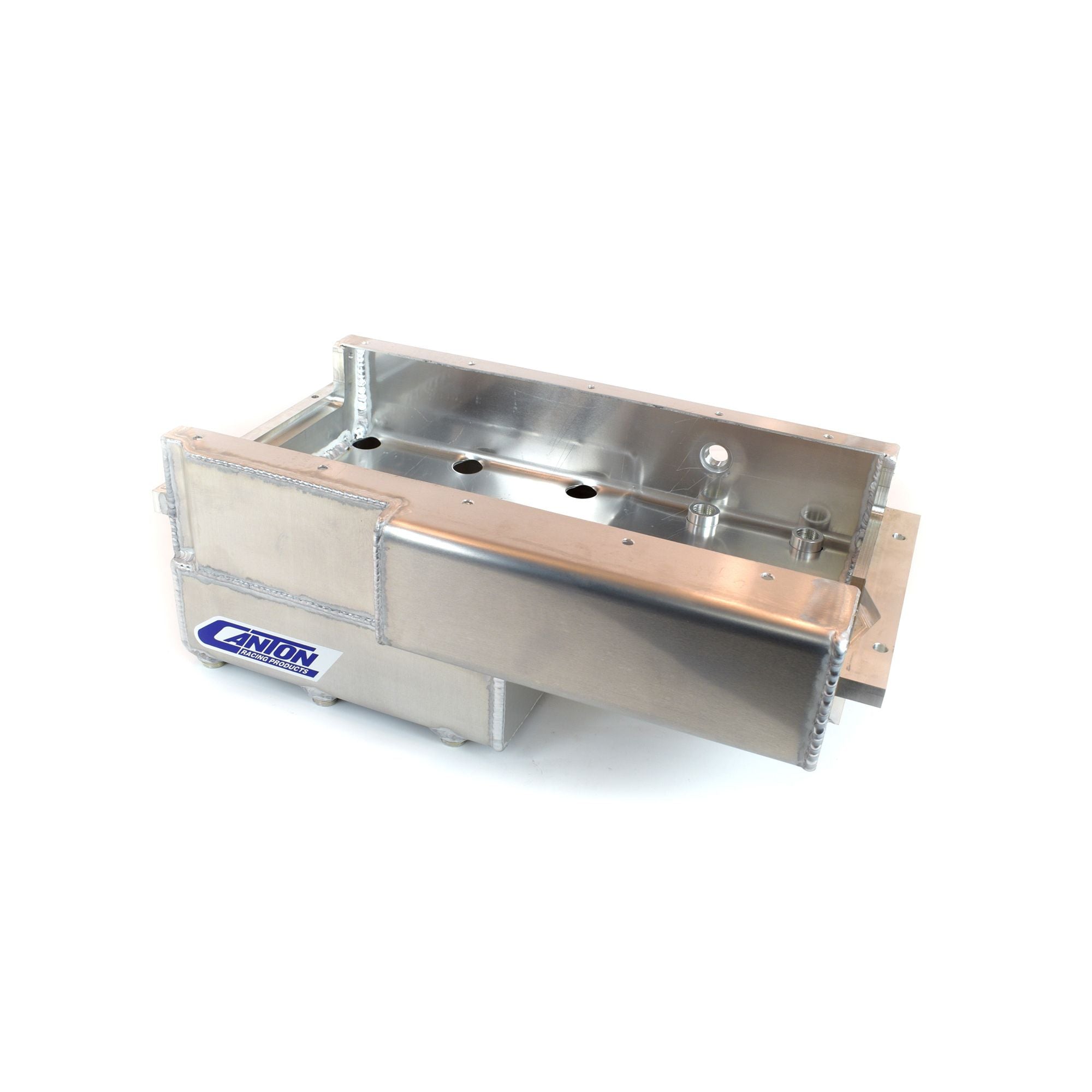

Canton 13-280A Oil Pan Dart LS Next Rear Sump Drag Race Pan

Our LS NEXT rear sump drag pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our billet end caps offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-Style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our drag racing baffle is designed to control the oil in street and strip applications of hard acceleration and deceleration.

• 5.25" Deep from rear engine cover, 7.25" Deep from rail 11" long by 11" wide sump
• 6.5 qt Capacity
• Pro Style Oil Recovery Pouch
• Machined Billet Front & Rear Seals
• Built in Slosh Baffle
• Drag Race Trap Door Baffle System
• Magnetic Drain Plug
• Provision for pan mounted dipstick

Attributes:

• GTIN: 00887753711755
• Brand Name: Canton
• Baffled: Yes
• Finish: Raw Aluminum
• Recommended Accessory 4: 22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
• Recommended Accessory 3: 22-304 - LS NEXT Oil Pan Stud Kit
• Recommended Accessory 2: 21-870 - LS Flywheel Cover for T56 Bellhousing
• Recommended Accessory 1: 13-281 - LS Next Pickup for #13-280
• Pickup Included: No
• Material: .100 Aluminum
• Kicked Out: No
• Hardware Included: No
• Gasket or Seal Included: No
• Feature 6: Magnetic Drain Plug
• Capacity: 6.5 Quarts
• Feature 5: Provision For Pan Mounted Dipstick
• Feature 4: Removable Windage/Anti-Slosh Baffle
• Feature 3: Double Trap Door Baffles
• Feature 2: Machined Billet Front & Rear Seals
• Feature 1: Pro-Style Recovery Pouch
• Engine: Dart LS Next
• Drain Plug Included: Yes
• Dipstick Port: Yes
• Crank Scraper Included: No
• Windage Tray Included: No

Extended Information:

• Country of Origin: United States
• Emissions : Released
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1
• Package UOM: EA
• Dimension: 25 x 16 x 9 inches
• Weight: 16 lb
