Canton 13-334 Oil Pan Big Block Chevy Drag Race Pan For Aftermarket Starter

$648.00 USD $777.60
By Canton
SKU: BGTF-13-334
Minus Plus
More details Right

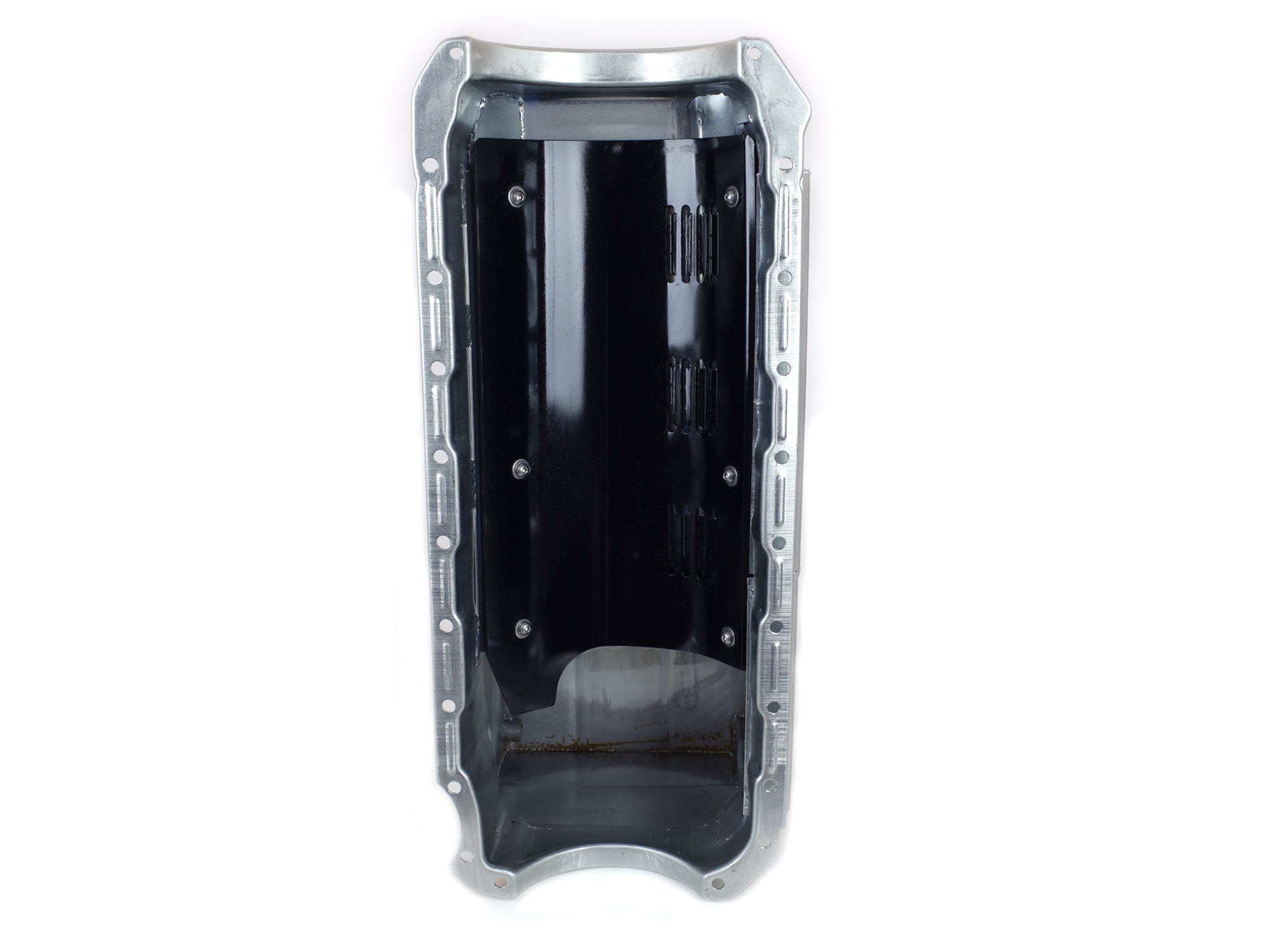

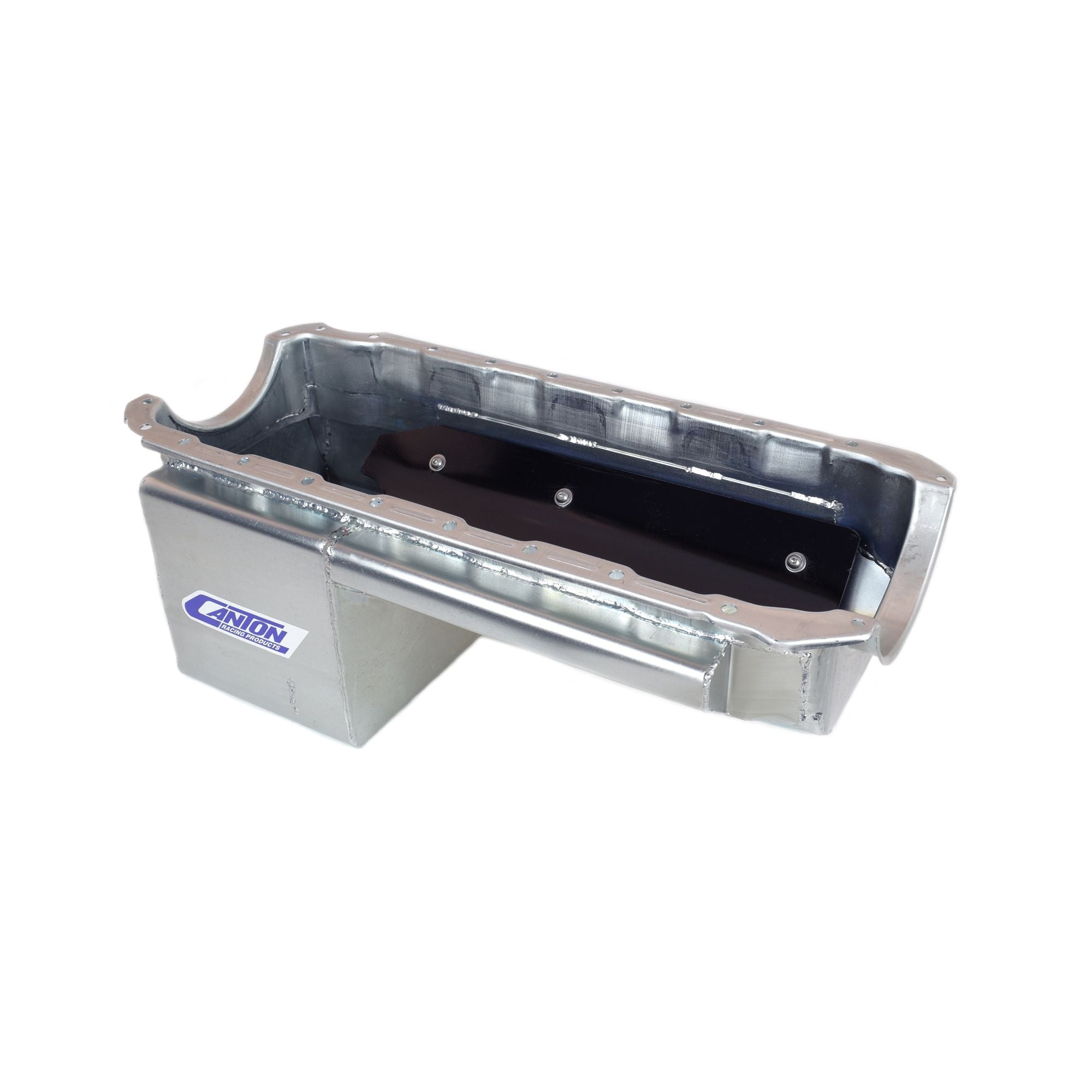

This BBC drag race power series oil pan is for Mark 4 blocks. It has a 9" deep by 9" long and 9" wide sump and a 7 quart system capacity. It is designed to fit most stock chassis. Will work with aftermarket offset starters. This pan requires our 20-190 pickup.
  • 7 qt System Capacity
  • Drag Race Trap Door Baffle System
  • Oil Recovery Pouch
  • Designed For Stock Style Starter Clearance
  • Bolt In Louvered Windage Tray
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711816
  • Brand Name: Canton
  • Baffled: Yes
  • Gasket or Seal Included: No
  • Stoke: 4.5 inches
  • Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
  • Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4? N.P.T. Fitting
  • Recommended Accessory 1: 20-190 - Pickup for BBC Pumps
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Kicked Out: No
  • Hardware Included: No
  • Finish: Silver Plating
  • Capacity: 7 Quart System Capacity
  • Feature 6: Magnetic Drain Plug
  • Feature 5: Provision for Canton Pan Mounted Dipstick
  • Feature 4: Trap Door Baffle For Oil Control
  • Feature 3: Removable Louvered Windage Tray
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For B.B. Chevy Mark 4 Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 19 lb
