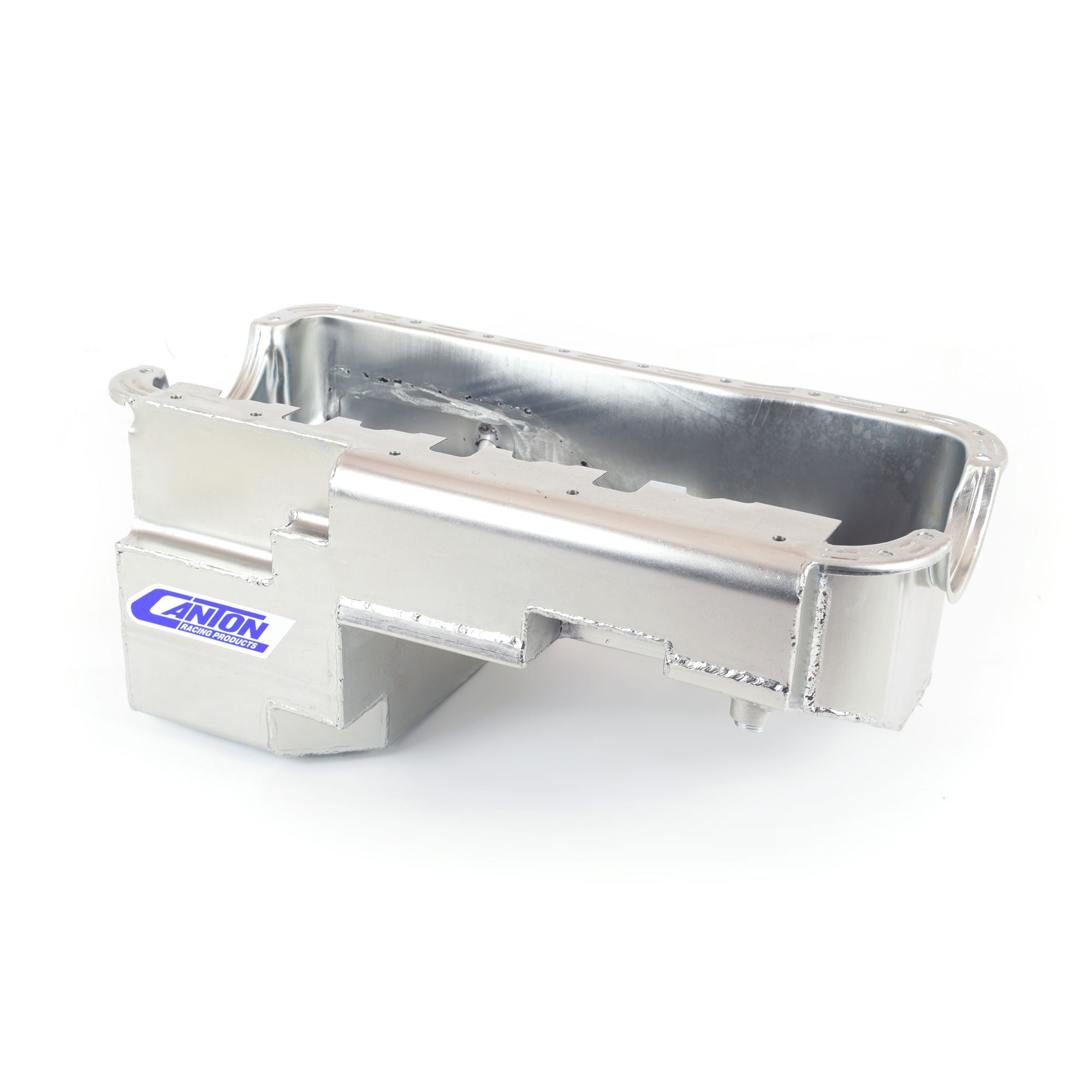

Canton 13-622 Oil Pan Ford 289-302 Fox Body Drag Race Front Sump Pro Power Pan

$575.00 USD $690.00
By Canton
SKU: BGTF-13-622
Minus Plus
More details Right
This Fox Body drag race pro-style power pan is for Ford 289-302 blocks. It has a 9" deep by 7" long by 11" wide rear sump and a 7 qt. system capacity. The front sump is 6-1/2" deep. The large oil recovery pouch requires the right side mounting bolts to be accessed through plugs in the bottom of the pan. Works with long tube headers & late model stock starter.
  • Oil Recovery Pouch
  • 7 qt System Capacity
  • Works With Late Model Starter
  • Pro Style Oil Recovery Pouch
  • Slosh Baffle
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

Attributes:

  • GTIN: 00887753711885
  • Brand Name: Canton
  • Baffled: Yes
  • Pickup Included: No
  • Sump Width: 11 inches
  • Sump Depth: 9 inches
  • Stoke: 3.4 inches
  • Recommended Accessory 9: 88-600 - Small Block Ford 289-302 Four Piece Oil Pan Gasket
  • Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit with 1/4" N.P.T. Fitting
  • Recommended Accessory 7: 20-850 - Universal Dipstick Kit with 1/4" N.P.T Fitting
  • Recommended Accessory 6: 20-953 - Oil Pump Pickup Stud for R302 Based Engines
  • Recommended Accessory 5: 20-950 - Oil Pump Pickup Stud for 302 Based Engines
  • Recommended Accessory 4: 20-960 - 302 Windage Tray for 21-060 Main Support
  • Recommended Accessory 3: 15-627 - 3/4" Dia. Pickup for Canton Main Support
  • Recommended Accessory 2: 15-625 - 3/4" Dia. Pickup for Other Steel Main Supports
  • Recommended Accessory 1: 15-621 - 3/4" Dia. Pickup
  • Material: 16 Gauge Steel
  • Capacity: 7 Quart System Capacity
  • Kicked Out: No
  • Hardware Included: No
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 5: Magnetic Drain Plug
  • Feature 4: Provision for Canton Pan Mounted Dipstick
  • Feature 3: Slosh Baffle For Oil Control
  • Feature 2: Recovery Pouch Thins Out Atmosphere of Oil in Crankcase and Frees up Horsepower
  • Feature 1: Pro-Style Oil Recovery Pouch Extends Right Side of Pan Away From Crankshaft
  • Engine: For Ford 302 Blocks
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: No
  • Windage Tray Included: No

Extended Information:

  • Country of Origin: United States
  • Emissions : Released
  • Life Cycle Status: Available To Order

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 26 x 14 x 10 inches
  • Weight: 17 lb
