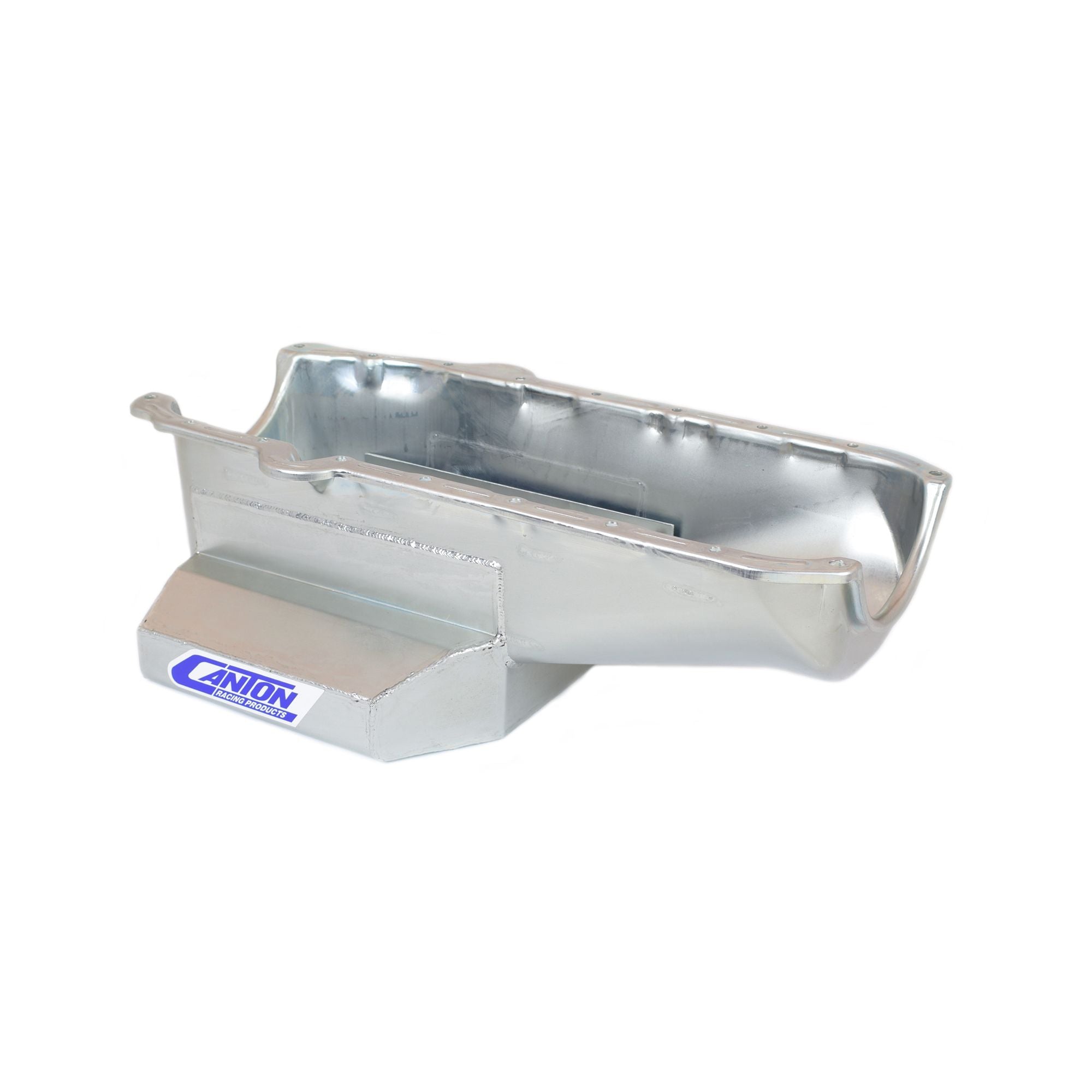

Canton 15-240T Oil Pan Small Block Chevy 1986 and Up Corvette Road Race Pan

$496.00 USD $595.20
By Canton
SKU: BGTF-15-240T
Minus Plus
More details Right

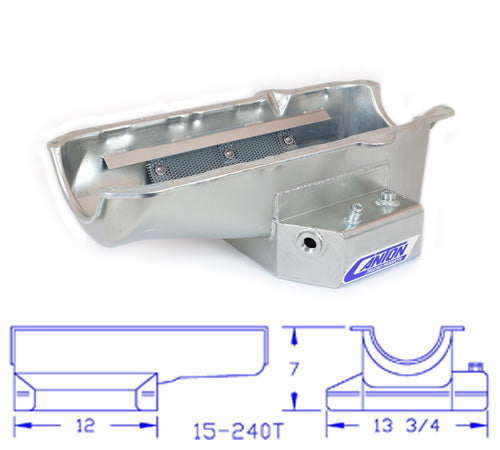

This SBC late Corvette road race pan is for ?86 and newer blocks with one piece seal. It is designed for 84-96 Corvettes, but will fit in early Corvettes as well. It has a 7" deep, 13-3/4" wide, 12" long sump, with a 7 quart system capacity. Will work with stock starter. This pan requires one of our pickups.
  • Five Trap Door Baffles
  • Crank Scraper
  • Built In Screen Windage Tray
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug
  • Includes a 20MM fitting For Low Oil Sensor (22-405 required if not using sender)

Attributes:

  • GTIN: 00887753712165
  • Brand Name: Canton
  • Baffled: Yes
  • Kicked Out: Yes
  • Stoke: 3.75 inches
  • Recommended Accessory 8: 88-100T - SBC 86+ Oil Pan Gasket
  • Recommended Accessory 7: 22-405 - 20MM Plug for Oil Level Sender Port
  • Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
  • Recommended Accessory 4: 20-079 - Pickup for SBC High Volume Oil Pump M155HV with 3/4" Inlet
  • Recommended Accessory 3: 20-074 - Pickup for SBC High Volume Oil Pump M55HV
  • Recommended Accessory 2: 20-049 - Pickup for SBC Standard Volume Oil Pump M155 with 3/4" Inlet
  • Recommended Accessory 1: 20-044 - Pickup for SBC Standard Volume Oil Pumps M55 & M55A
  • Pickup Included: No
  • Material: 16 Gauge Steel
  • Hardware Included: No
  • Capacity: 7 Quart System Capacity
  • Gasket or Seal Included: No
  • Finish: Silver Plating
  • Feature 6: 20mm Fitting for GM Low Oil Warning Sender
  • Feature 5: Provision for Pan Mounted Dipstick
  • Feature 4: 1/2" NPT Temperature Bung
  • Feature 3: Bolt in Windage Tray
  • Feature 2: Crank Scraper
  • Feature 1: Trap Door Baffle for Oil Control
  • Engine: For S.B. Chevy 1986 and newer blocks with one piece seal
  • Drain Plug Included: Yes
  • Dipstick Port: Yes
  • Crank Scraper Included: Yes
  • Windage Tray Included: Yes

Extended Information:

  • Country of Origin: United States
  • Life Cycle Status: Available To Order
  • Emissions : Released

Packing Information:

  • Quantity of Each: 1
  • Package UOM: EA
  • Dimension: 24 x 16 x 10 inches
  • Weight: 17 lb
